Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the following parts:
    • Piston spring (1)
    • Retainer (2)
    • Servo piston (3)
    • O-ring seal (4)
    • Forward servo piston pin (5)
    NOTE: Refer to FASTENER NOTICE .
  2. Install the forward servo gasket, cover, and bolts.

    Tighten

    Tighten the bolts to 24 N.m (18 lb ft).

  3. Install the transmission filter. Refer to Automatic Transmission Fluid/Filter Replacement   .

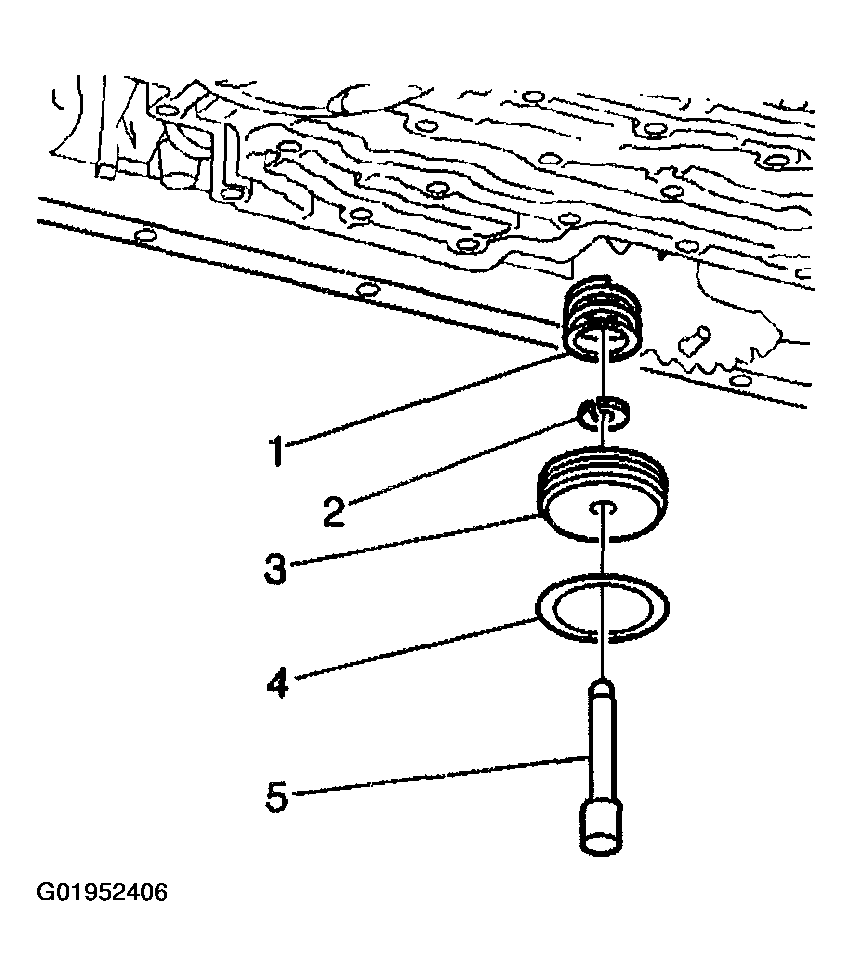

    Fig 1: Forward Servo Piston, Pin, O-Ring Seal, Retainer & Piston Spring
    G01952406Courtesy of GENERAL MOTORS CORP.
