Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator.
  2. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  3. Remove the fill tube bracket nut.
  4. Place a drain pan under the transmission.

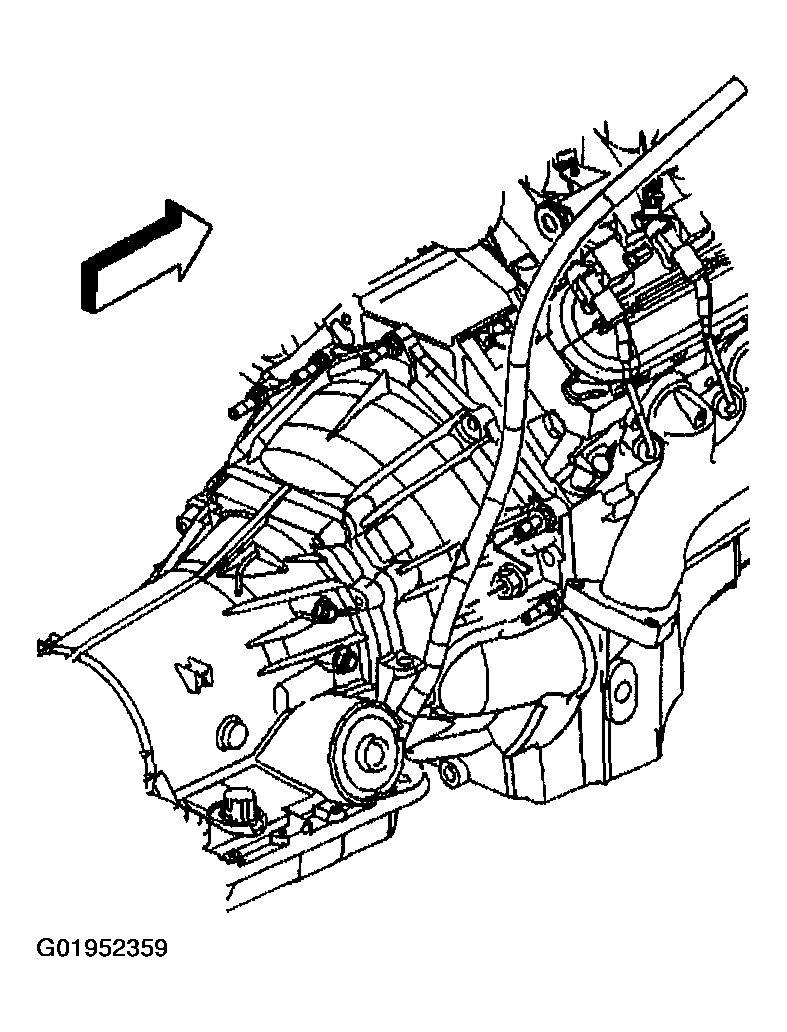

    Fig 1: Removing Fill Tube Bracket Nut
    G01952359Courtesy of GENERAL MOTORS CORP.
  5. Remove the fill tube.
  6. Remove the transmission fill tube seal.

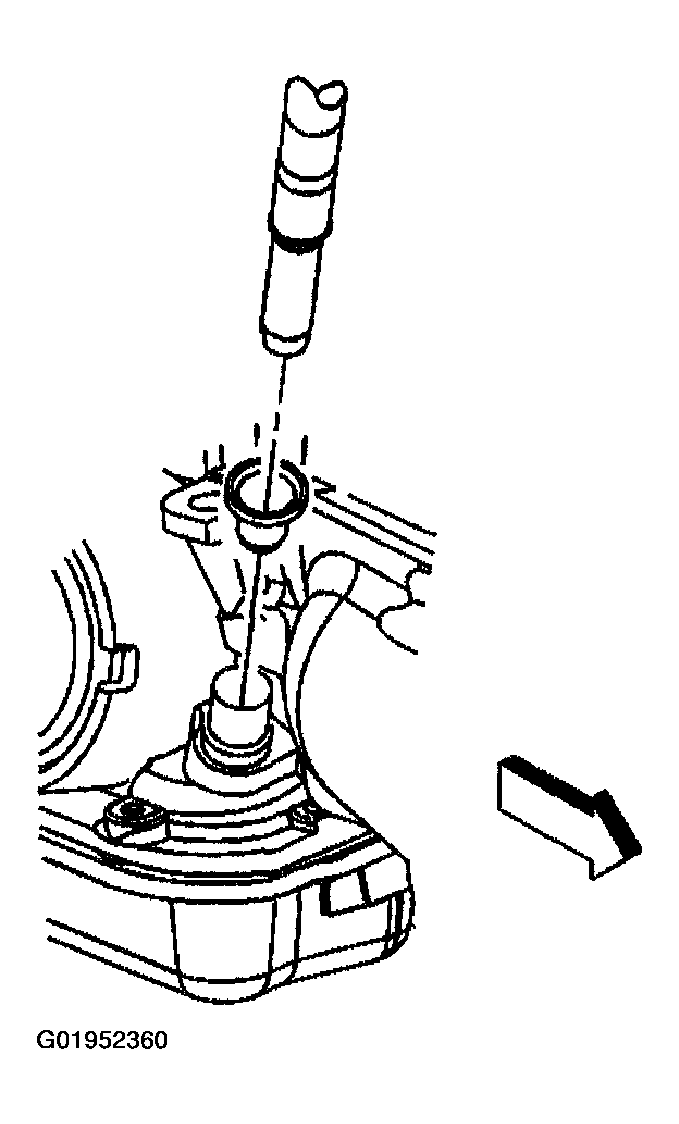

    Fig 2: Removing Transmission Fill Tube & Seal
    G01952360Courtesy of GENERAL MOTORS CORP.
