Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the steering column shift lever to the park position.
  2. Remove the instrument panel knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
  3. Remove the driver's seat. Refer to SEAT REPLACEMENT-FRONT BUCKET .
  4. Pull back the carpet and insulation around the driver's area.
  5. Remove the retainer securing the cable to the steering column.

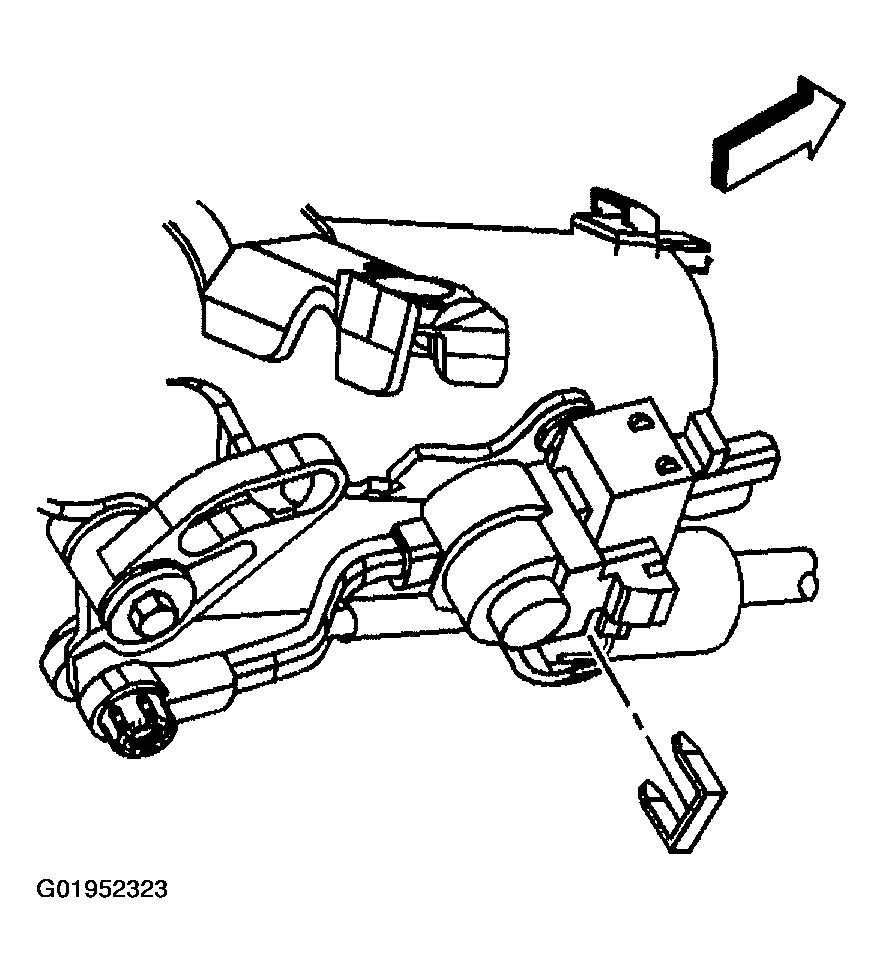

    Fig 1: Removing Retainer Securing Cable To Steering Column
    G01952323Courtesy of GENERAL MOTORS CORP.
  6. Remove the cable end from the steering column ball stud.
  7. Depress the tangs and remove the cable from the steering column bracket.

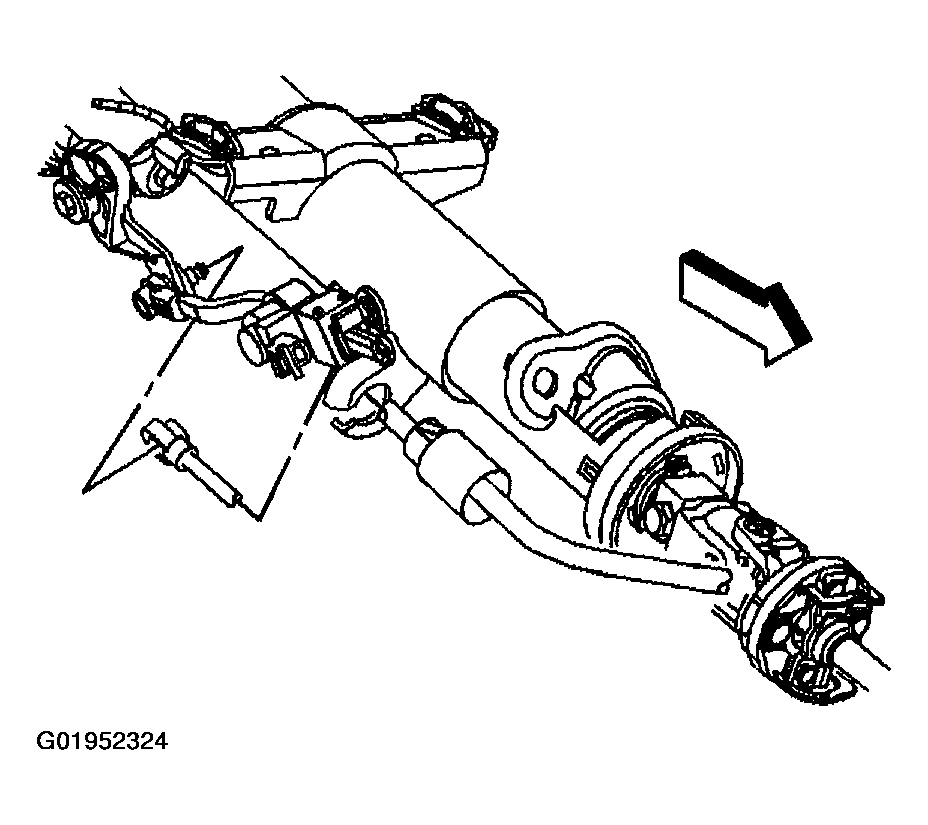

    Fig 2: Removing Cable From Steering Column Bracket
    G01952324Courtesy of GENERAL MOTORS CORP.
  8. Remove the bolt securing the cable support to the brace.

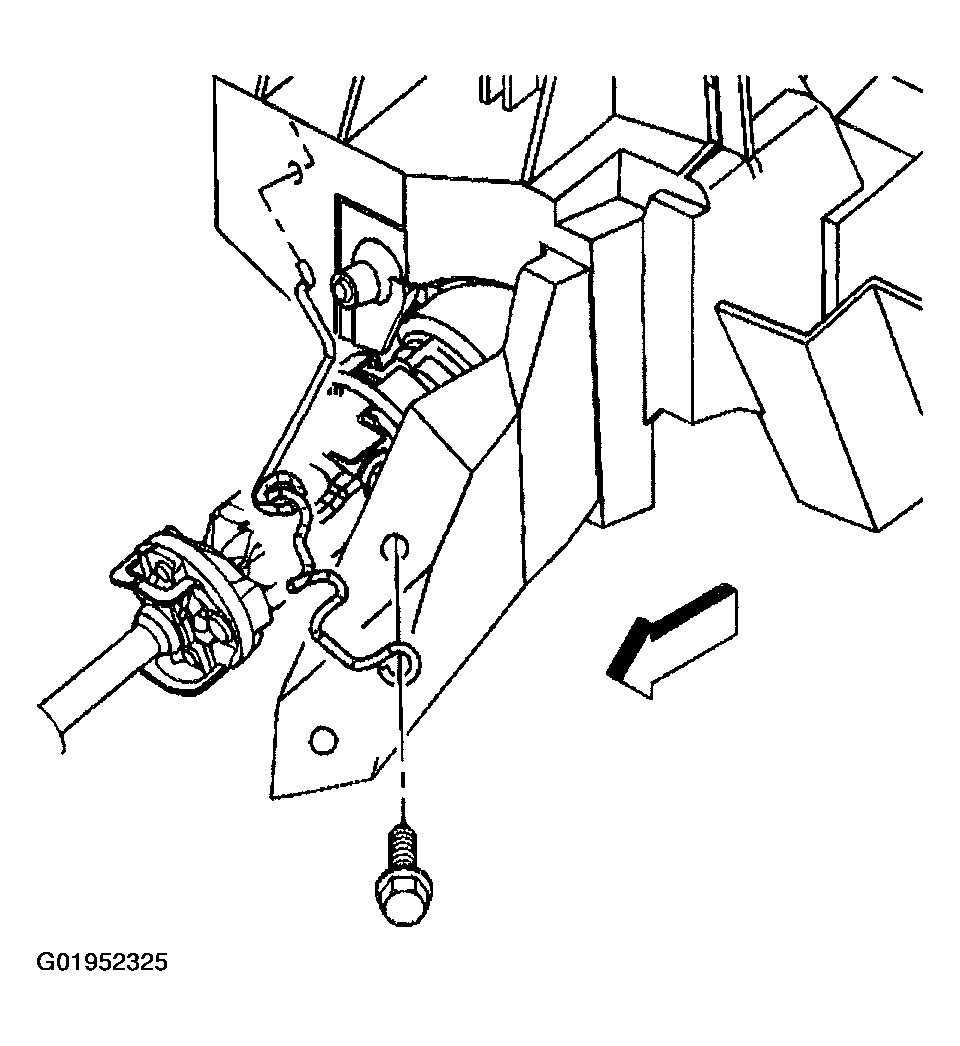

    Fig 3: Removing Bolt Securing Cable Support To Brace
    G01952325Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Avoid unnecessary twisting/bending of the range selector cable when removing the cable from the support.
  9. Remove the range selector cable from the support.

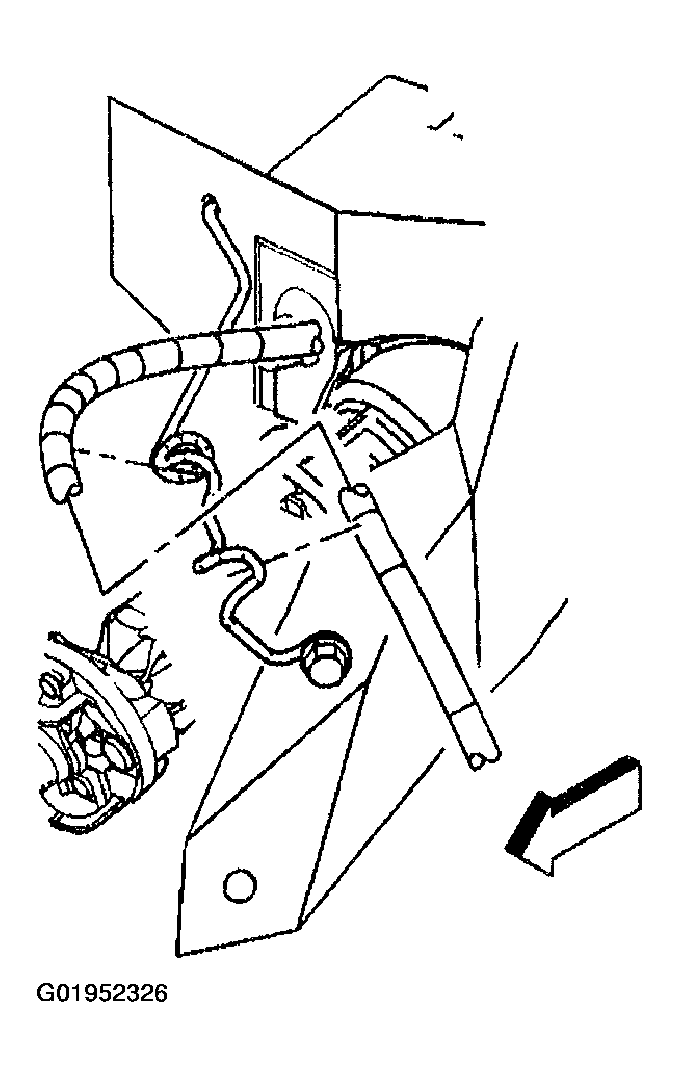

    Fig 4: Removing Range Selector Cable From Support
    G01952326Courtesy of GENERAL MOTORS CORP.
  10. Remove the cable grommet from the floor panel.
  11. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

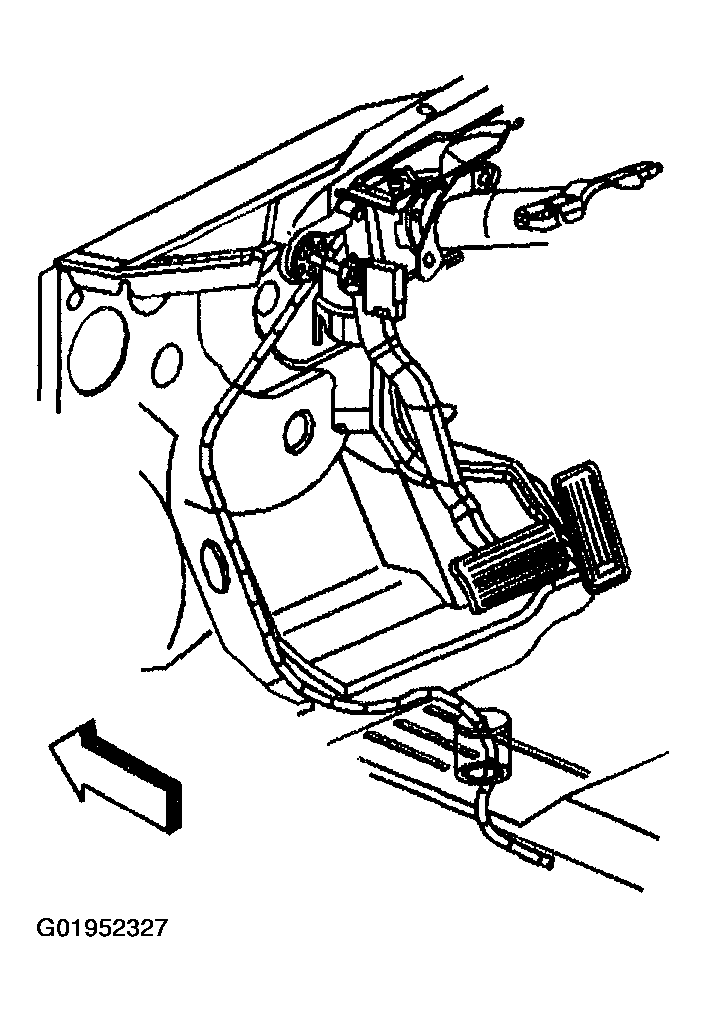

    Fig 5: Removing Cable Grommet From Floor Panel
    G01952327Courtesy of GENERAL MOTORS CORP.
  12. Remove the clips on the cable from the floor panel reinforcement.

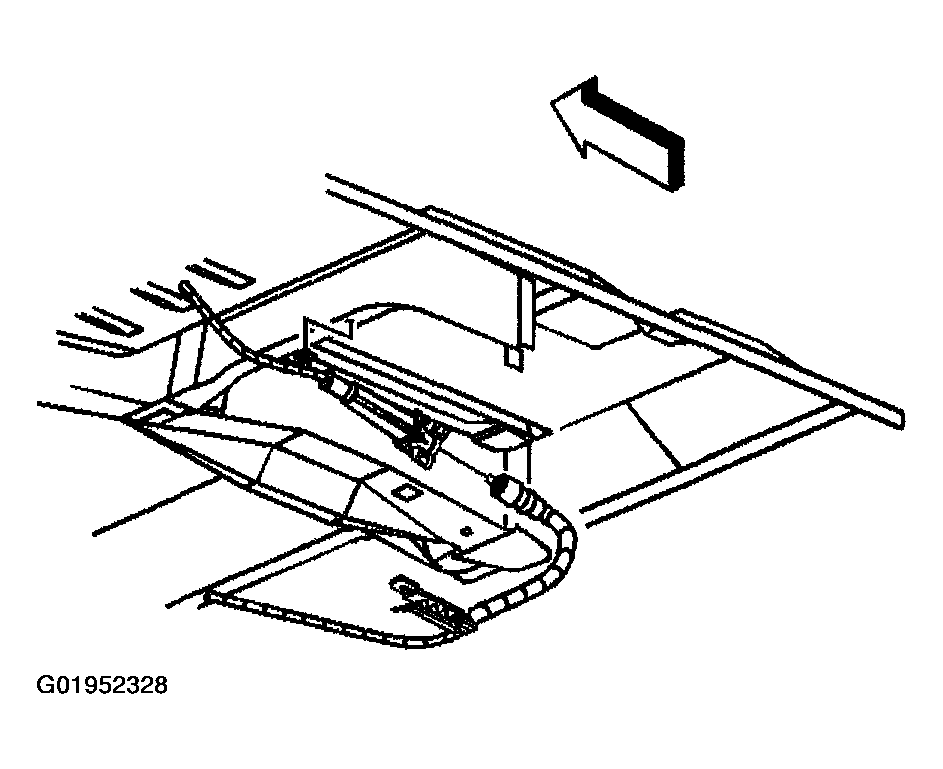

    Fig 6: Removing Clips On Cable From Floor Panel Reinforcement
    G01952328Courtesy of GENERAL MOTORS CORP.
  13. Ensure the transmission manual shaft is positioned in mechanical park.
  14. Remove the retainer that secures the cable to the bracket.

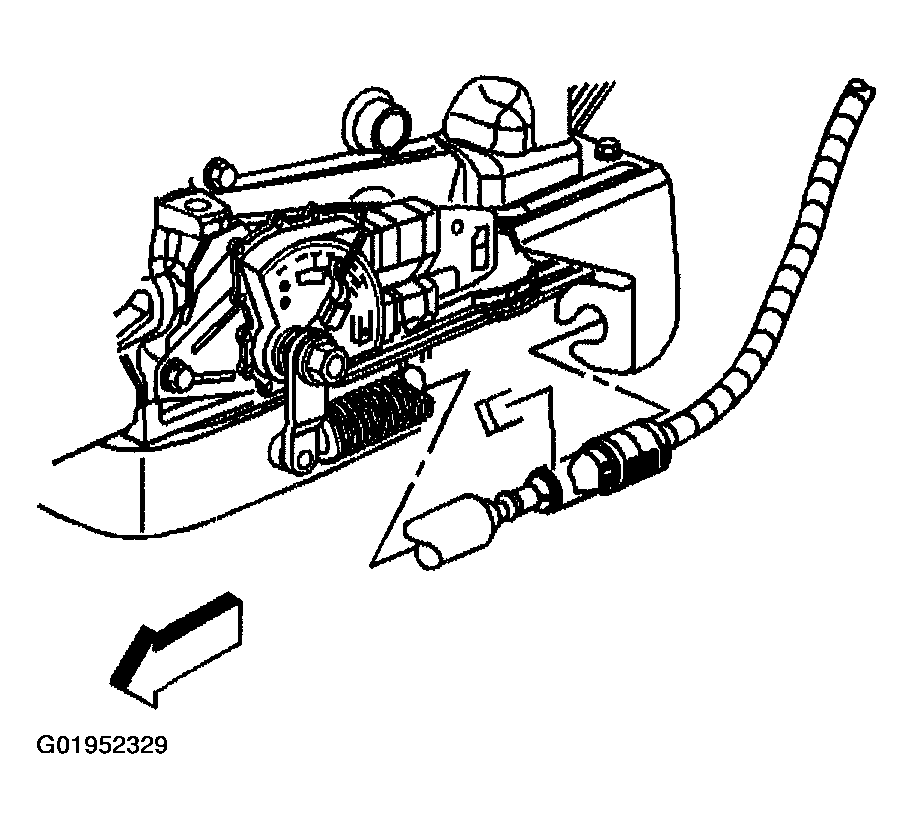

    Fig 7: Removing Retainer Securing Cable To Bracket
    G01952329Courtesy of GENERAL MOTORS CORP.
  15. Remove the cable clip on the transfer case, if equipped.
  16. Remove the range selector cable end (2) from the transmission range selector lever ball stud (1).
  17. Depress the tangs and remove the cable from the bracket.
  18. Lower the vehicle and ensure that the steering column shift lever is still in the park position.

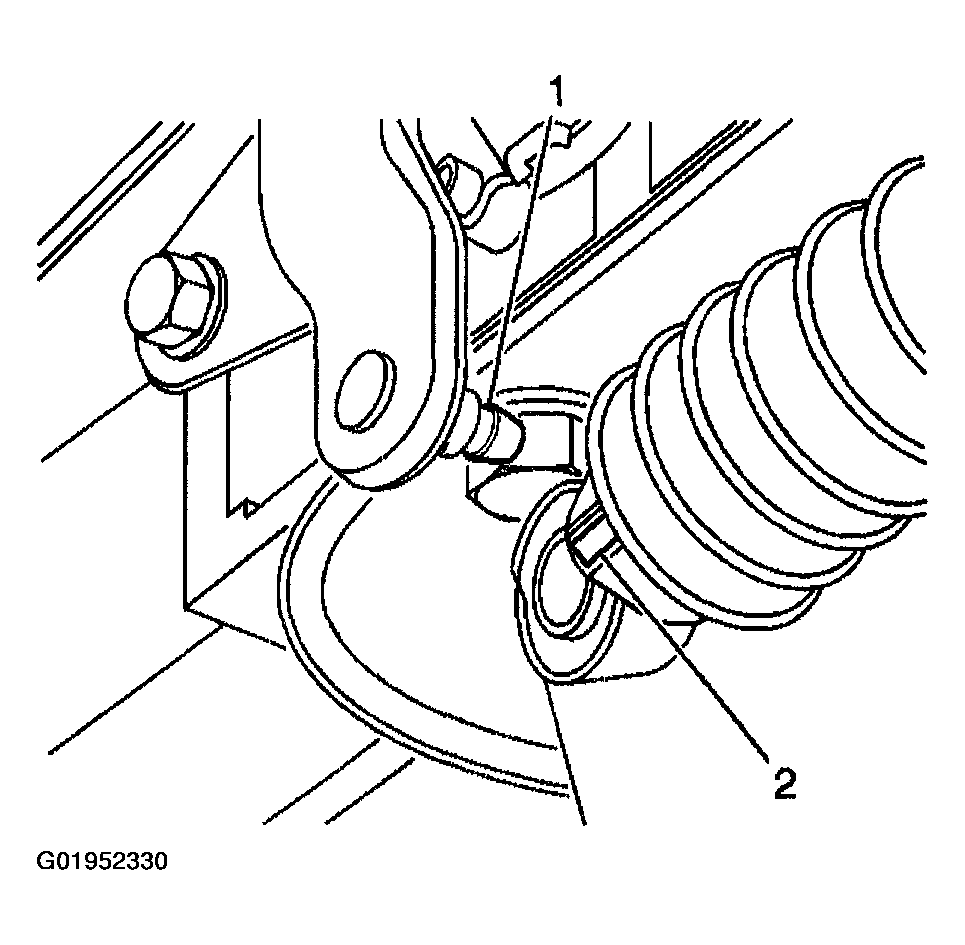

    Fig 8: Removing Range Selector Cable End From Transmission Range Selector Lever Ball Stud
    G01952330Courtesy of GENERAL MOTORS CORP.
