Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission range selector cable bracket to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the transmission range selector cable bracket bolts (1).

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the transmission range selector cable to the bracket (2) and the lever. Refer to Automatic Transmission Range Selector Cable Replacement   .
  4. Lower the vehicle.
  5. Check the vehicle for proper operation. If adjustment of the cable is necessary, refer to Automatic Transmission Range Selector Cable Adjustment   .

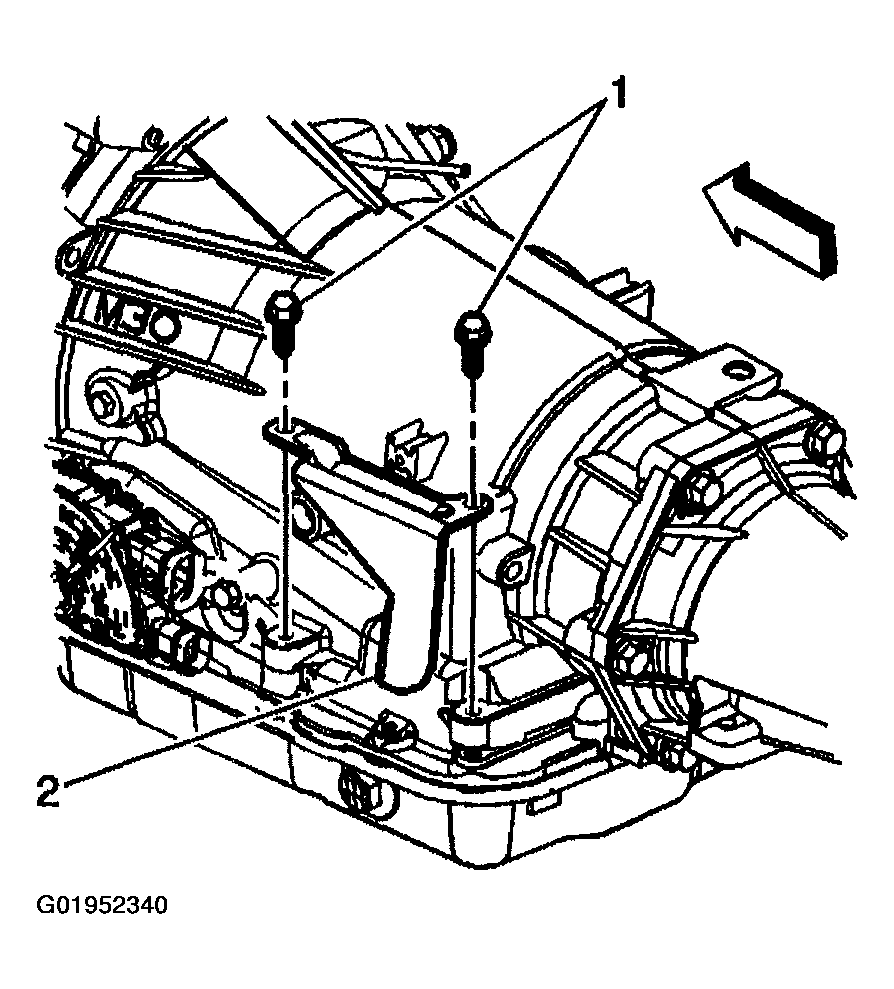

    Fig 1: Installing Automatic Transmission Range Selector Cable Bracket
    G01952340Courtesy of GENERAL MOTORS CORP.
