Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step tests for a faulty tow/haul switch.
  2. 3. This step tests for voltage input from the BCM to the tow/haul switch.
  3. 6. This step tests for ground integrity.

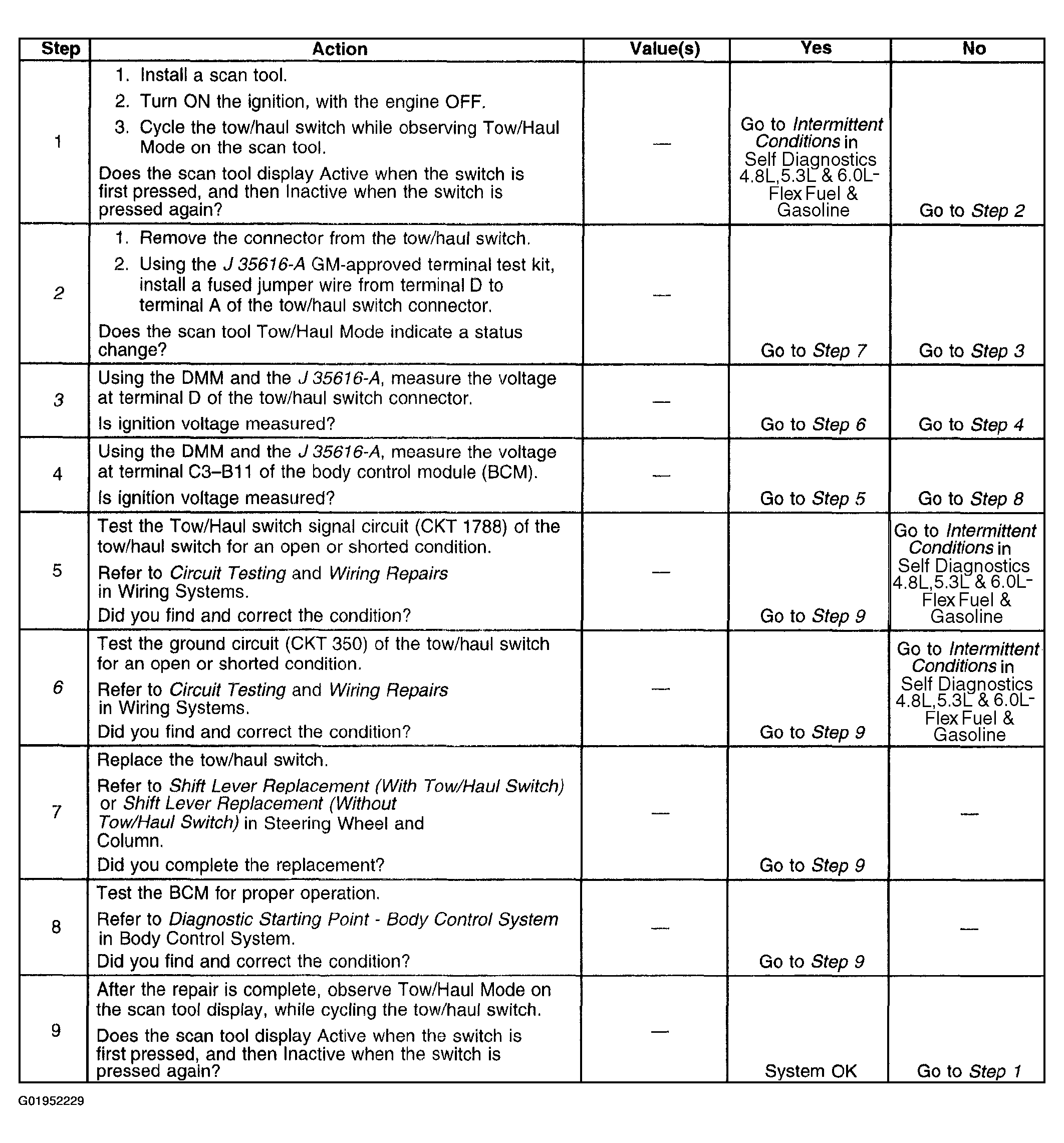

Fig 1: Tow/Haul Switch/Indicator Always On Or Inoperative
G01952229Courtesy of GENERAL MOTORS CORP.
