Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 4. This step tests the function of the 2-3 SS valve and the internal wiring harness.
  2. 5. This step tests the power to the 2-3 SS valve from the ignition through the fuse.
  3. 7. This step tests the ability of the PCM and the wiring to control the ground circuit.
  4. 12. This step measures the resistance of the automatic transmission (AT) wiring harness assembly and the 2-3 SS valve.

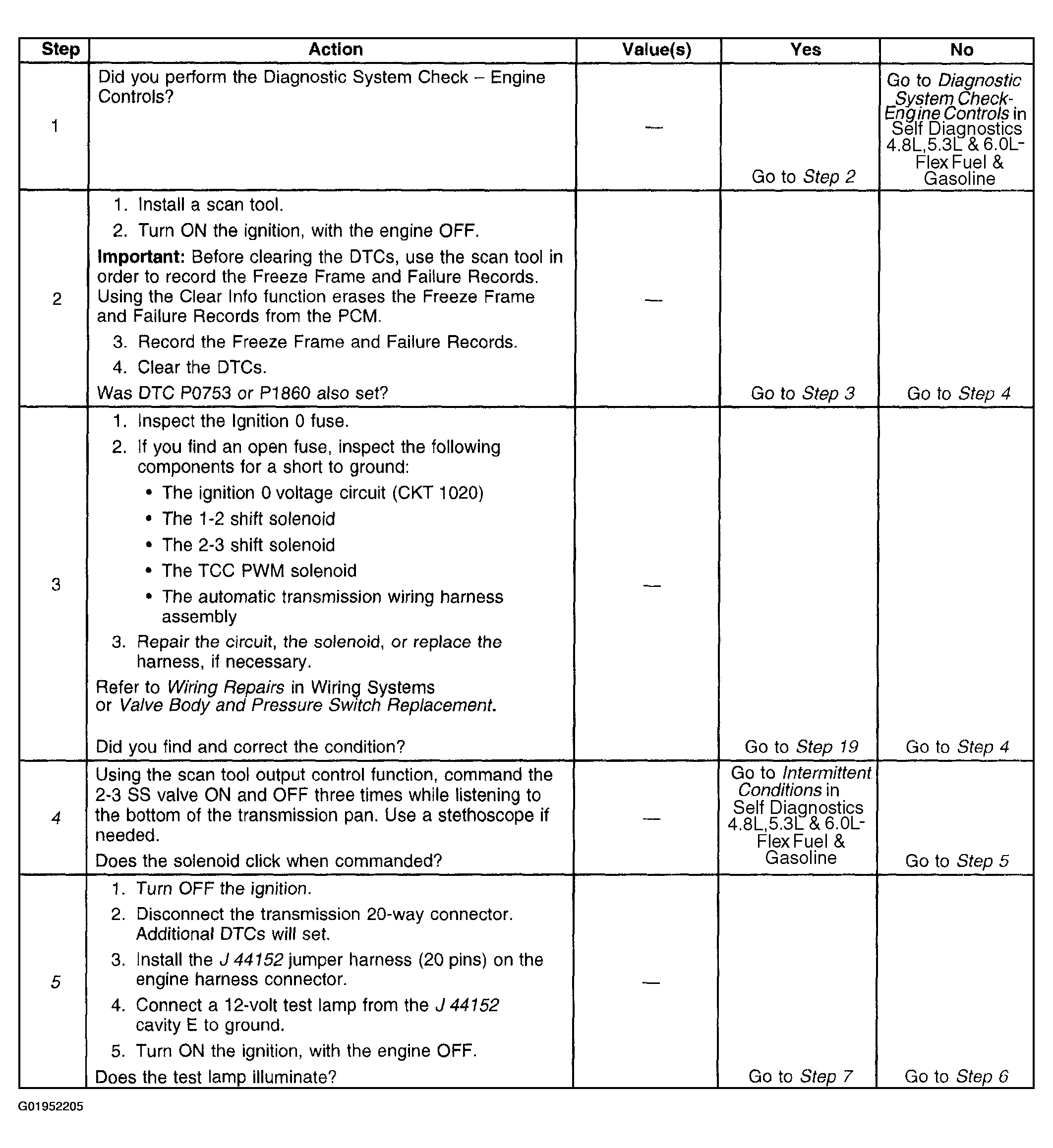

Fig 1: DTC P0758 (Steps 1 - 5)
G01952205Courtesy of GENERAL MOTORS CORP.

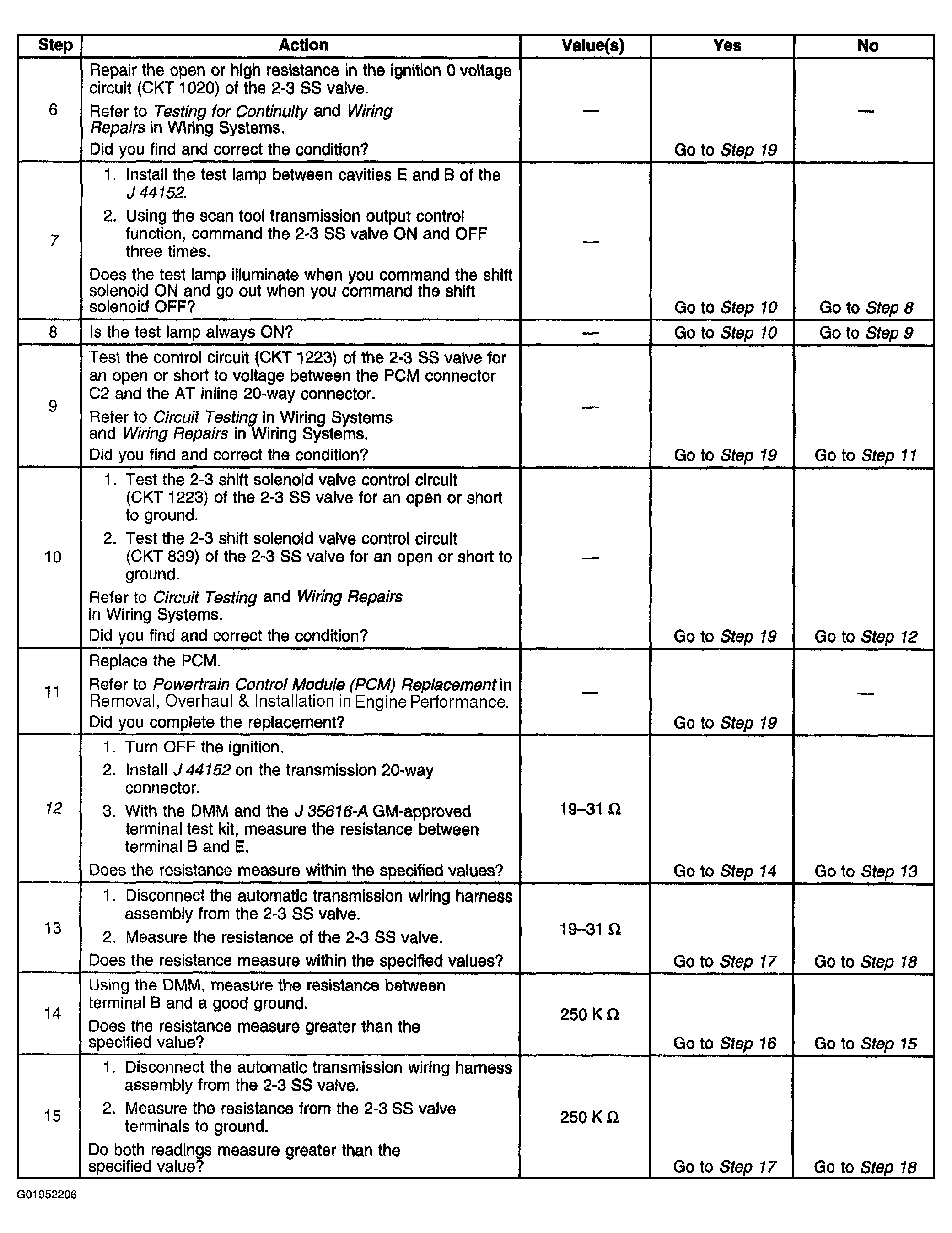

Fig 2: DTC P0758 (Steps 6 - 15)
G01952206Courtesy of GENERAL MOTORS CORP.
Fig 3: DTC P0758 (Steps 16 - 20)
G01952207Courtesy of GENERAL MOTORS CORP.
