Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 4. This step tests for TCC/Stop lamp switch voltage to the PCM connector.
  2. 7. This step isolates the TCC/Stop lamp switch as a source for setting the DTC.
  3. 10. This step tests for a short to ground in the brake fuse circuit (CKT 441).
  4. 12. This step tests for a short to ground in the TCC brake switch signal circuit (CKT 420), from the TCC/Stop lamp switch to the PCM.
  5. 13. This step isolates the PCM as a source for causing the fuse to open.

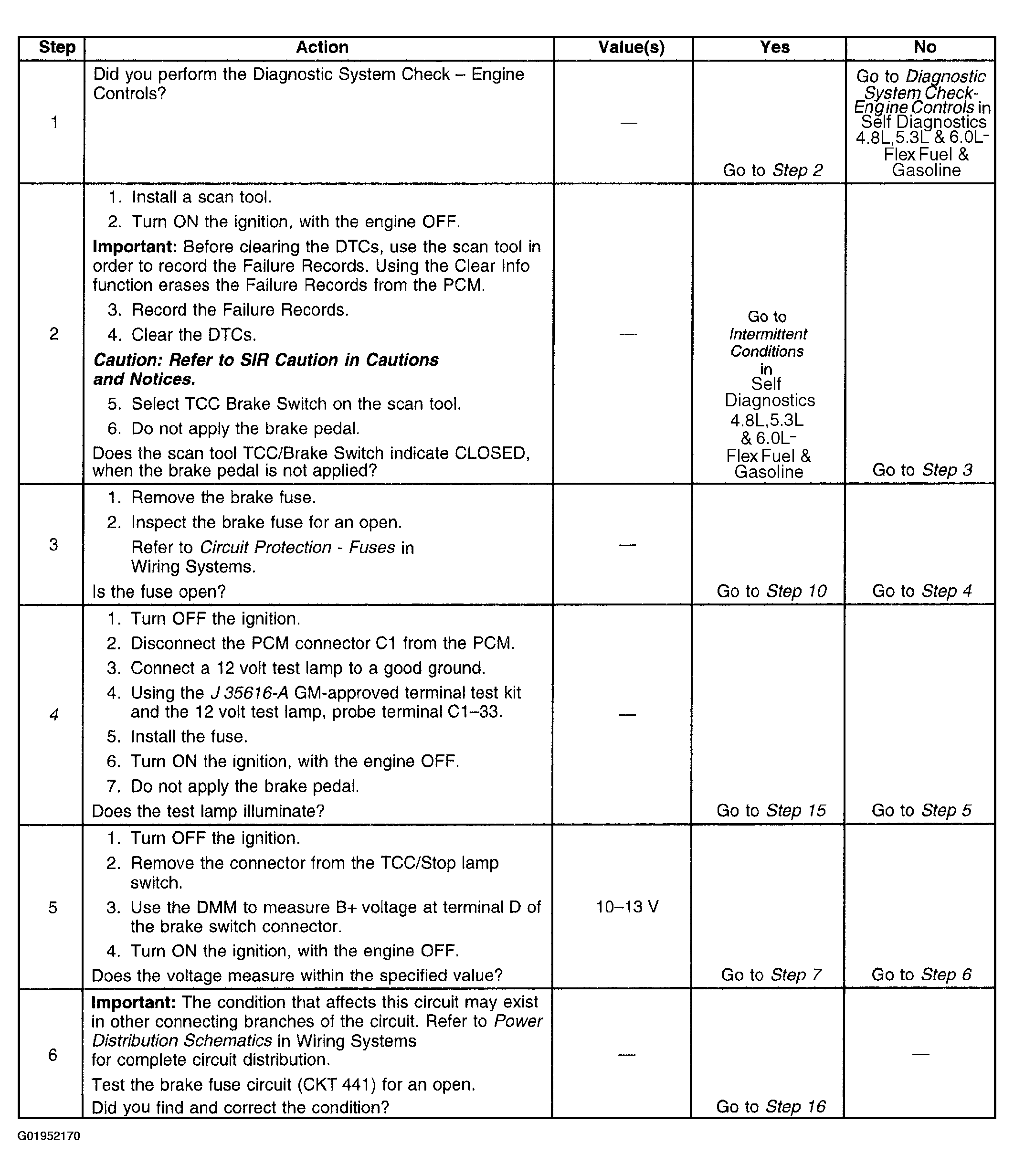

Fig 1: DTC P0719 (Steps 1 - 6)
G01952170Courtesy of GENERAL MOTORS CORP.

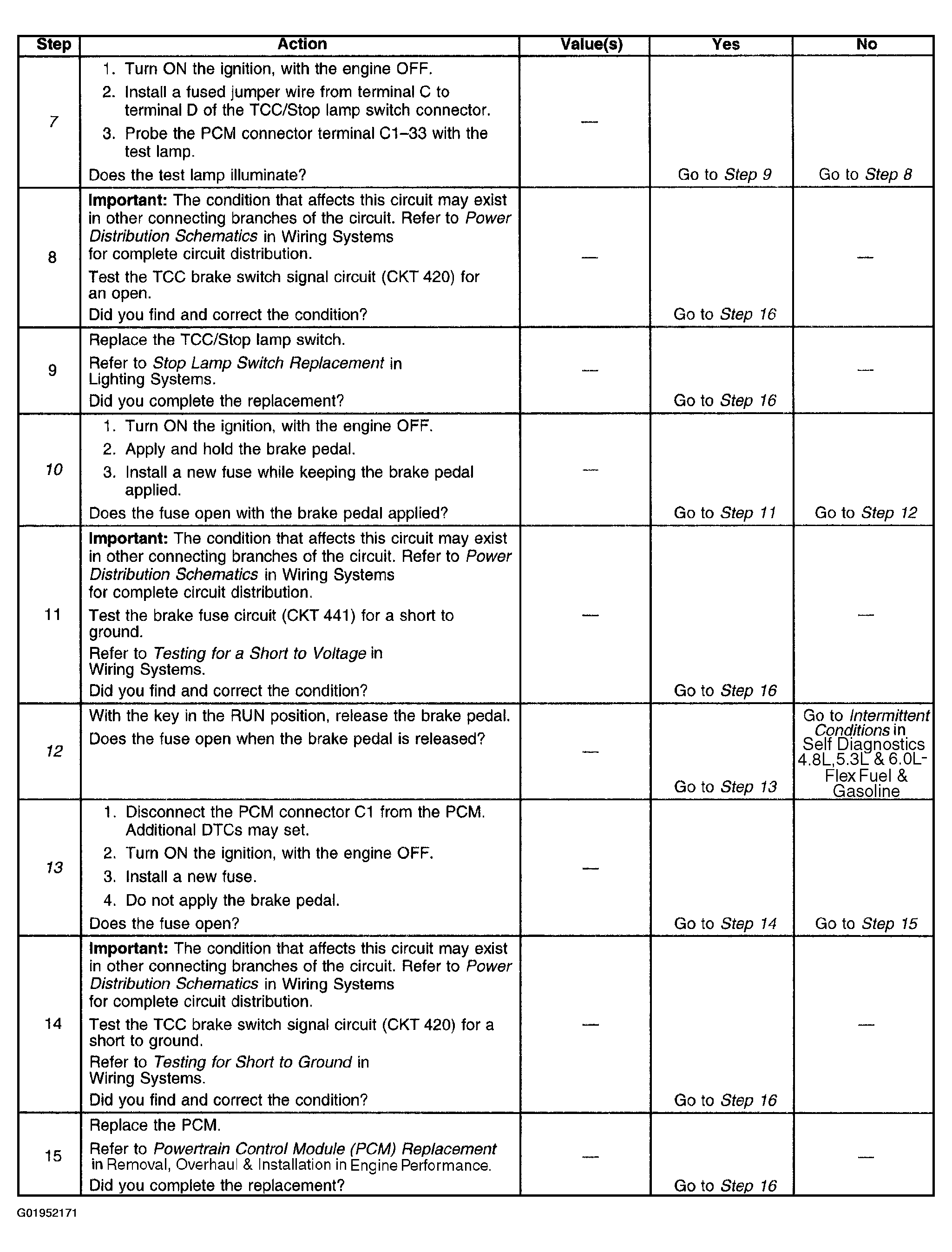

Fig 2: DTC P0719 (Steps 7 - 15)
G01952171Courtesy of GENERAL MOTORS CORP.

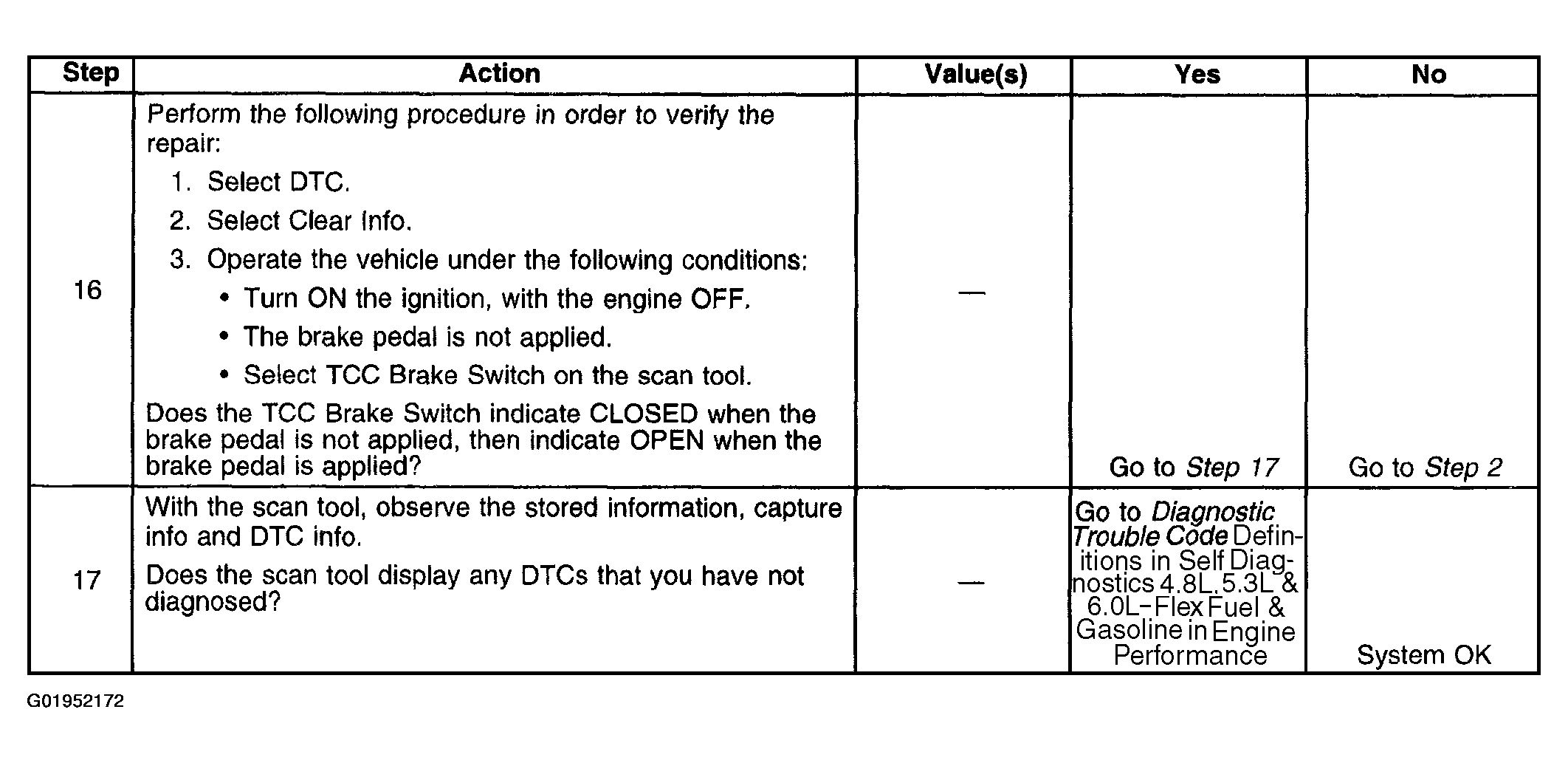

Fig 3: DTC P0719 (Steps 16 - 17)
G01952172Courtesy of GENERAL MOTORS CORP.
