Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2. This step tests for proper AT fluid level and condition.
3. This step verifies which condition has set DTC P0711.
5. The 12 volt test lamp is used as a fixed resistance.
6. This step ensures that the PCM monitors the TFT sensor Signal circuit (CKT 1227).

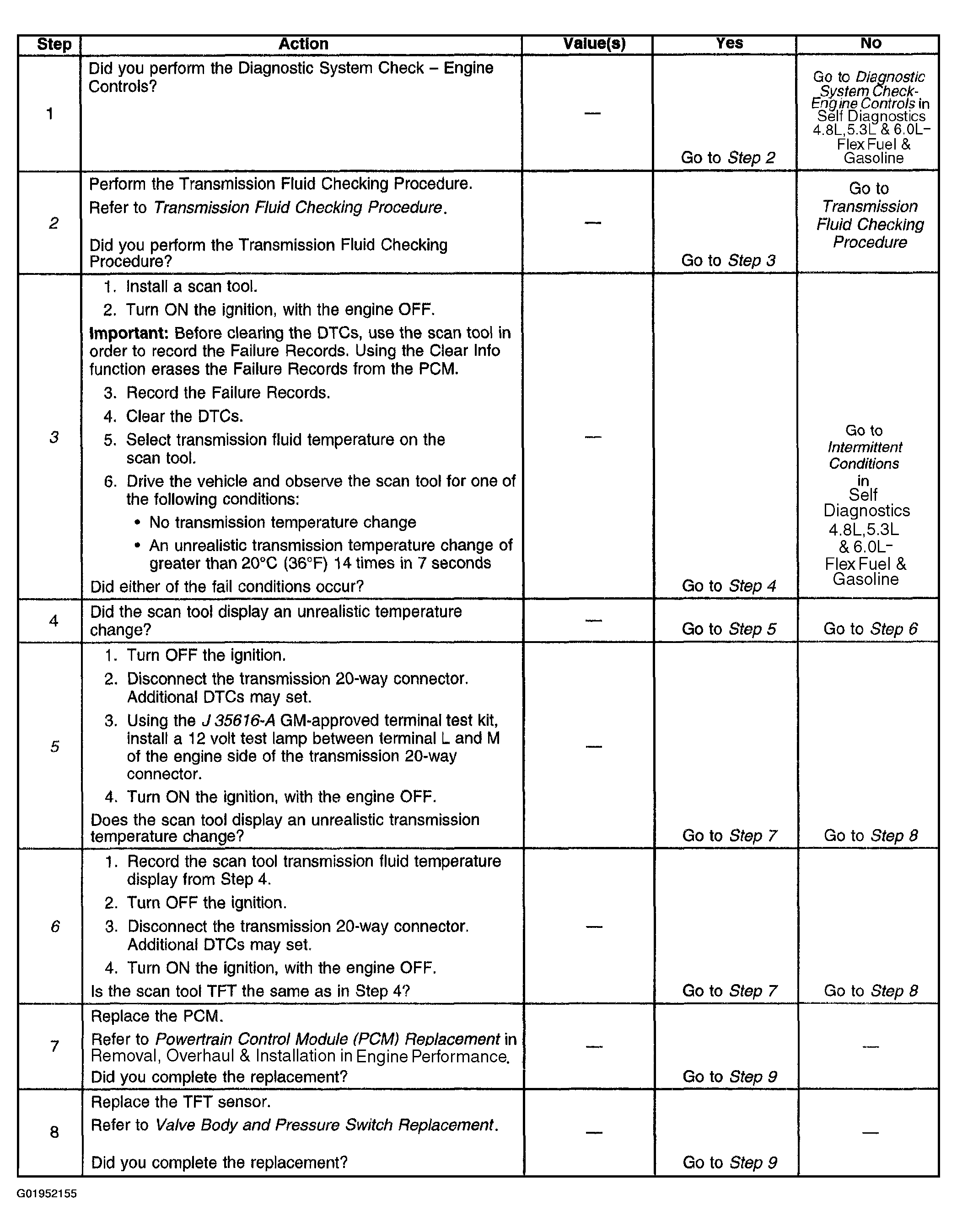

Fig 1: DTC P0711 (Steps 1 - 8)

Courtesy of GENERAL MOTORS CORP.

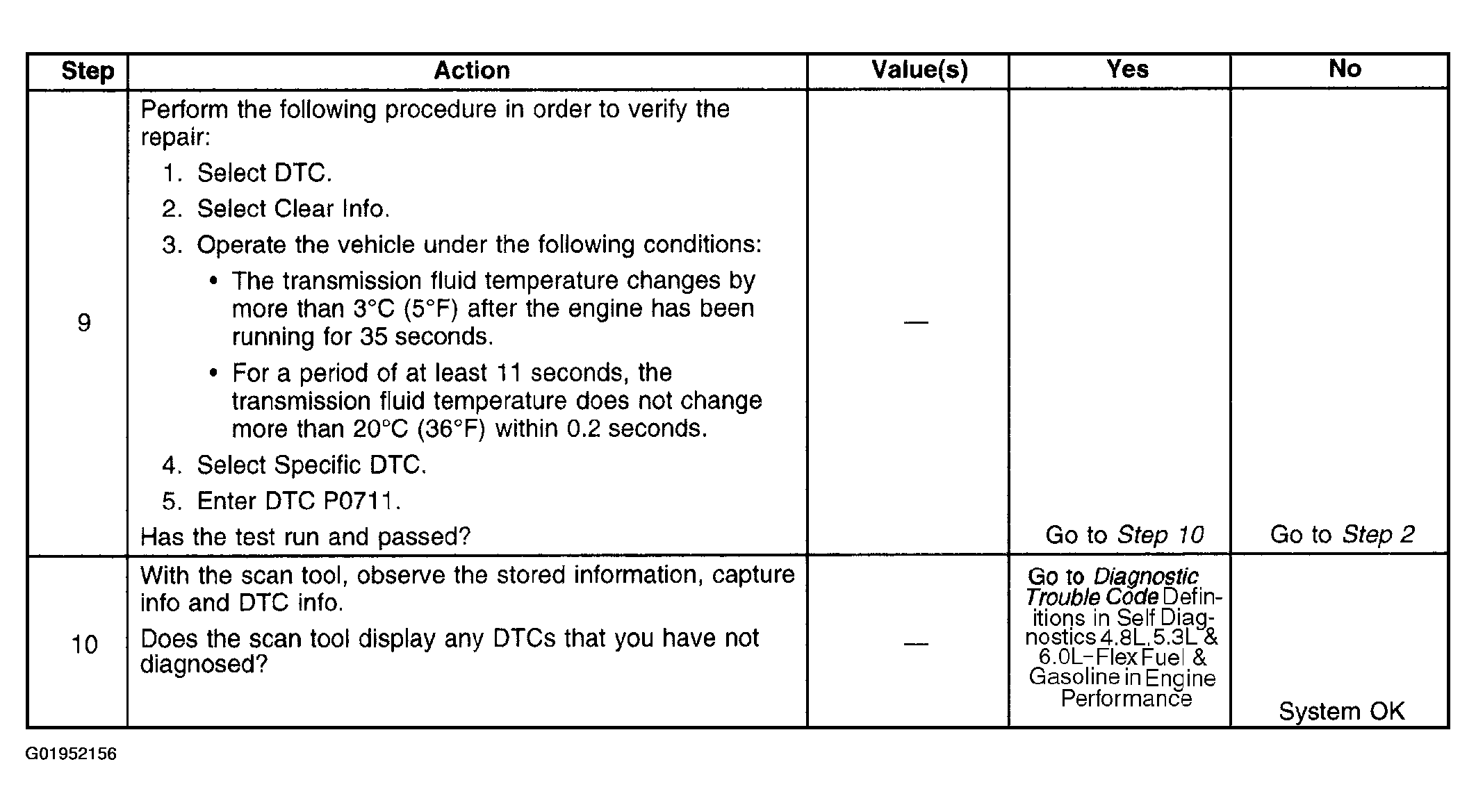

Fig 2: DTC P0711 (Steps 9 - 10)

Courtesy of GENERAL MOTORS CORP.
