Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This step tests the AT OSS assembly circuit.
  2. 4. This step tests the integrity of the AT OSS sensor.

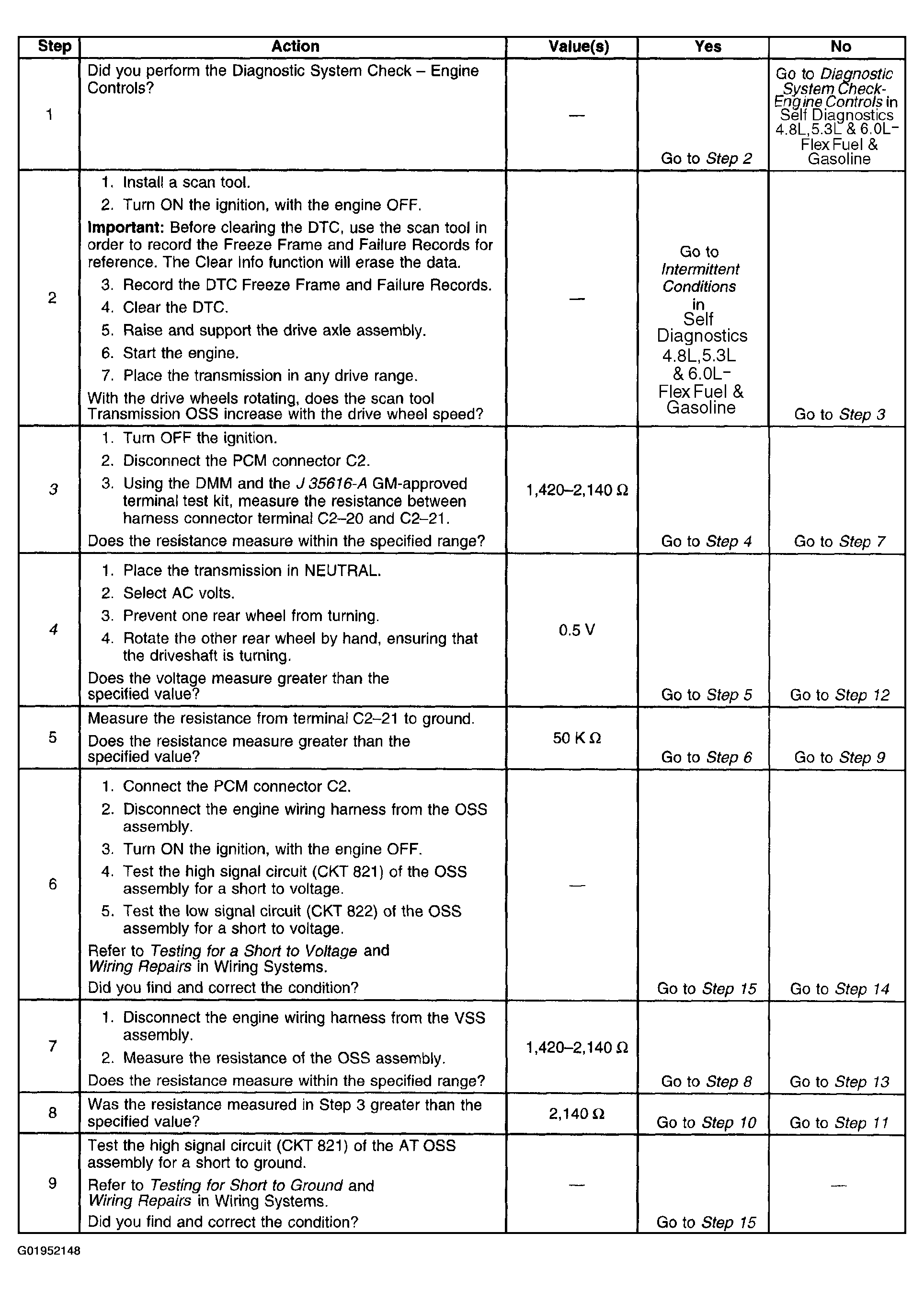

Fig 1: DTC P0503 (Steps 1 - 9)
G01952148Courtesy of GENERAL MOTORS CORP.

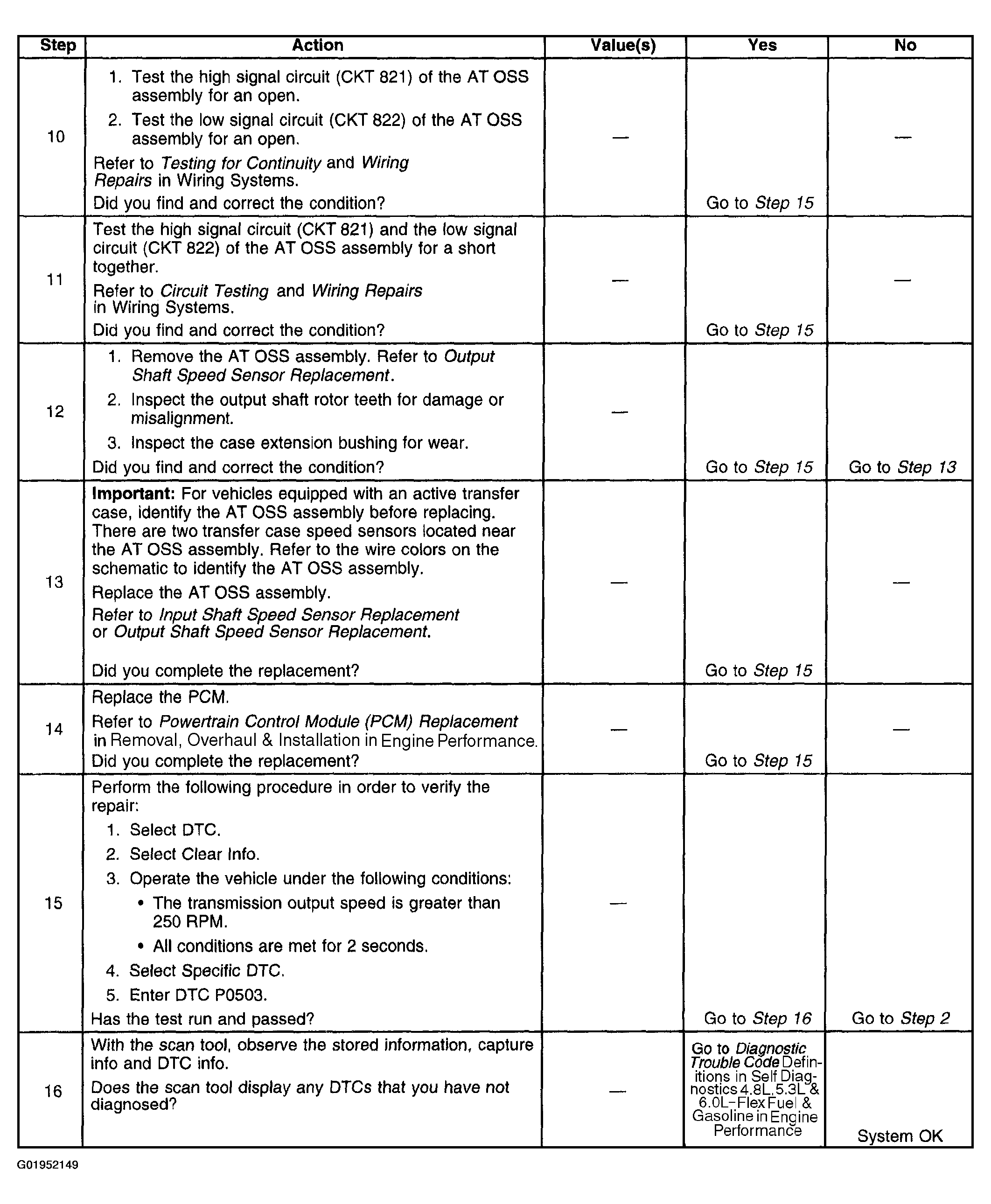

Fig 2: DTC P0503 (Steps 10 - 16)
G01952149Courtesy of GENERAL MOTORS CORP.
