Component Location

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

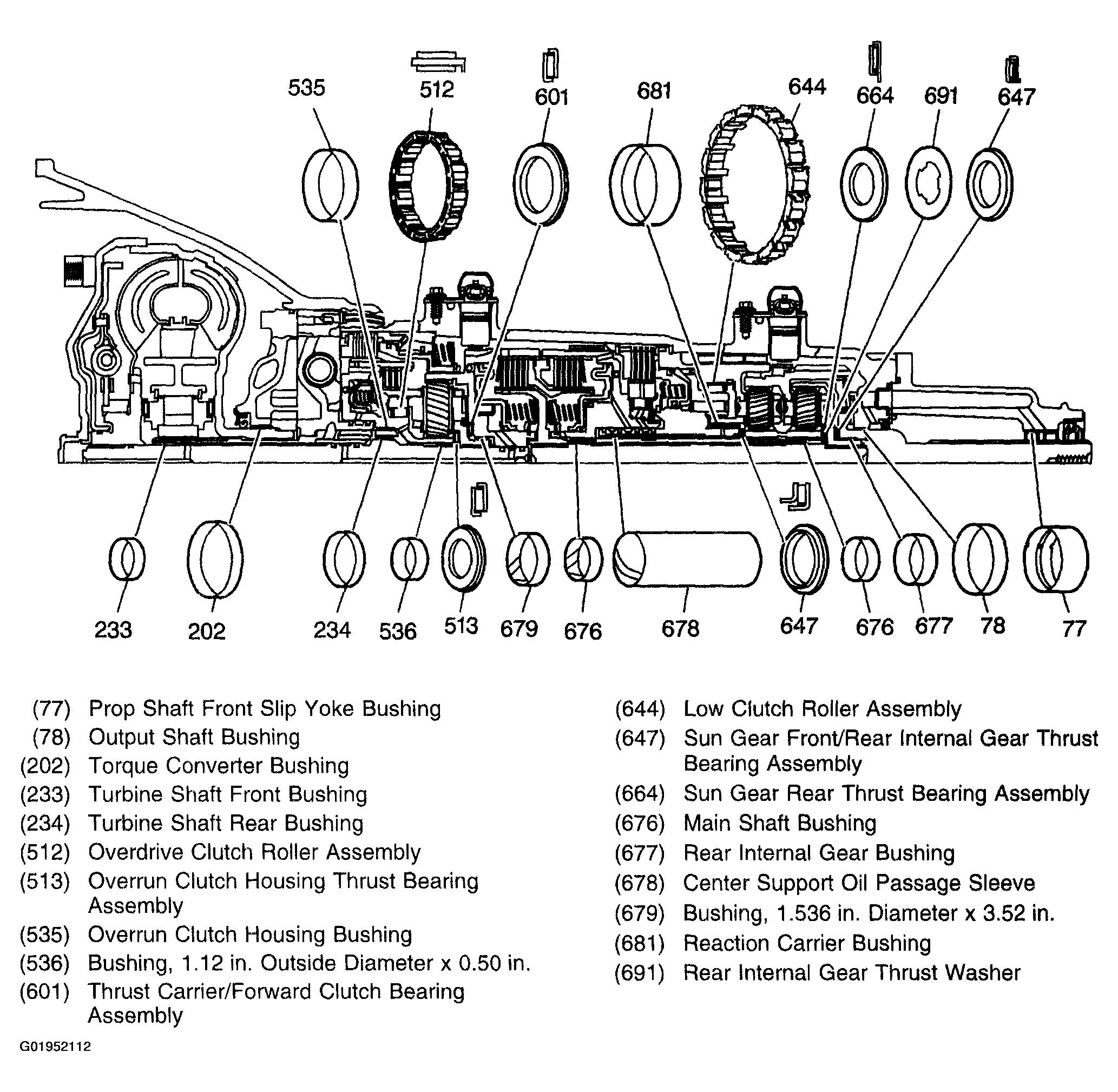

Fig 1: Bushing & Bearing Locations

Courtesy of GENERAL MOTORS CORP.

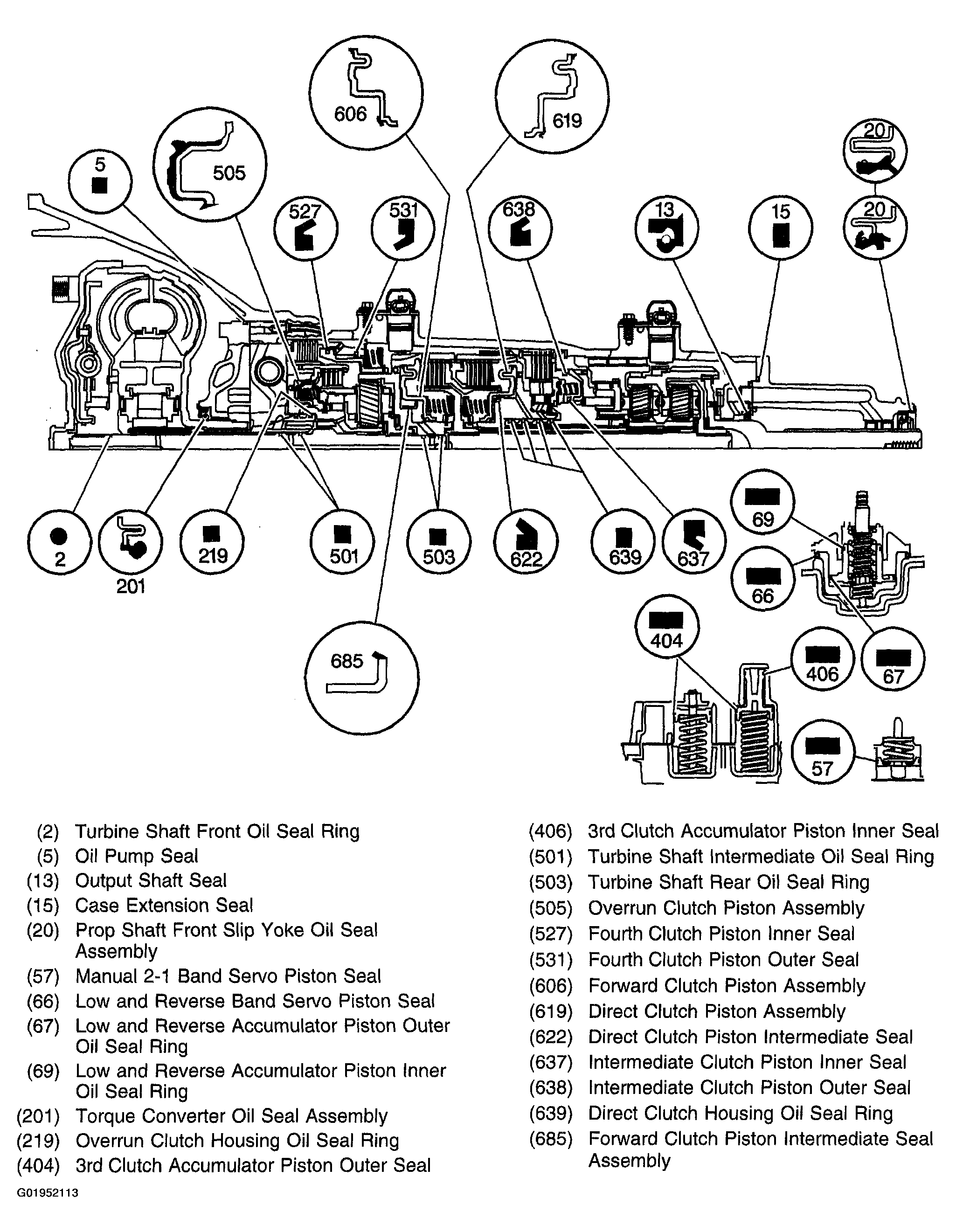

Fig 2: Seals

Courtesy of GENERAL MOTORS CORP.

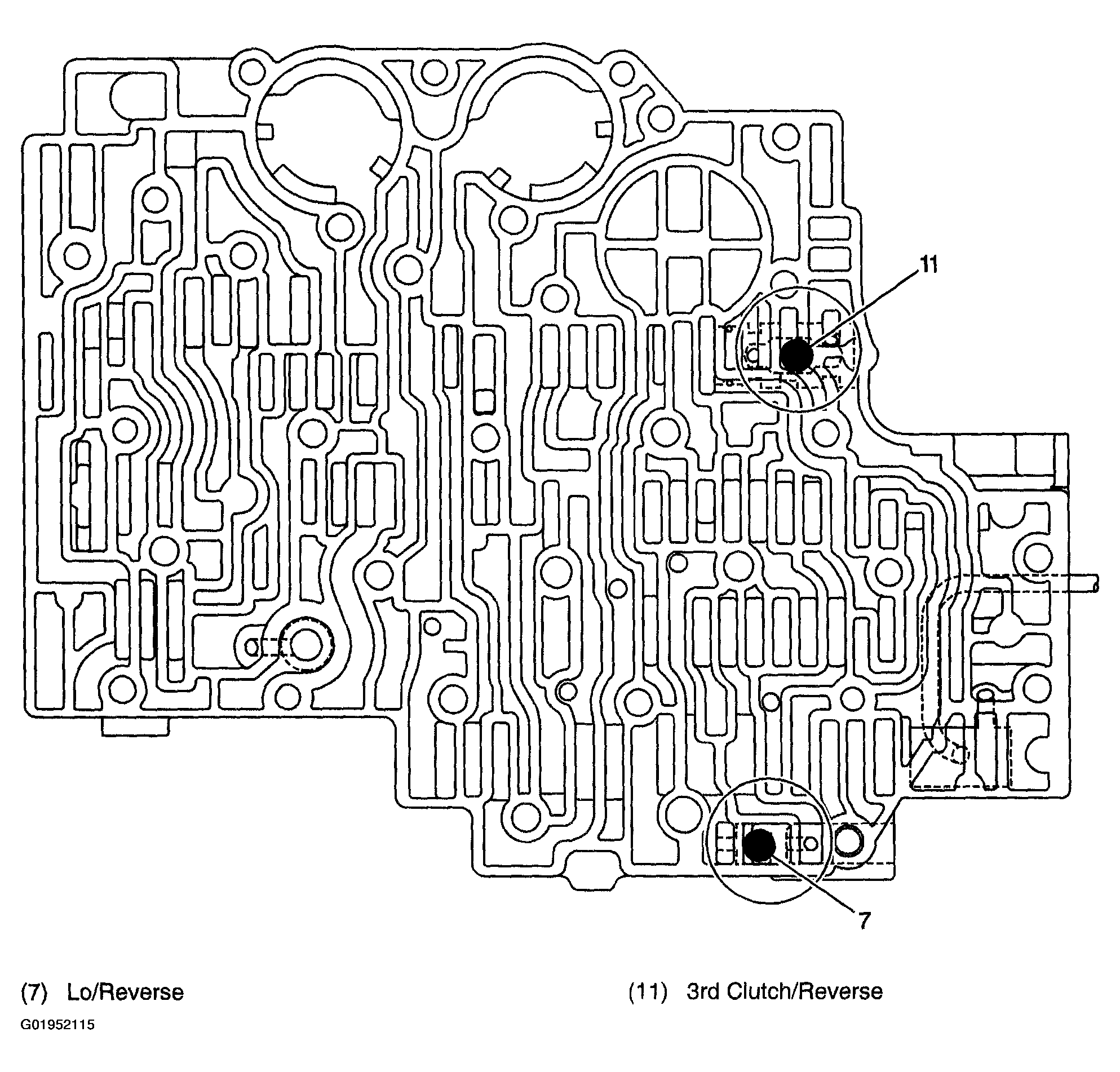

Fig 3: Ball Check Valve Locations (Case, Control Valve Body Side)

Courtesy of GENERAL MOTORS CORP.

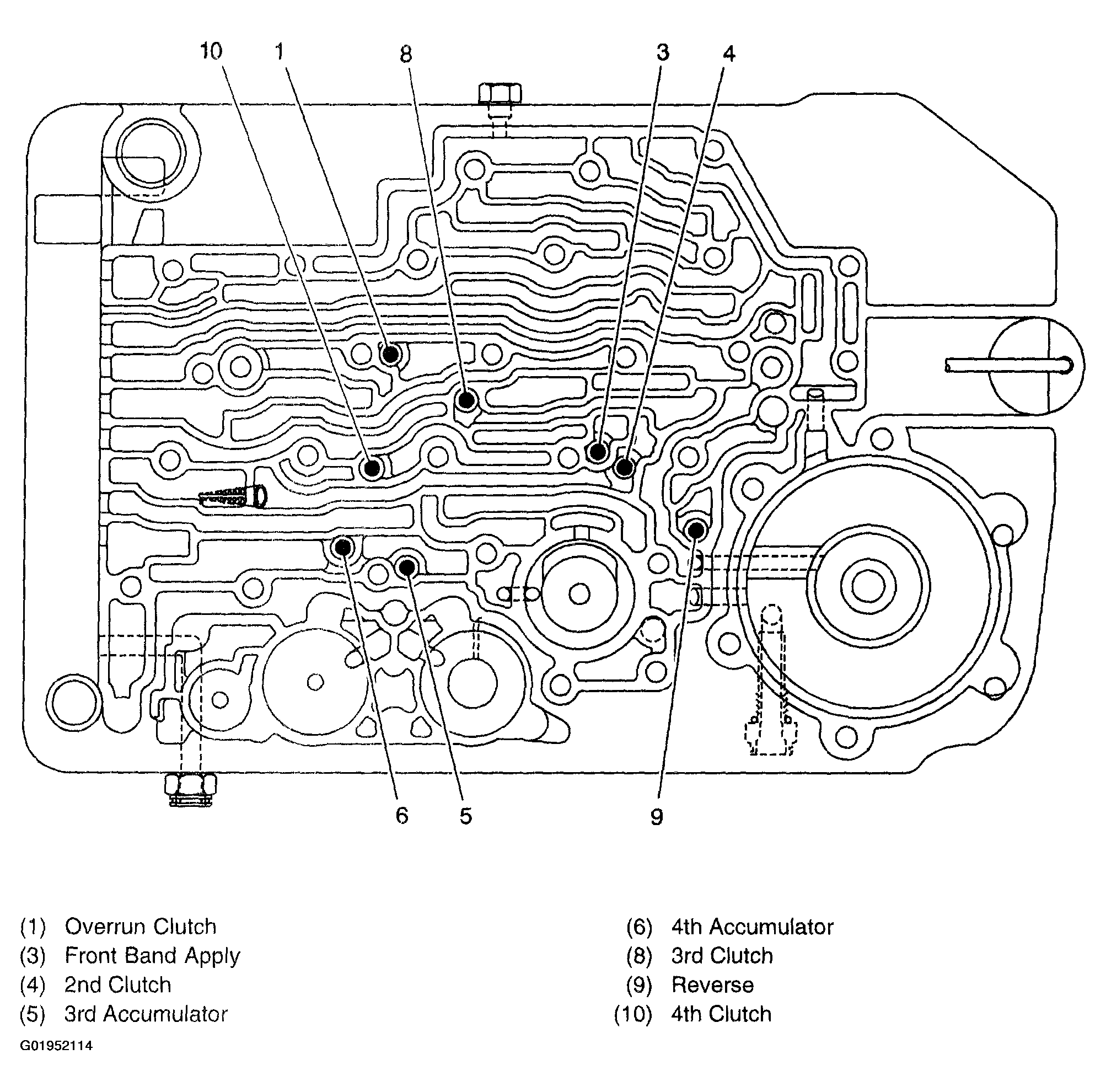

Fig 4: Ball Check Valve Locations (Control Valve Body, Case Side)

Courtesy of GENERAL MOTORS CORP.
