Automatic Transmission Related Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

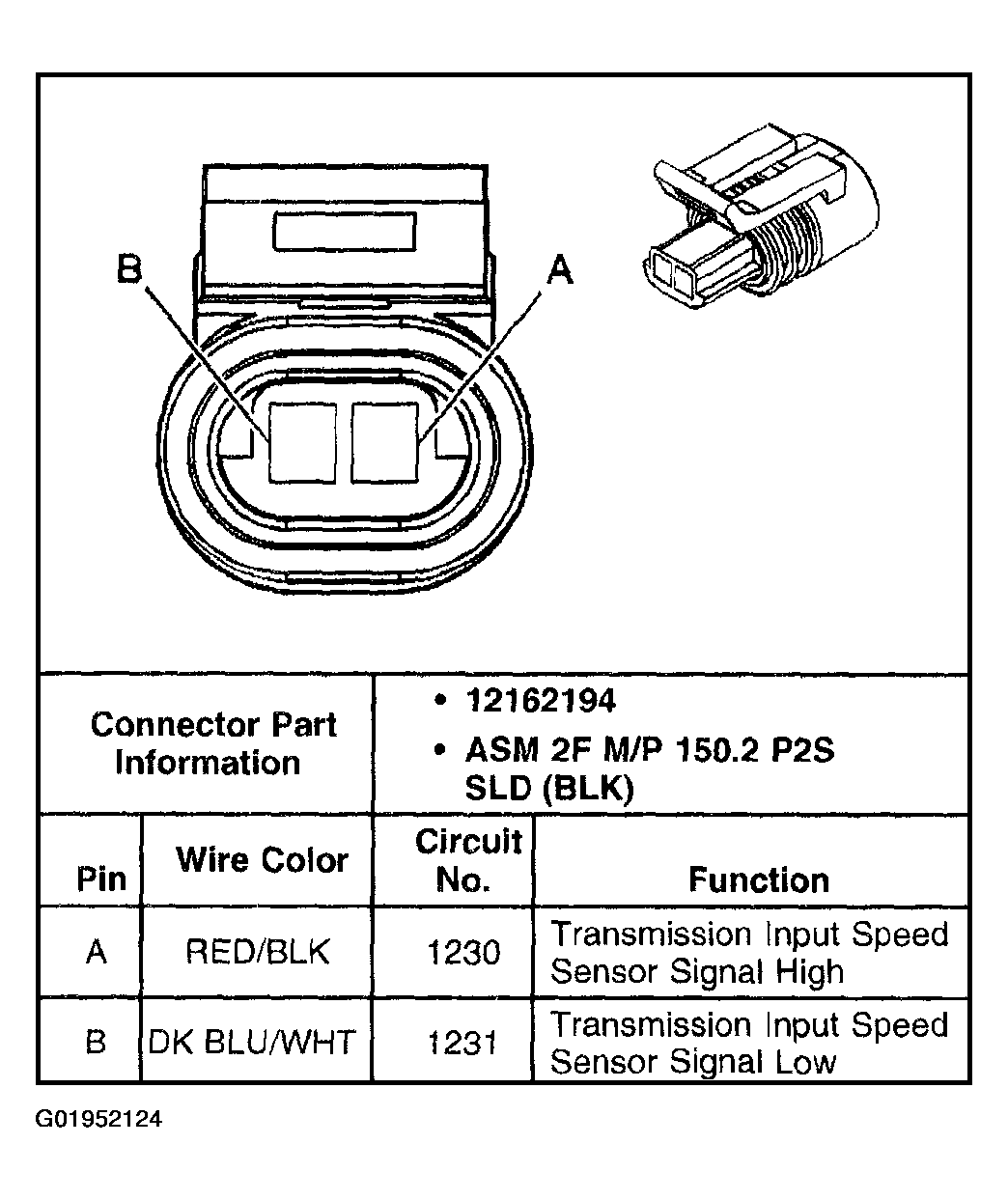

Fig 1: Automatic Transmission Input Shaft Speed (AT ISS) Sensor Connector

Courtesy of GENERAL MOTORS CORP.

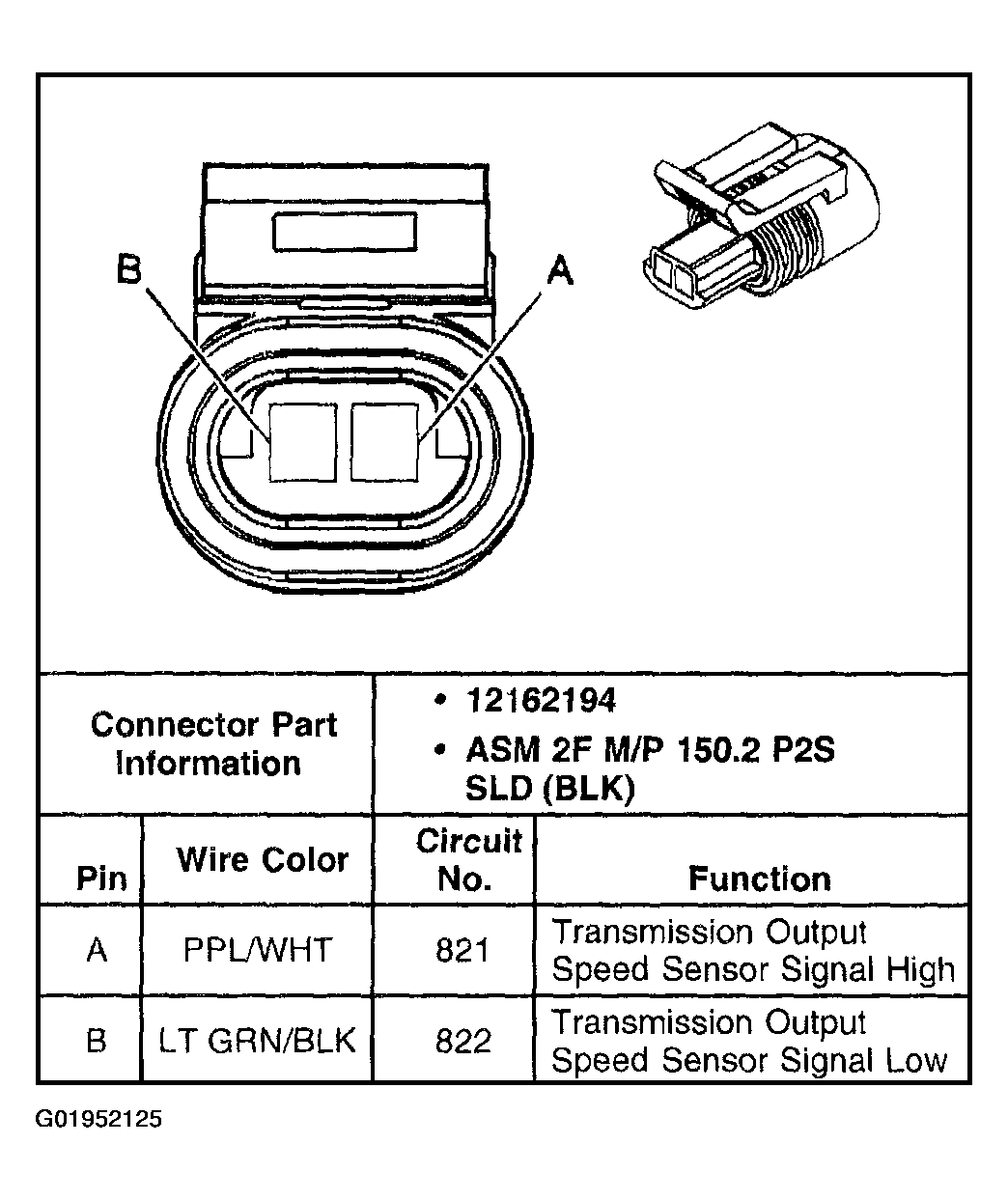

Fig 2: Automatic Transmission Output Shaft Speed (AT OSS) Sensor Connector

Courtesy of GENERAL MOTORS CORP.

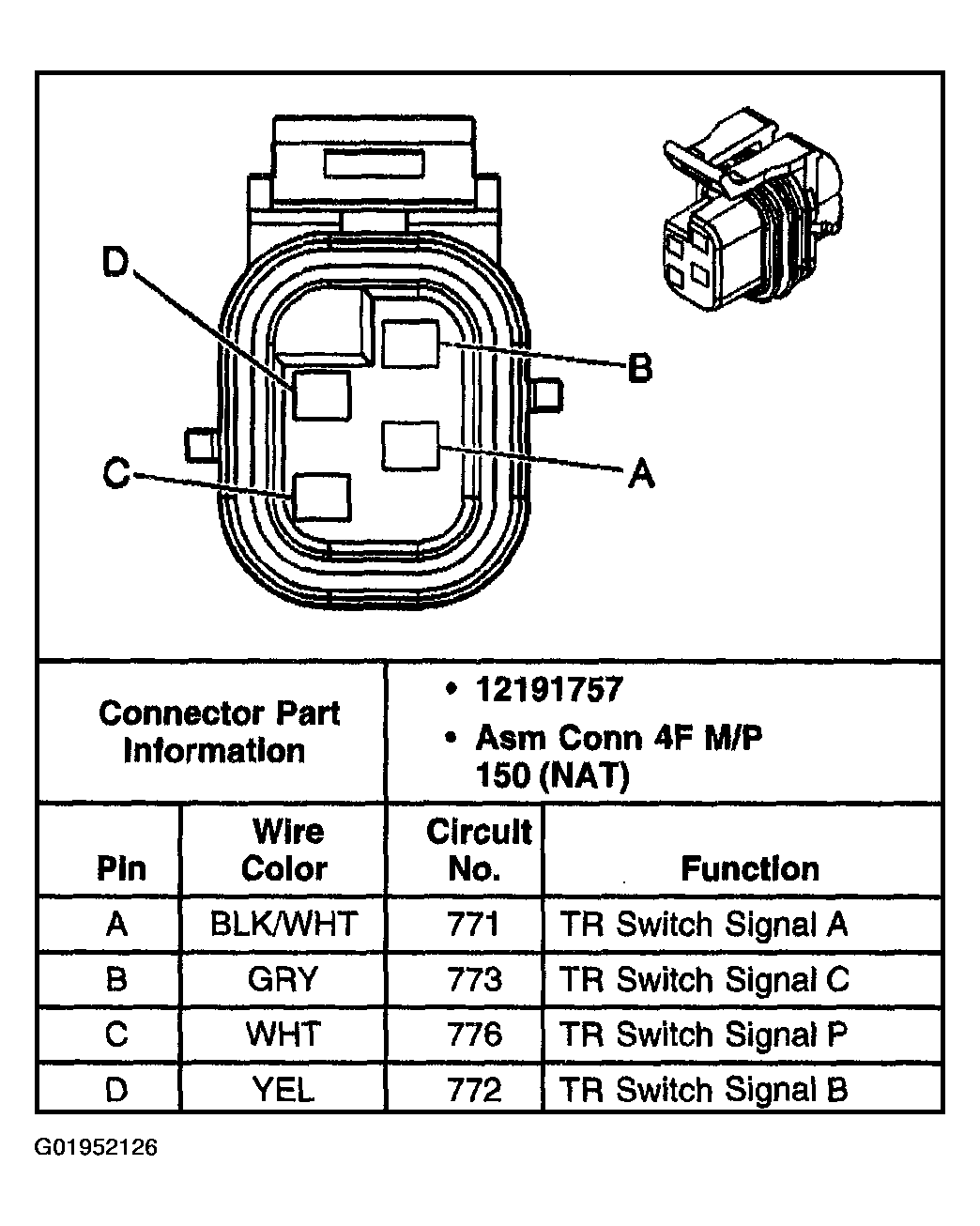

Fig 3: Transmission Range Switch Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

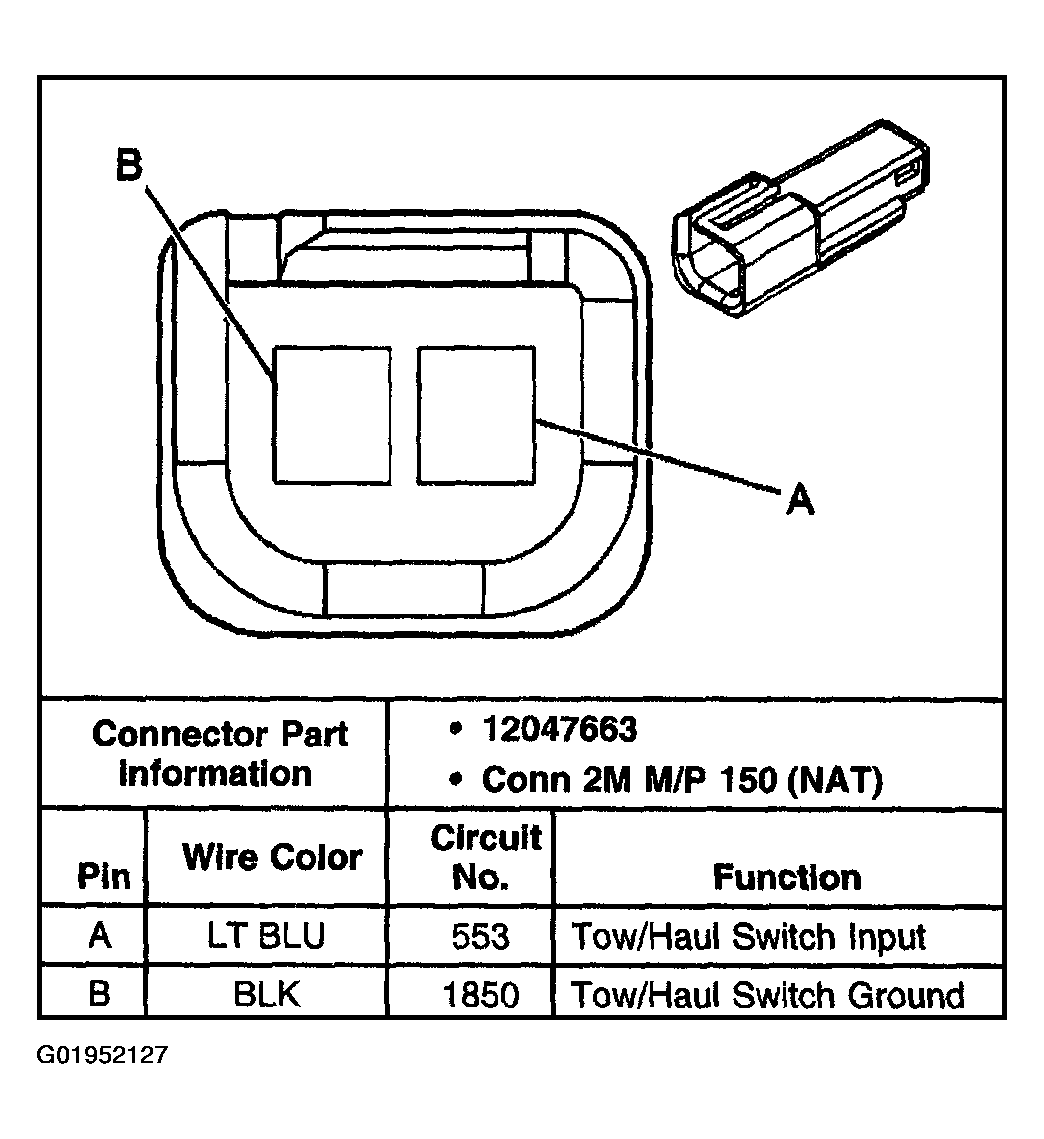

Fig 4: Tow/Haul Switch Connector, Column Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

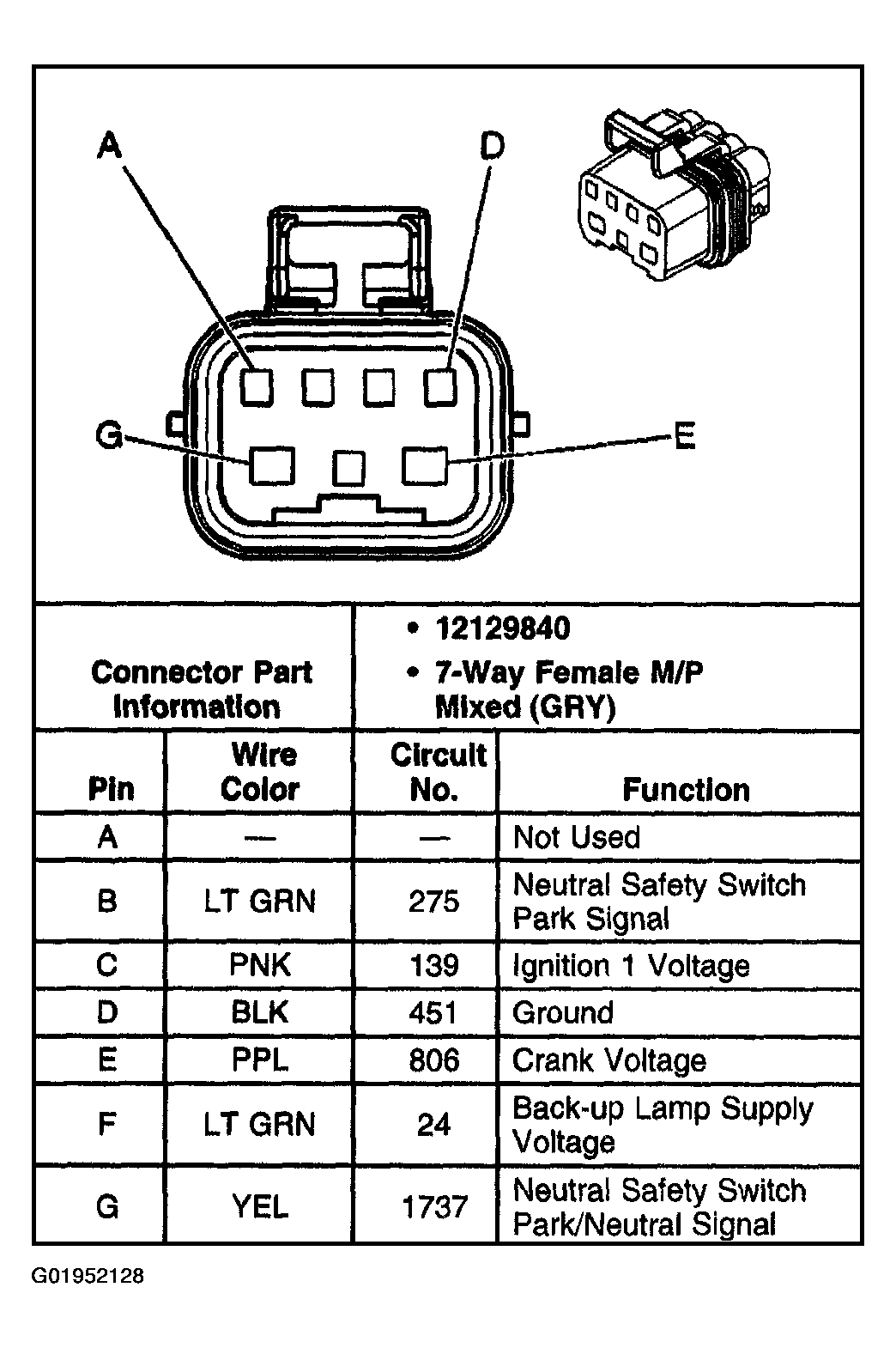

Fig 5: Park/Neutral Position Switch(C2)

Courtesy of GENERAL MOTORS CORP.
