Shift Speed

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

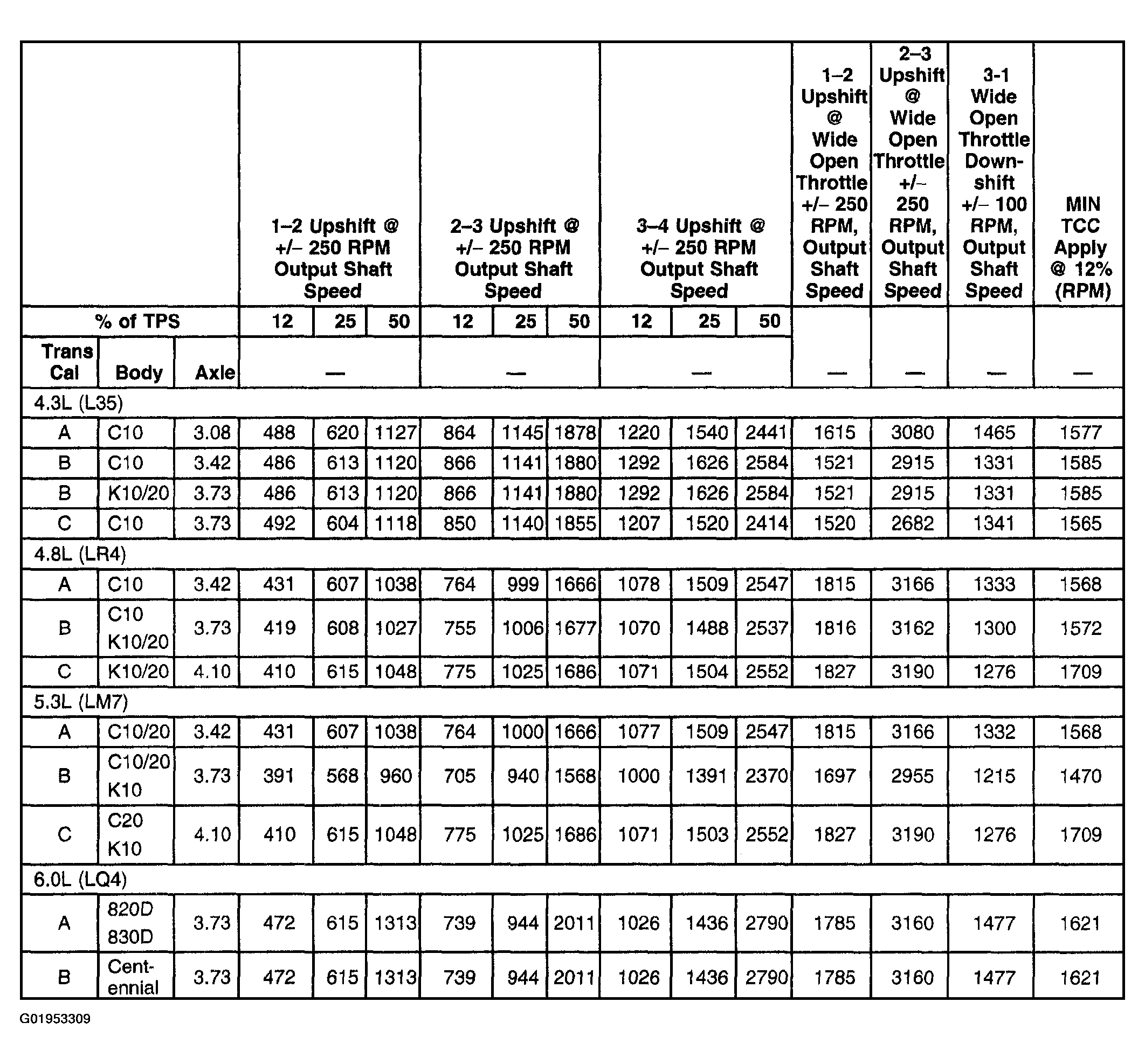

Fig 1: Shift Speed
G01953309Courtesy of GENERAL MOTORS CORP.
