Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Disconnect the vehicle speed sensor (VSS) electrical connector (2).

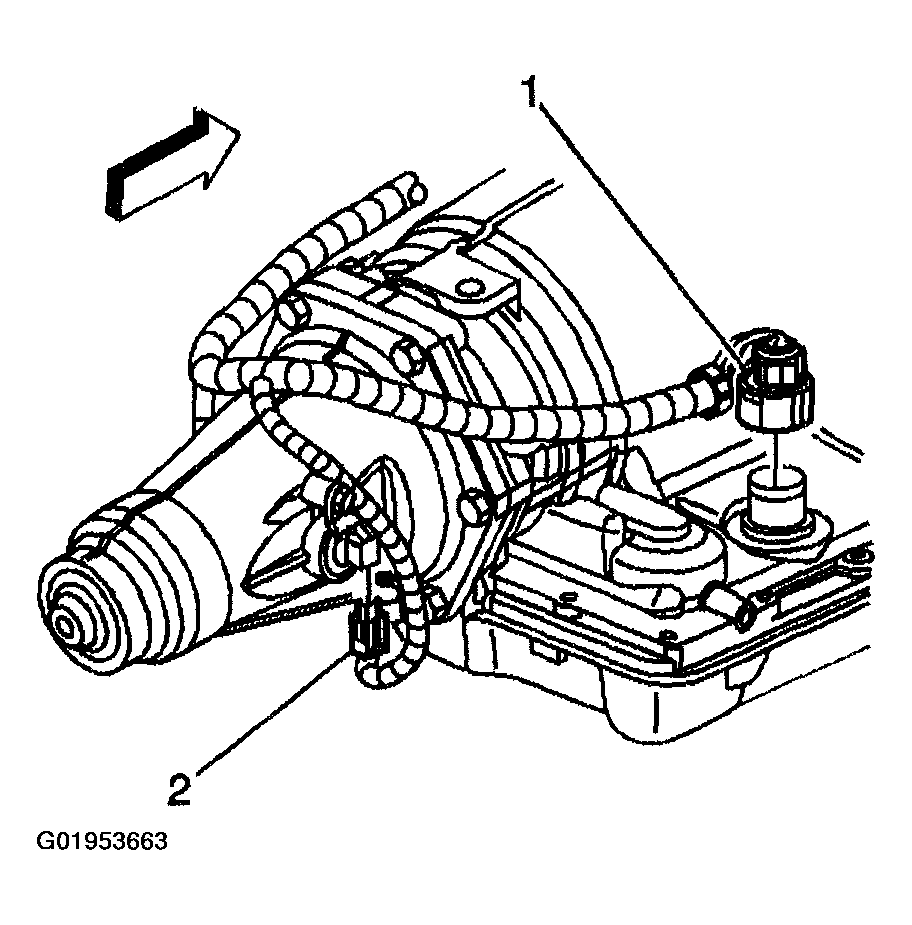

Fig 1: Disconnecting Vehicle Speed Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the VSS bolt (2).
Remove the VSS (1).
Remove the O-ring seal (3).

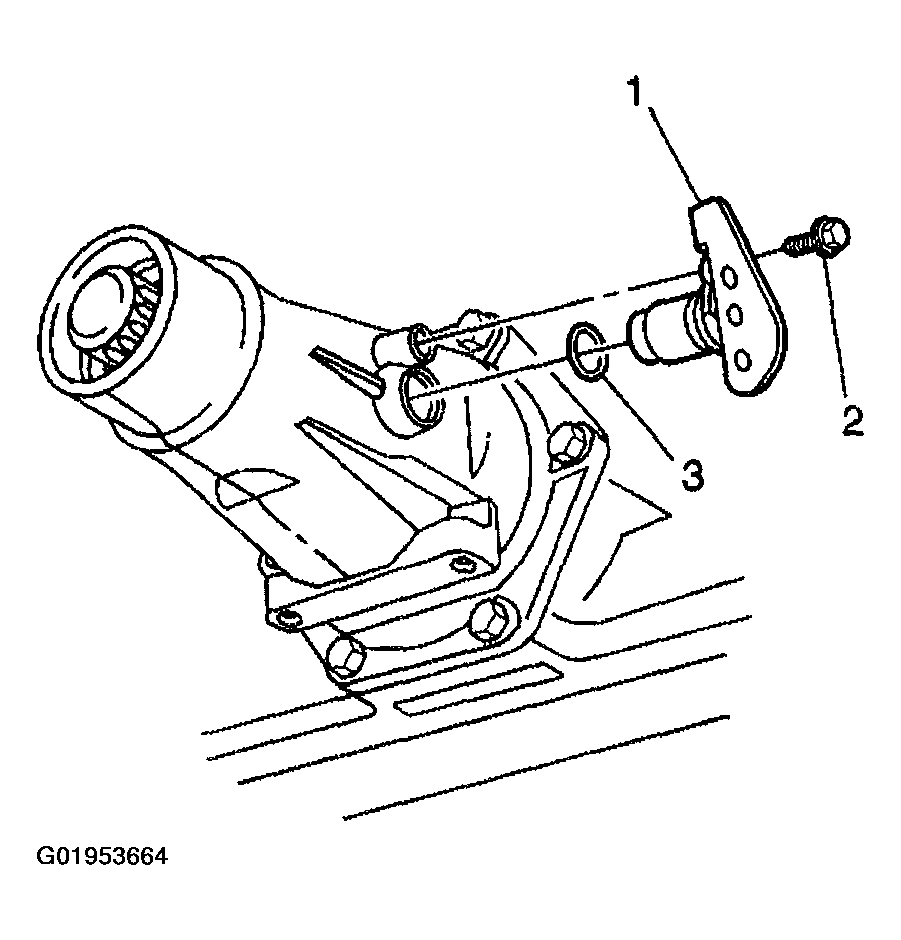

Fig 2: Removing O-Ring Seal, Vehicle Speed Sensor & Bolt
Courtesy of GENERAL MOTORS CORP.
