Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the O-ring seal (3) onto the VSS (1).
Coat the O-ring seal (3) with a thin film of transmission fluid.
Install the VSS (1).
NOTE: Refer to FASTENER NOTICE .
Install the VSS bolt (2).
Tighten

Tighten the bolt to 11 N.m (97 lb in).

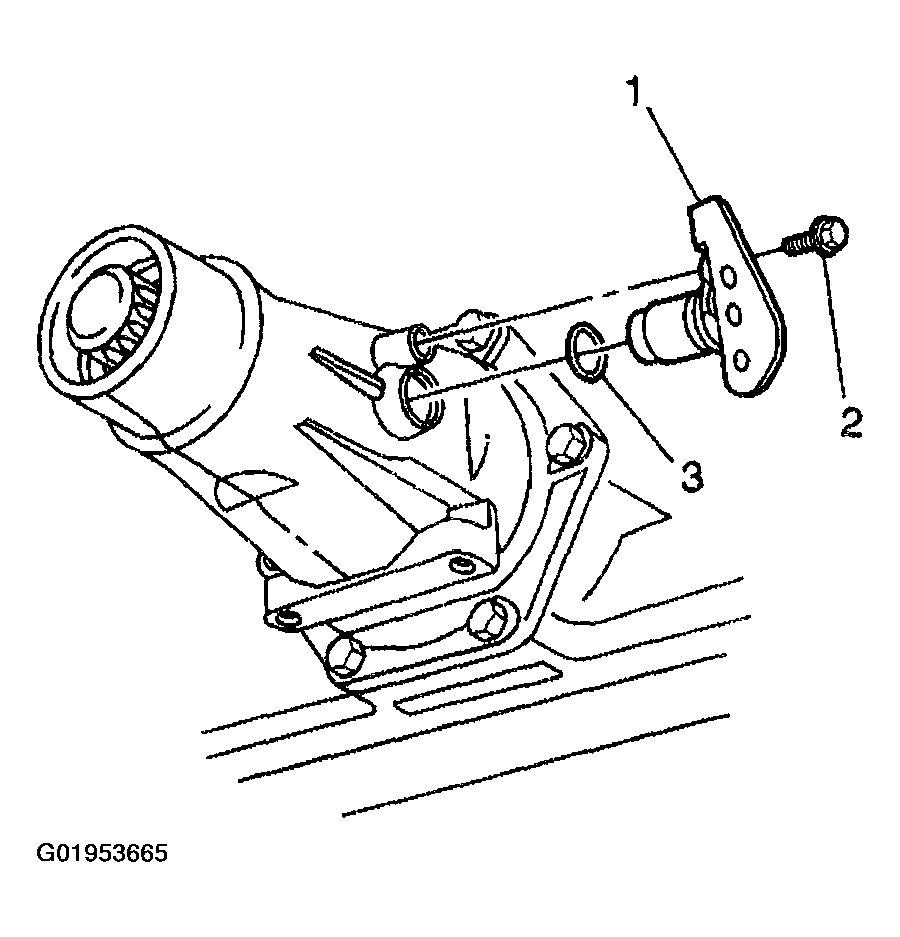

Fig 1: Installing O-Ring Seal, Vehicle Speed Sensor & Bolt
Courtesy of GENERAL MOTORS CORP.
Connect the VSS electrical connector (2).
Lower the vehicle.
Refill the fluid as required.

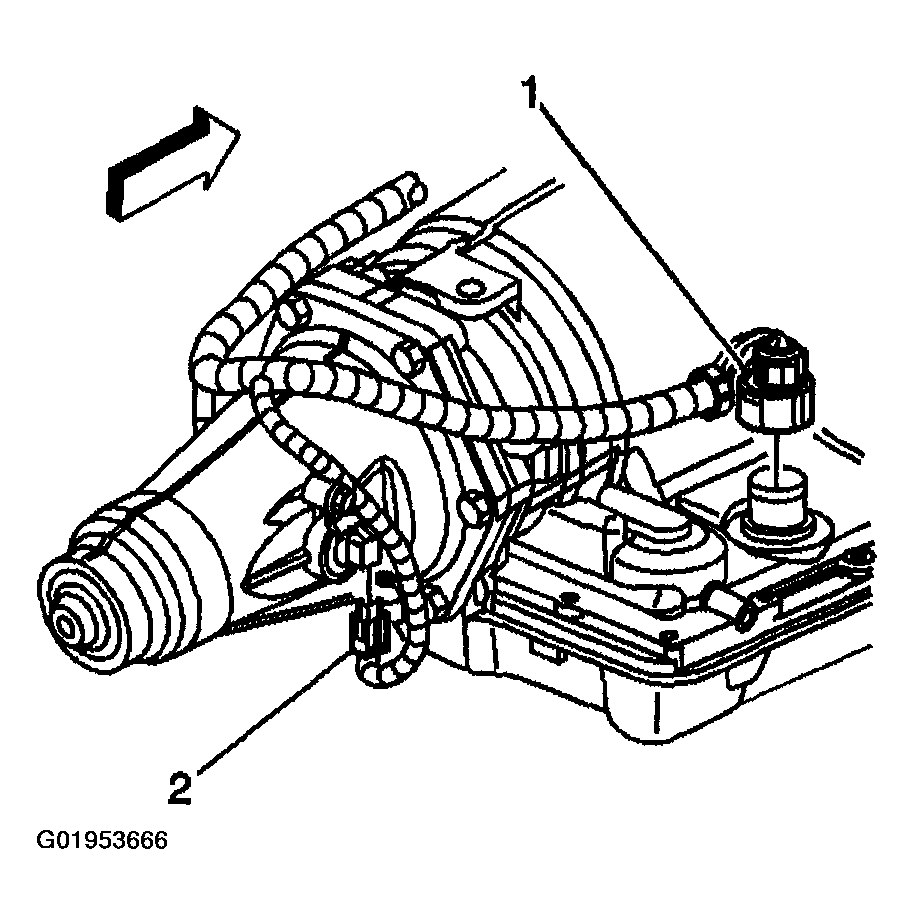

Fig 2: Connecting Vehicle Speed Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
