Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the transmission manual shaft lever is in the mechanical park position.
  2. Align and install the cable to the bracket.
  3. Install the range selector cable end (2) to the transmission range selector lever ball stud (1).
  4. Install the cable clip on the transfer case, if equipped.

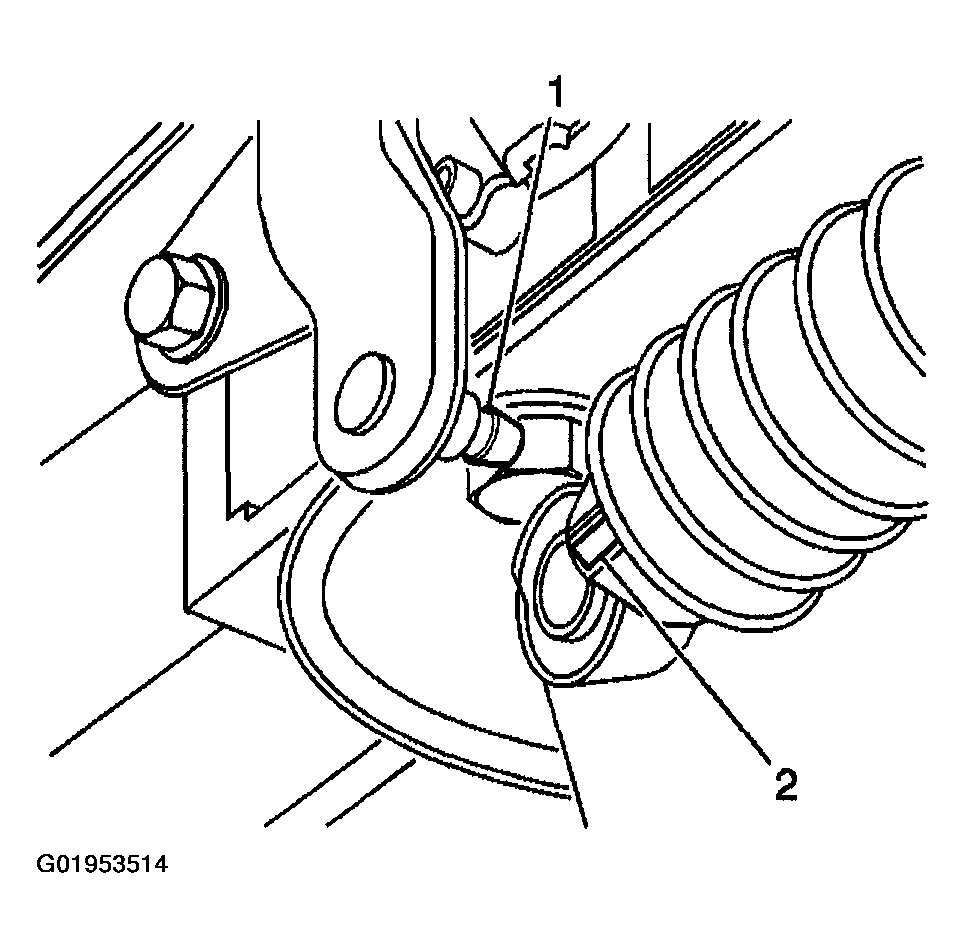

    Fig 1: Installing Range Selector Cable End
    G01953514Courtesy of GENERAL MOTORS CORP.
  5. Install the retainer that secures the cable to the bracket.

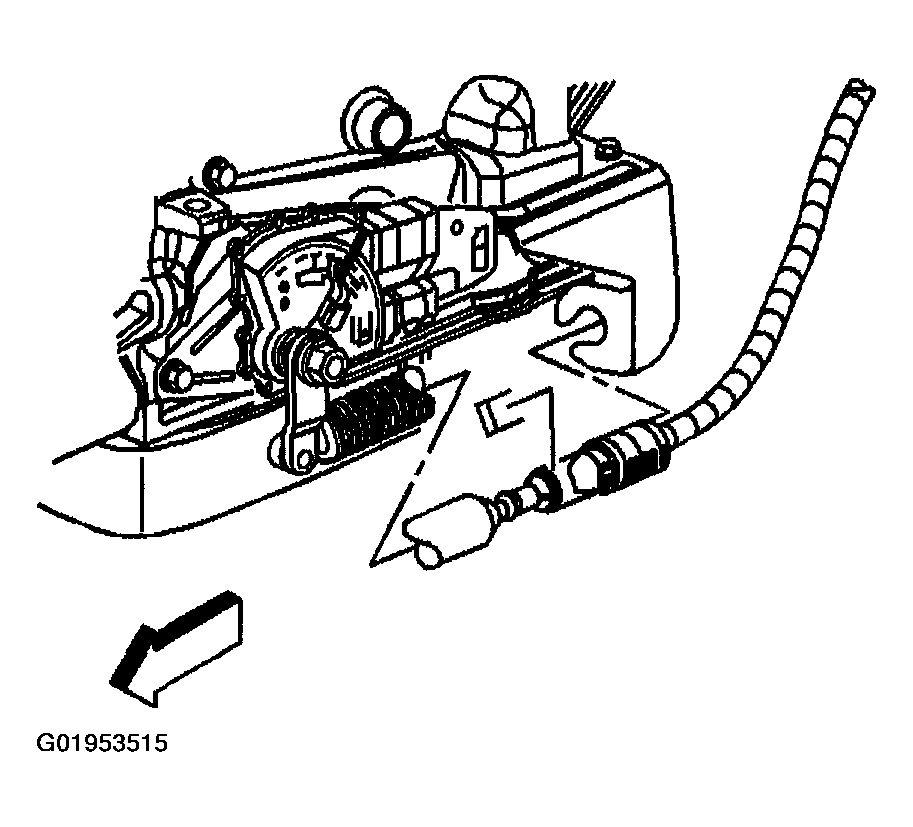

    Fig 2: Installing Retainer Securing Cable To Bracket
    G01953515Courtesy of GENERAL MOTORS CORP.
  6. Install the clips on the cable to the floor panel reinforcement.
  7. Lower the vehicle.

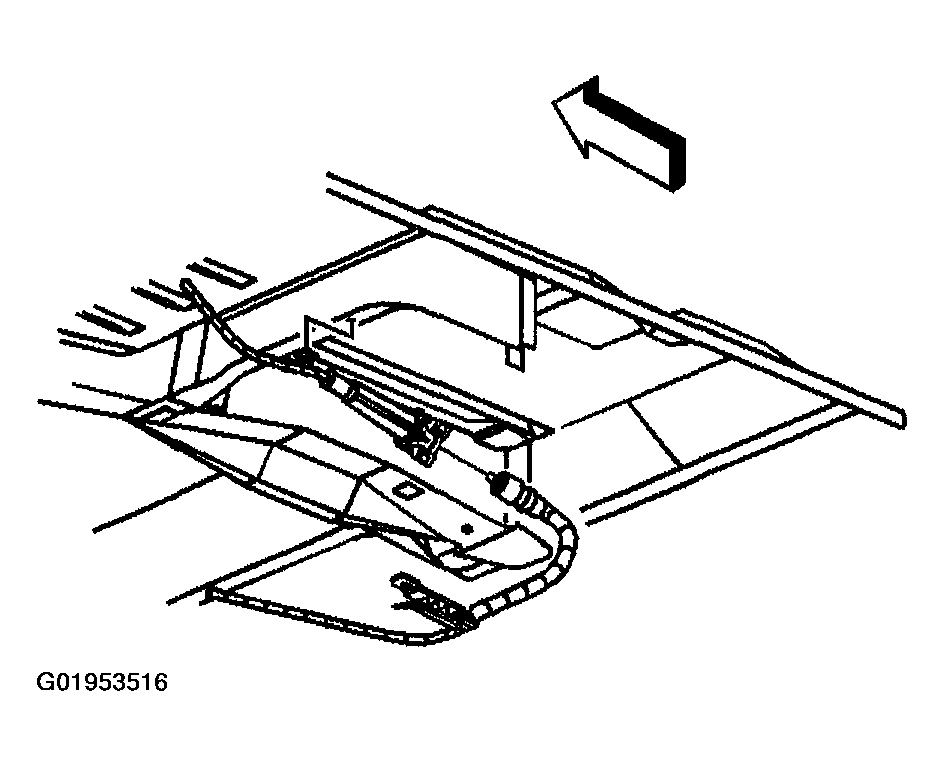

    Fig 3: Installing Clips
    G01953516Courtesy of GENERAL MOTORS CORP.
  8. Install the cable grommet to the floor panel.

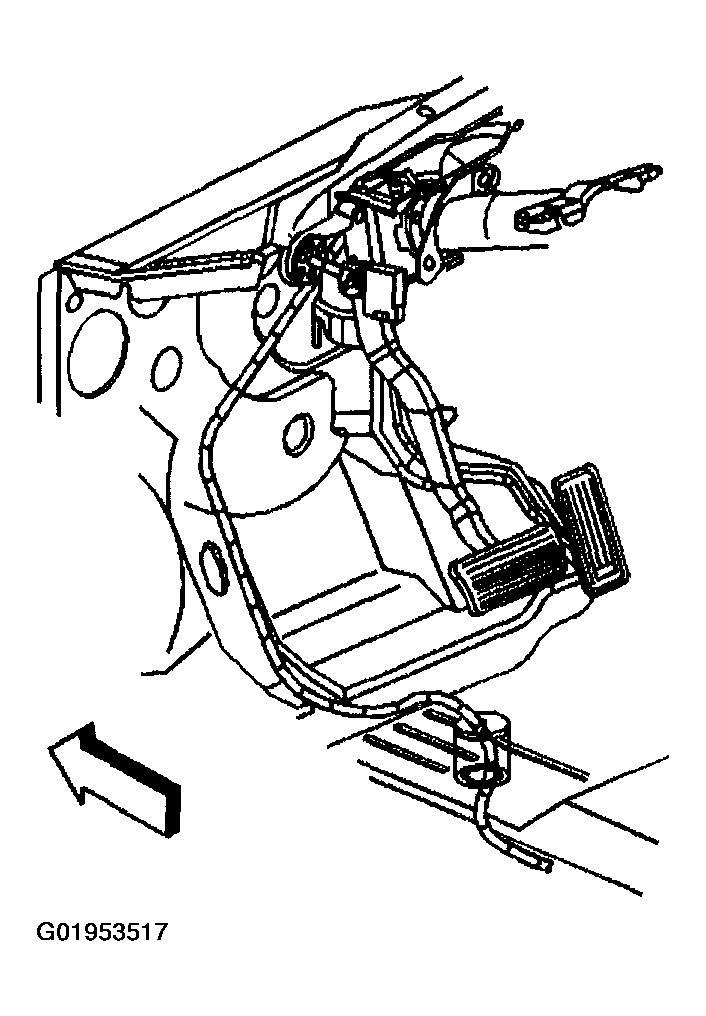

    Fig 4: Installing Cable Grommet To Floor Panel
    G01953517Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Avoid unnecessary twisting/bending of the range selector cable when installing the cable to the support.
  9. Install the range selector cable to the support.

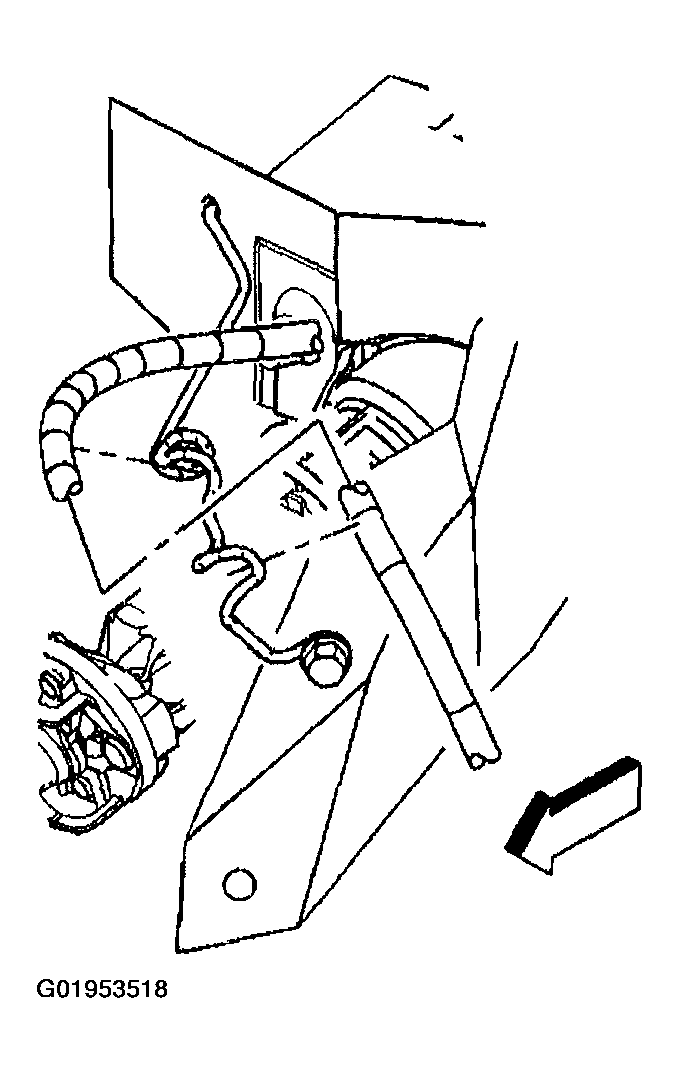

    Fig 5: Installing Range Selector Cable To Support
    G01953518Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  10. Install the bolt securing the cable support to the brace.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

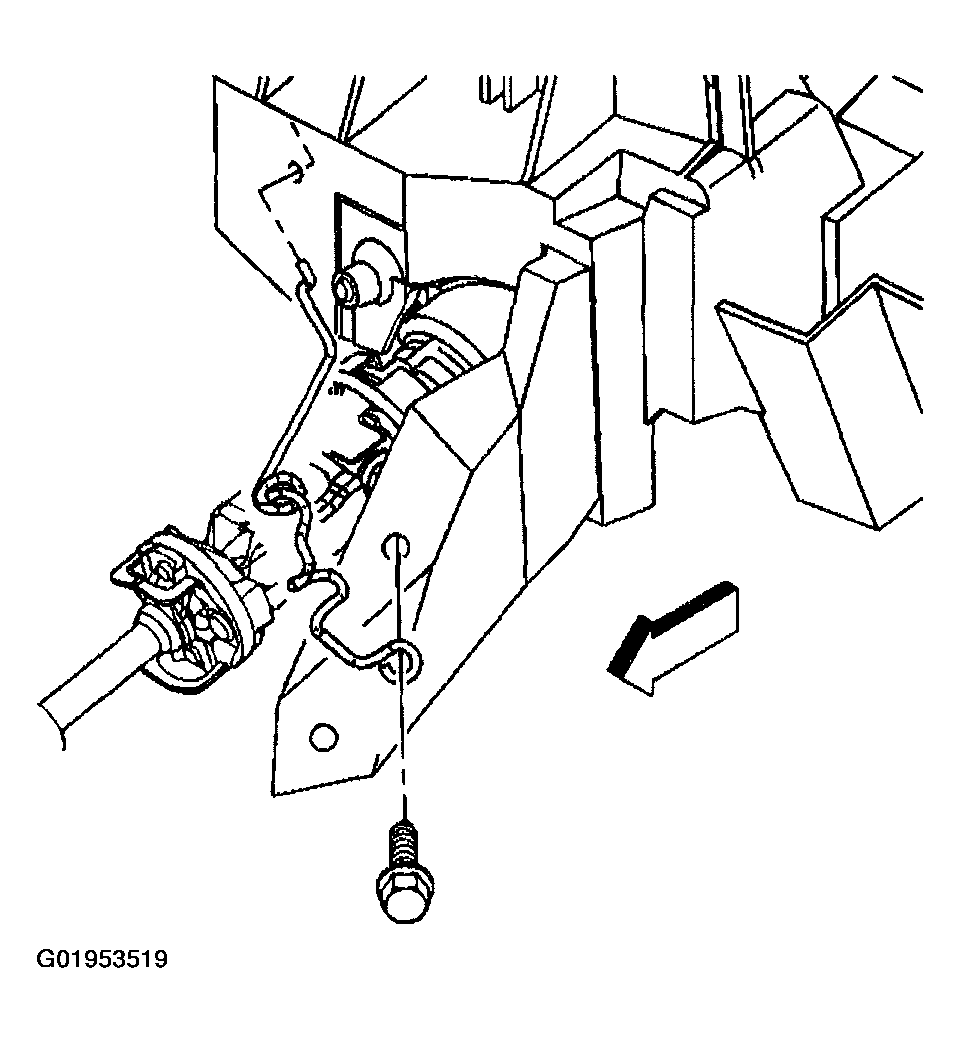

    Fig 6: Installing Cable Support Brace Bolt
    G01953519Courtesy of GENERAL MOTORS CORP.
  11. Install the cable to the steering column bracket.
  12. Ensure the tangs fully seat (snap) into the steering column bracket.
  13. Install the cable end to the steering column ball stud.

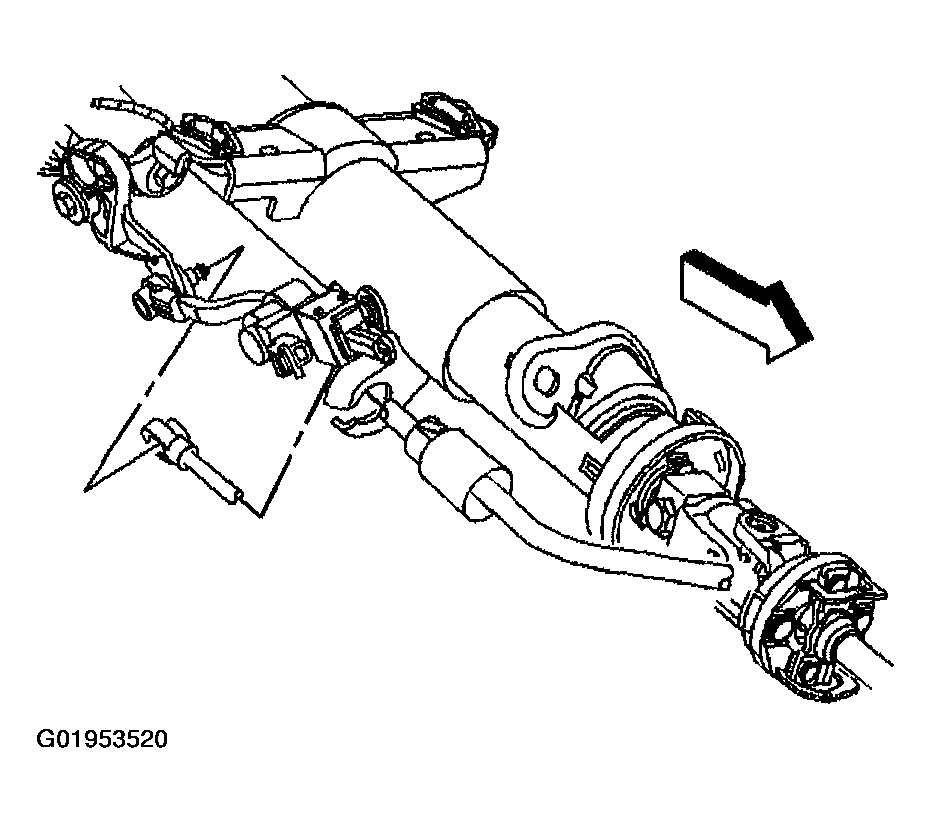

    Fig 7: Installing Cable To Steering Column Bracket
    G01953520Courtesy of GENERAL MOTORS CORP.
  14. Install the retainer securing the cable to the steering column.
  15. Position the carpet and insulation around the driver's area.
  16. Install the driver's seat. Refer to SEAT REPLACEMENT-FRONT BUCKET .
  17. Install the instrument panel knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
  18. Test the transmission for proper shift operation.
  19. If all of the gear positions cannot be achieved, adjust the cable. Refer to Automatic Transmission Range Selector Cable Adjustment   .
    Fig 8: Installing Cable Retainer
    G01953521Courtesy of GENERAL MOTORS CORP.
