Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission range selector cable bracket.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the transmission range selector cable bracket bolts (1).

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

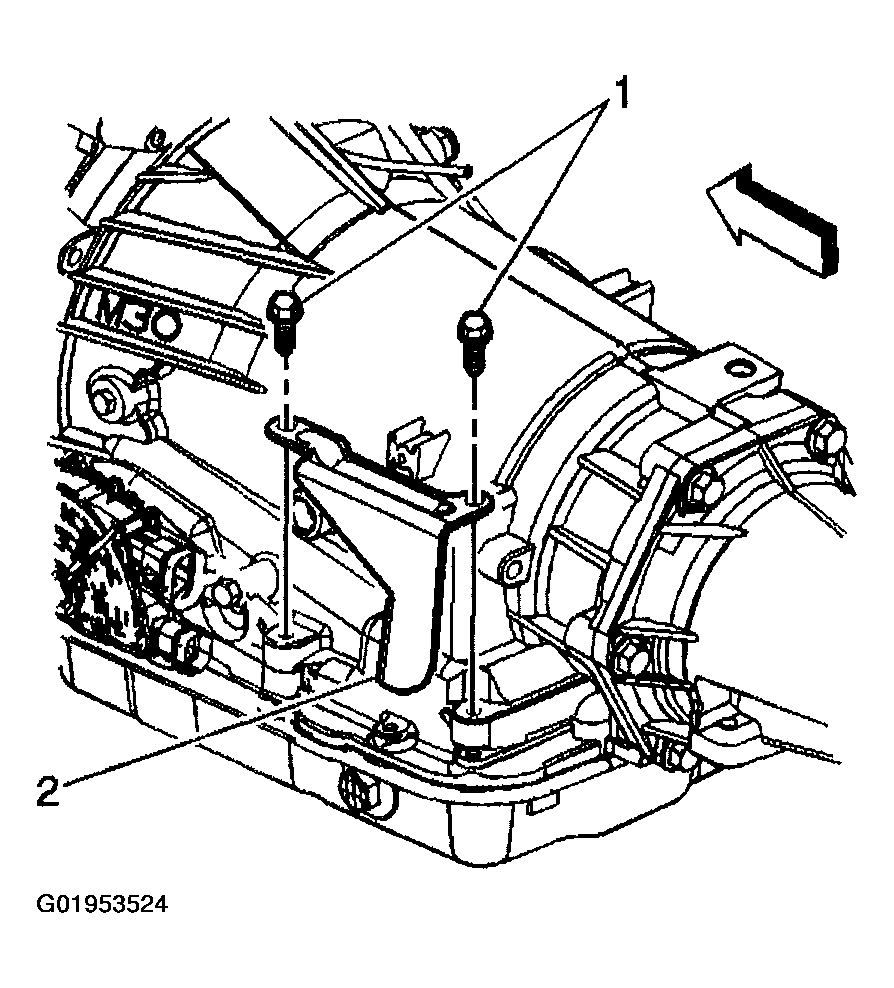

    Fig 1: Transmission Range Selector Cable Bracket Bolts
    G01953524Courtesy of GENERAL MOTORS CORP.
  3. Align and install the cable to the bracket.
  4. Install the retainer that secures the cable to the bracket.
  5. Lower the vehicle.
  6. Check the vehicle for proper operation. If cable adjustment is necessary, refer to Automatic Transmission Range Selector Cable Adjustment   .

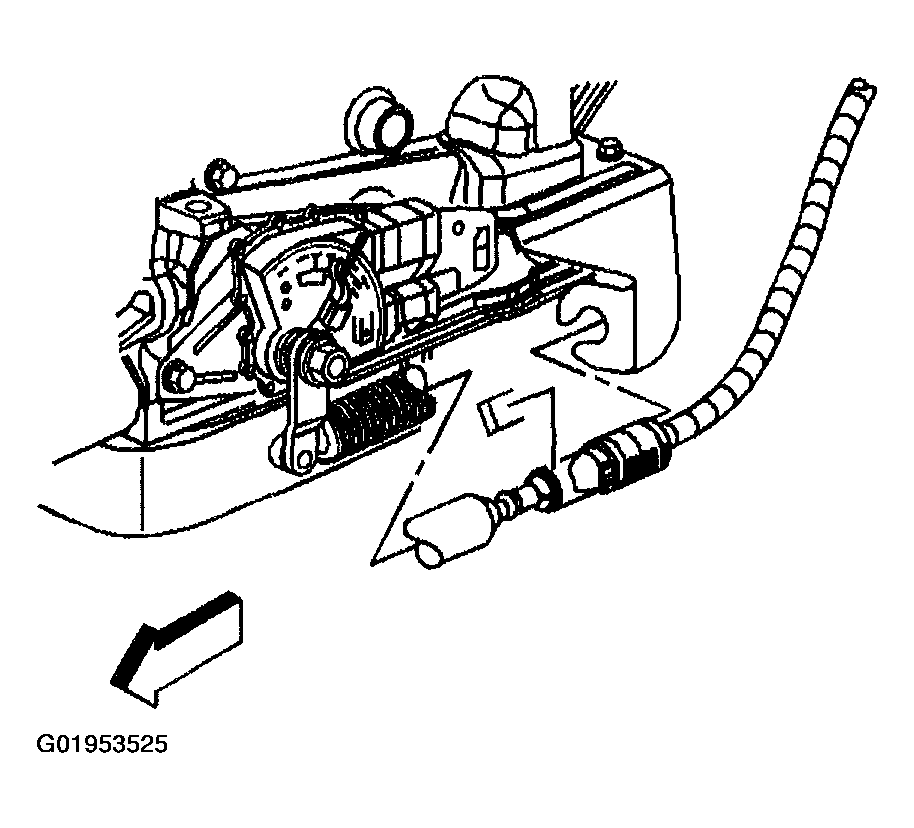

    Fig 2: Installing Cable To Bracket
    G01953525Courtesy of GENERAL MOTORS CORP.
