Component Location

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

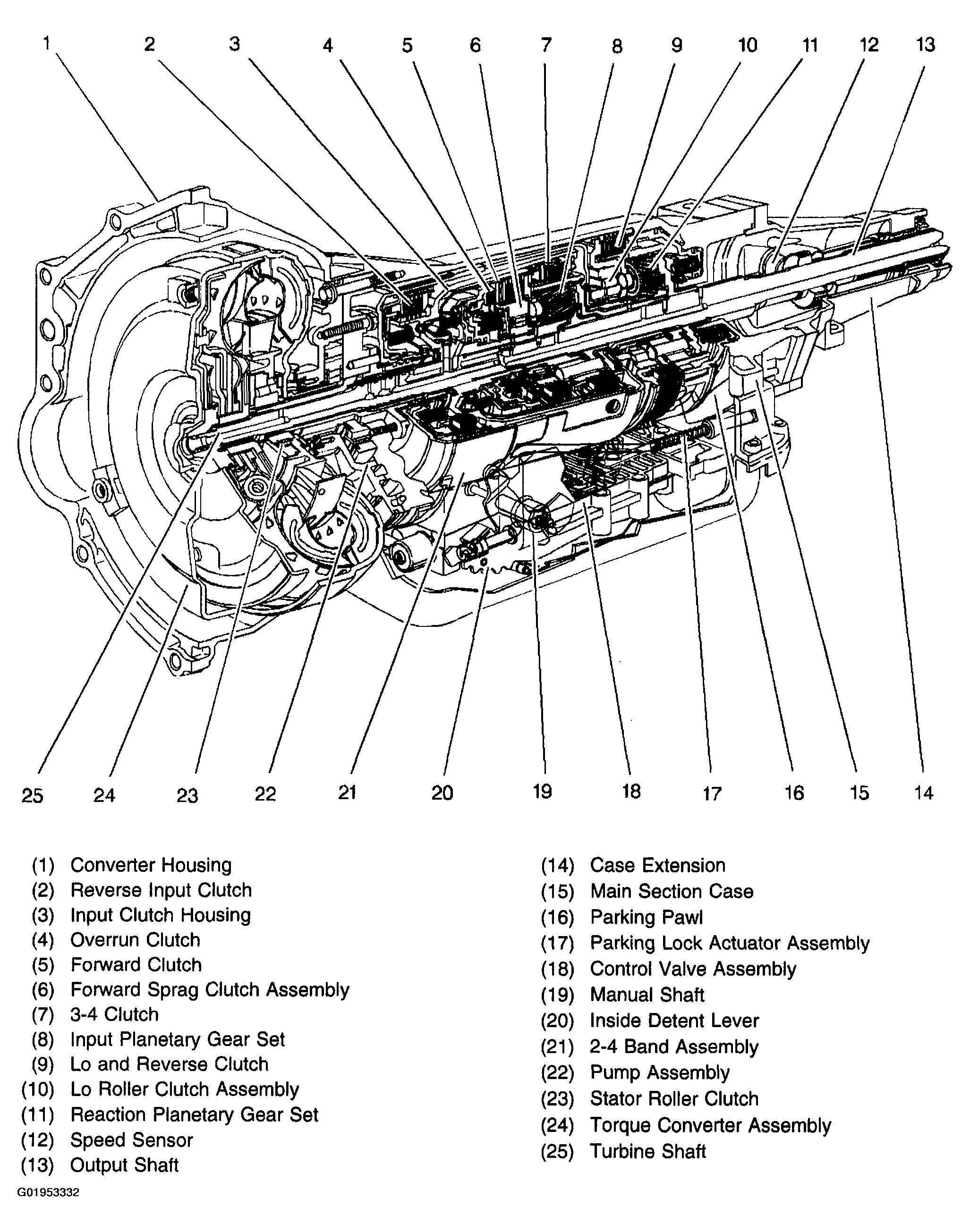

Fig 1: Components

Courtesy of GENERAL MOTORS CORP.

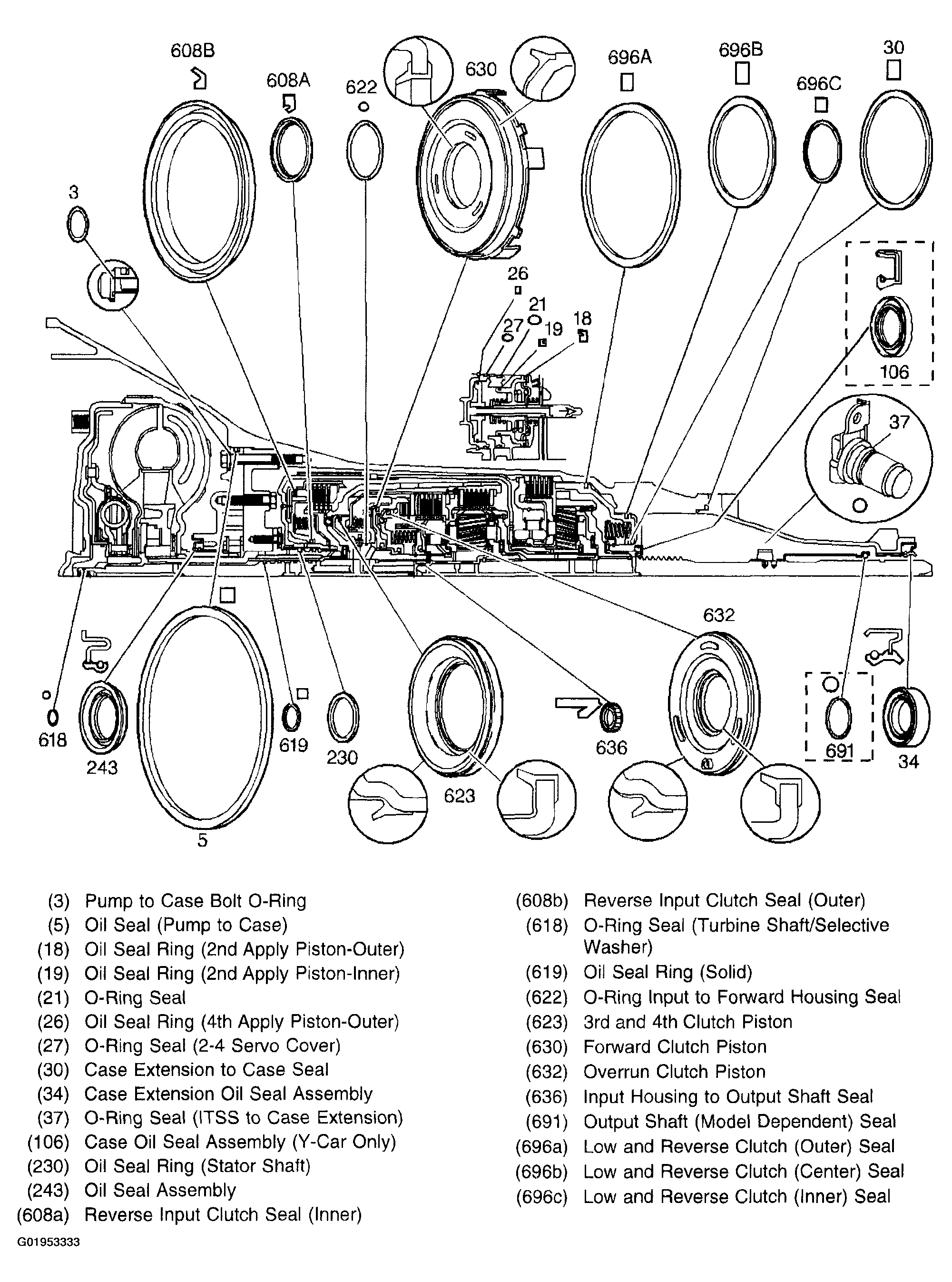

Fig 2: Seals

Courtesy of GENERAL MOTORS CORP.

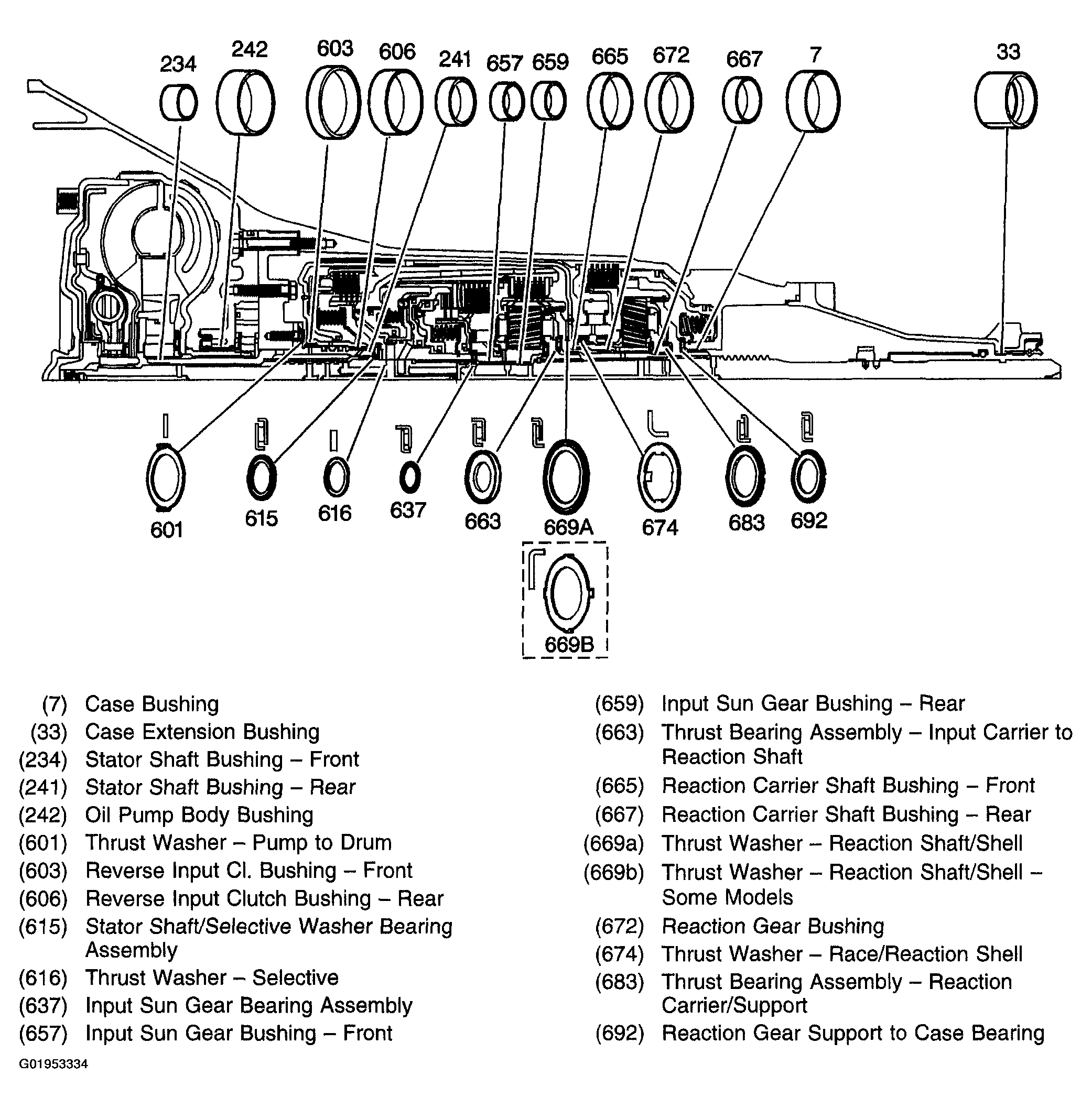

Fig 3: Bearings & Bushings

Courtesy of GENERAL MOTORS CORP.

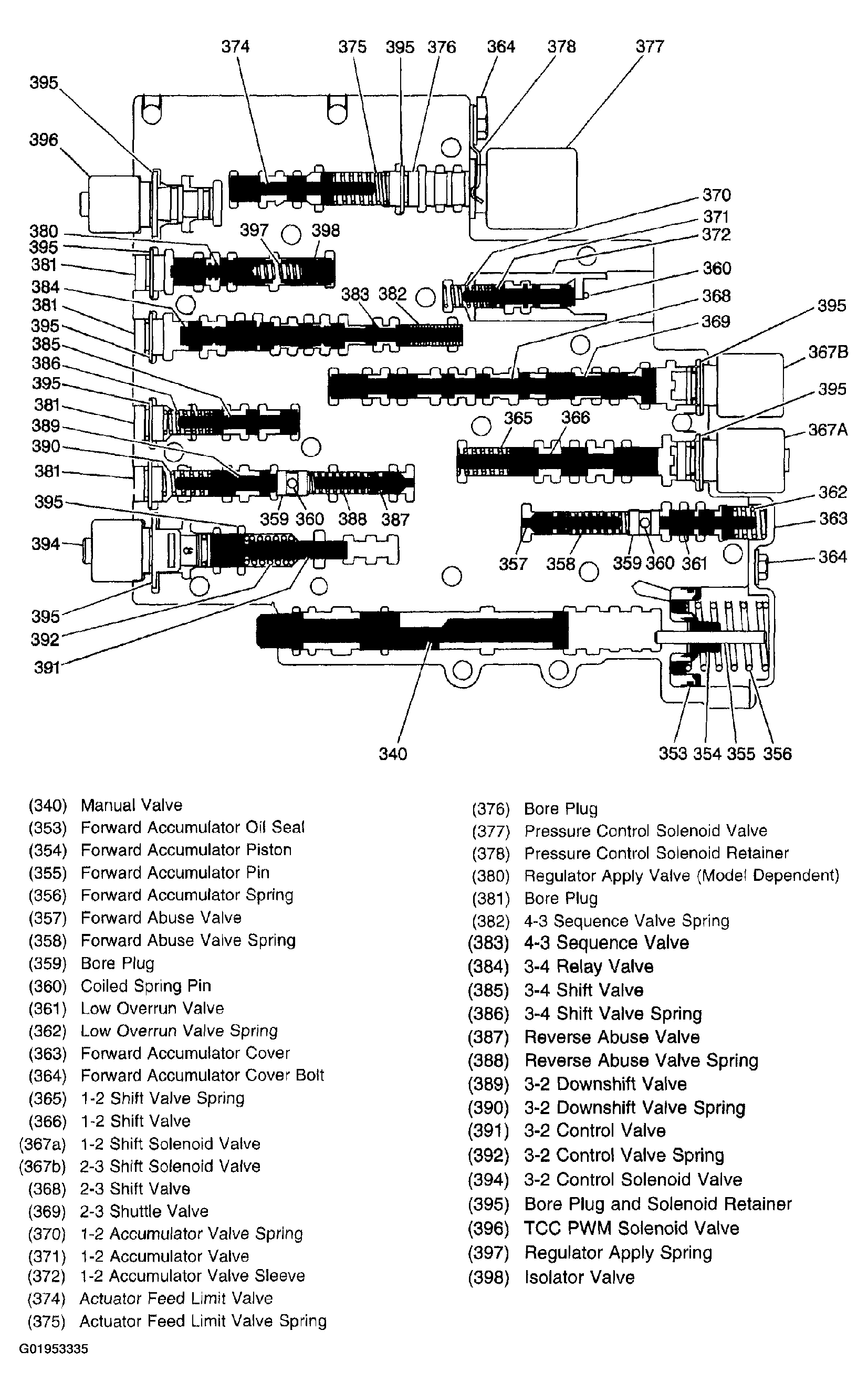

Fig 4: Valve Trains

Courtesy of GENERAL MOTORS CORP.
