Automatic Transmission Related Connector End Views
WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

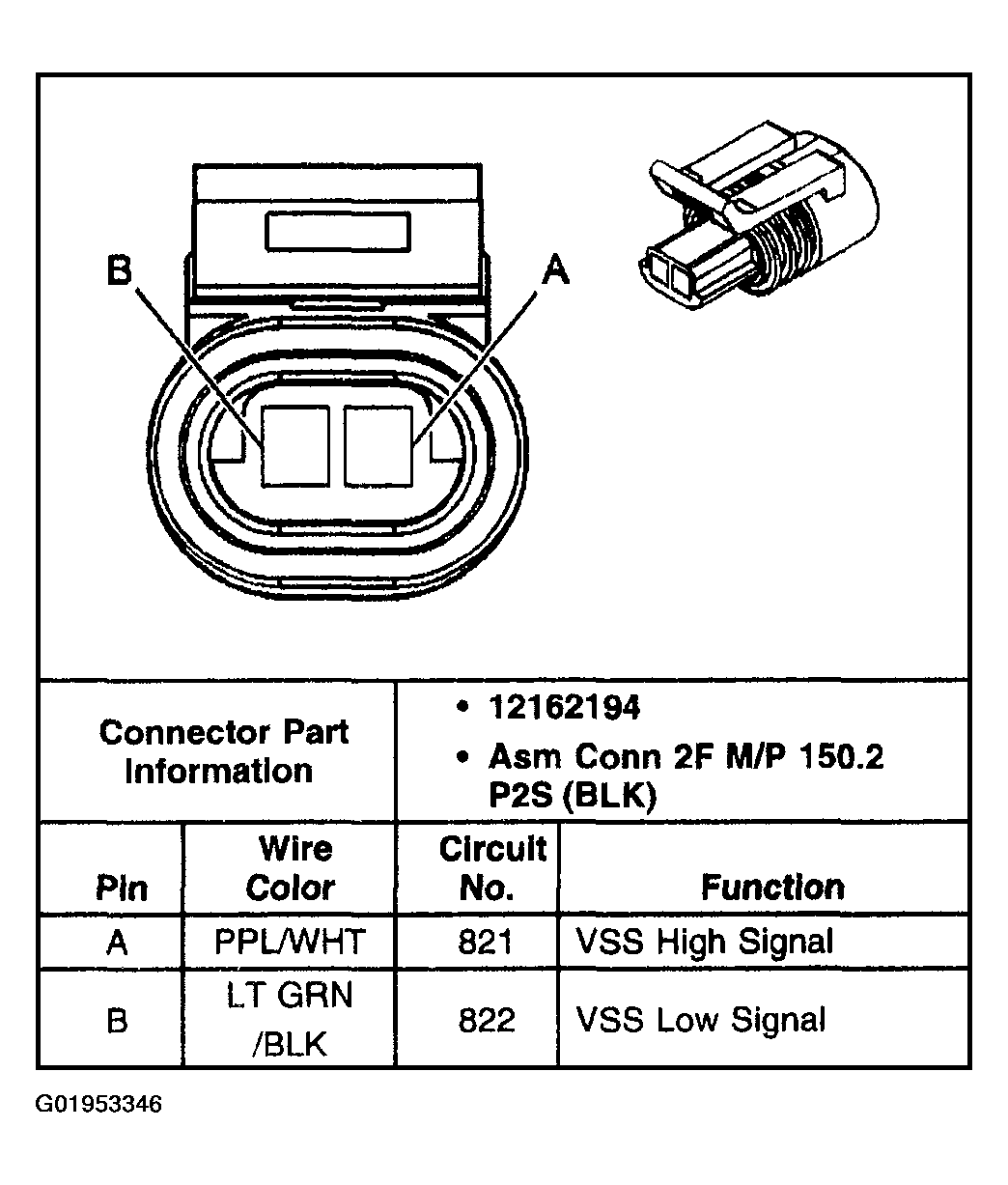

Fig 1: Vehicle Speed Sensor Assembly Connector, Wiring Harness Side
Courtesy of GENERAL MOTORS CORP.

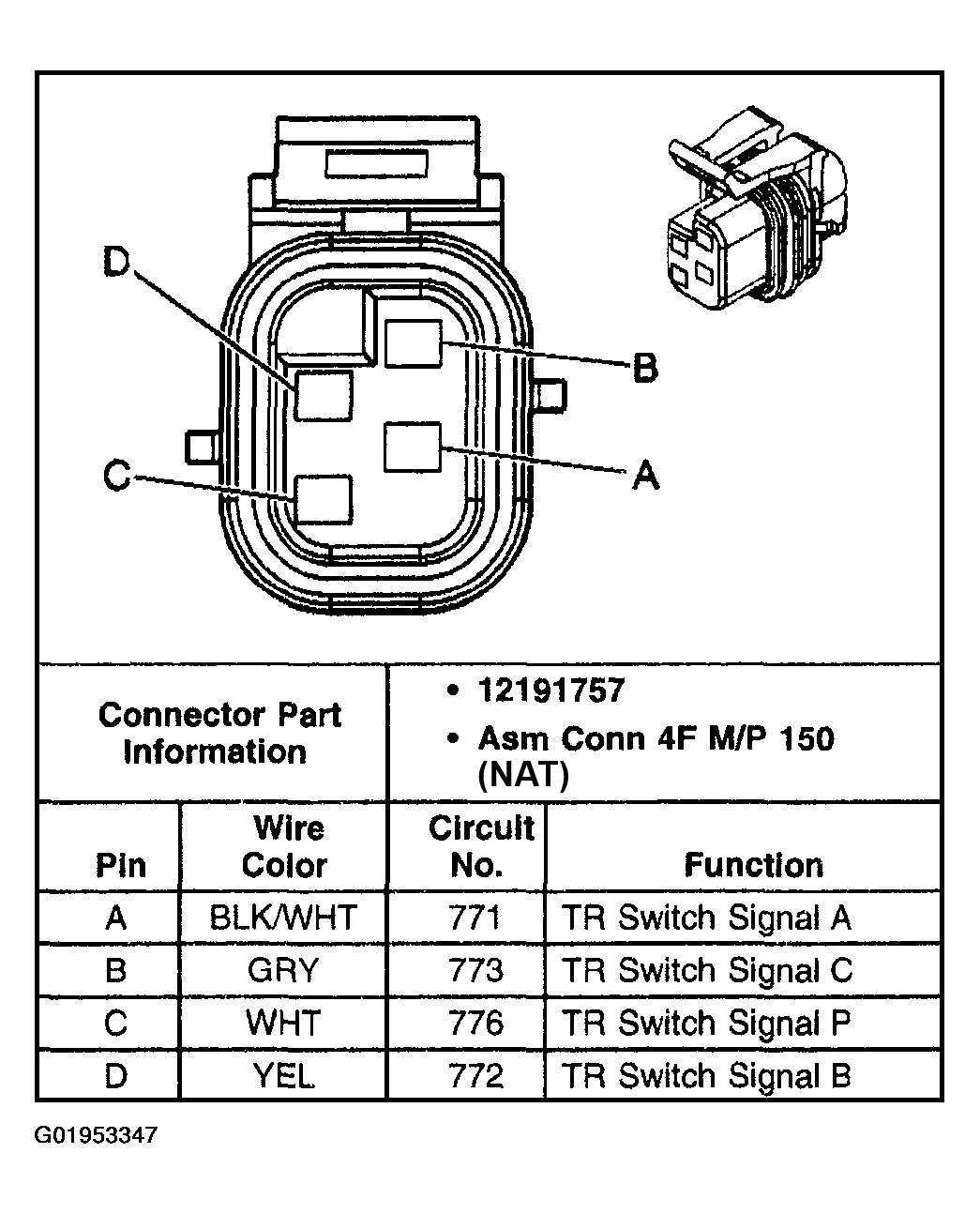

Fig 2: Park/Neutral Position Switch Connector (C2), Wiring Harness Side
Courtesy of GENERAL MOTORS CORP.

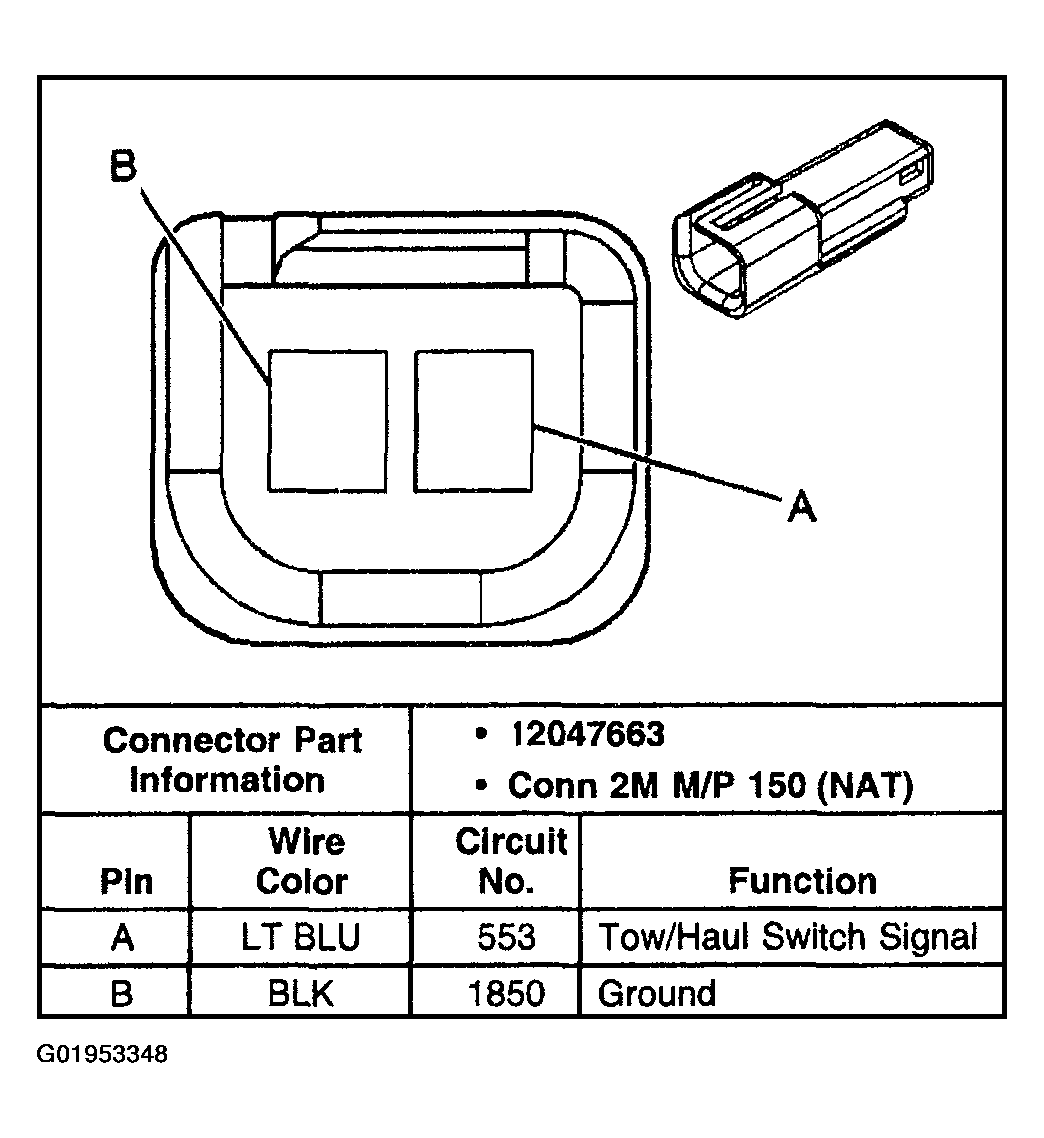

Fig 3: Tow/Haul Switch Connector, Column Wiring Harness Side
