Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Remove the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE or PROPELLER SHAFT REPLACEMENT - TWO PIECE .

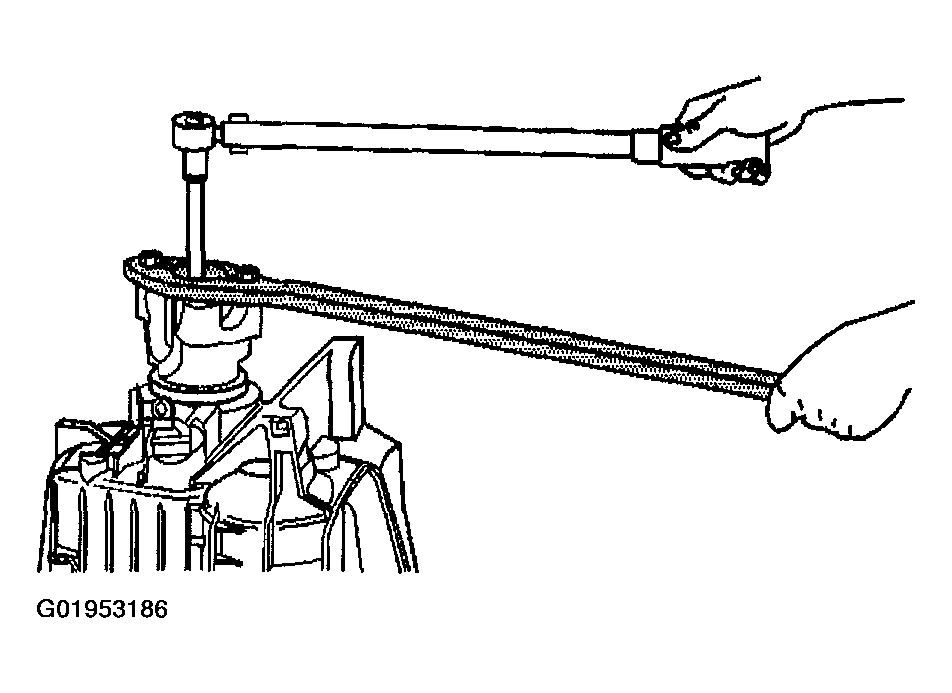

Fig 1: Removing Yoke Nut
Courtesy of GENERAL MOTORS CORP.
Using the J 8614-01 to hold the transmission yoke, remove and discard the yoke nut.
Remove the yoke.

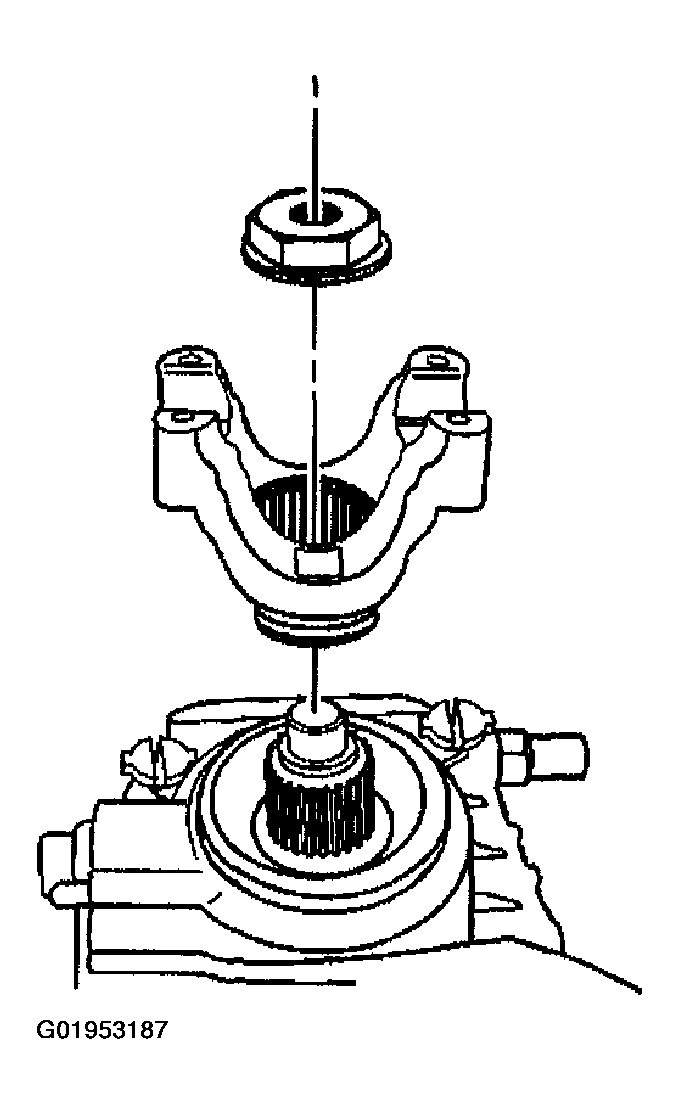

Fig 2: Removing Yoke
Courtesy of GENERAL MOTORS CORP.
Using J 6125-1B (1) and J 23129 (2), remove the rear oil seal.

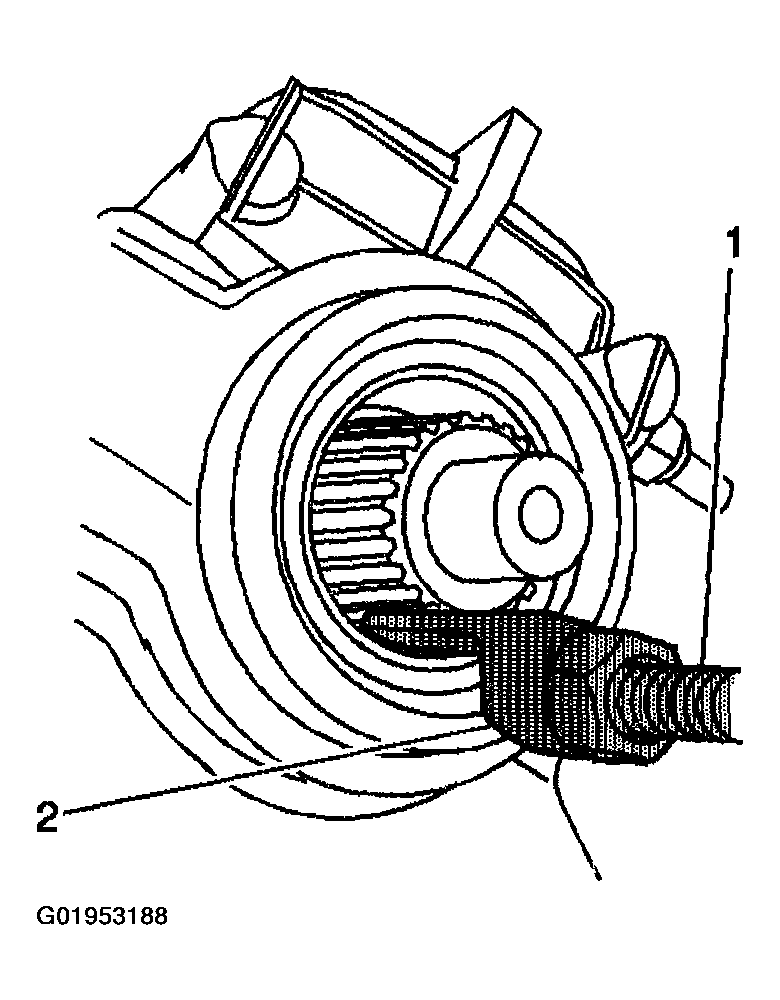

Fig 3: Removing Rear Oil Seal
Courtesy of GENERAL MOTORS CORP.
