Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Broken or deteriorated mounts can cause misalignment and destruction of certain drive train components. When a single mount breaks, the remaining mounts are subjected to abnormally high stresses.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the transmission mount to crossmember nuts.
  3. Remove the transmission mount bolts to the transmission.

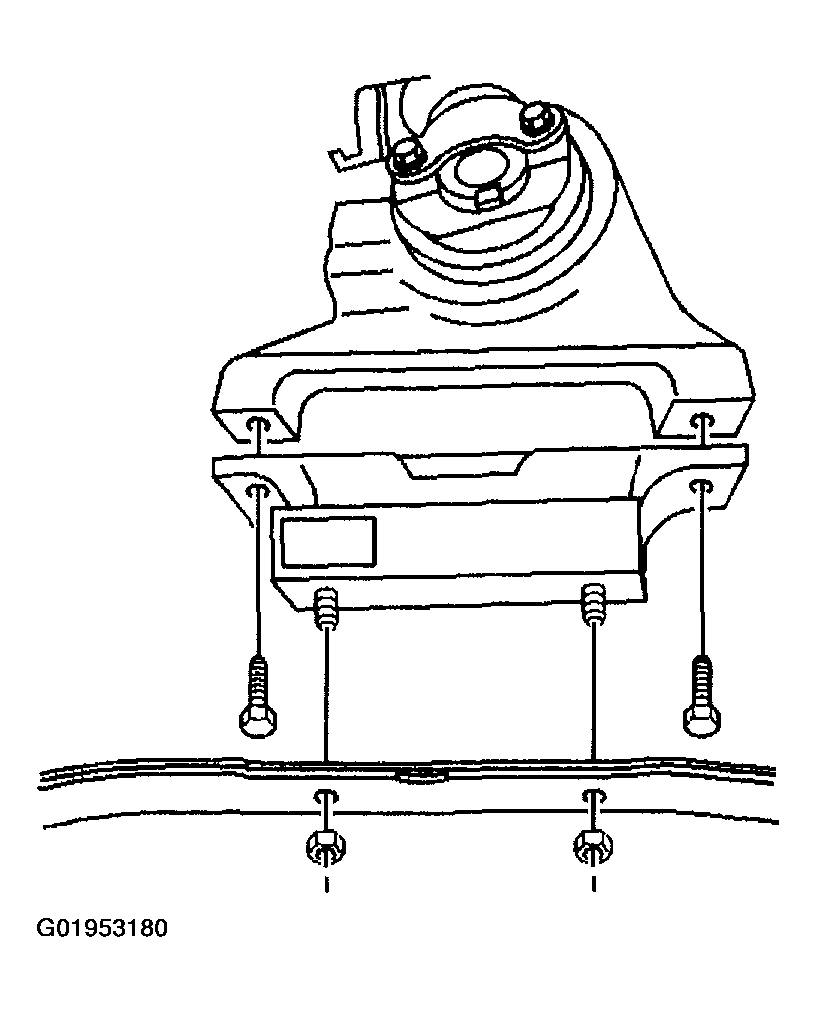

    Fig 1: Removing Transmission Mount Bolts
    G01953180Courtesy of GENERAL MOTORS CORP.
  4. Raise the transmission using a suitable transmission jack, just enough in order to permit the removal of the mount.
  5. Remove the transmission mount.
