Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear transmission mount.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the transmission mount bolts.

    Tighten

    Tighten the transmission mount bolts to 50 N.m (37 lb ft).

  3. Lower the transmission.
  4. Install the transmission mount to crossmember nuts.

    Tighten

    Tighten the transmission mount to crossmember nuts to 54 N.m (40 lb ft).

  5. Lower the vehicle.

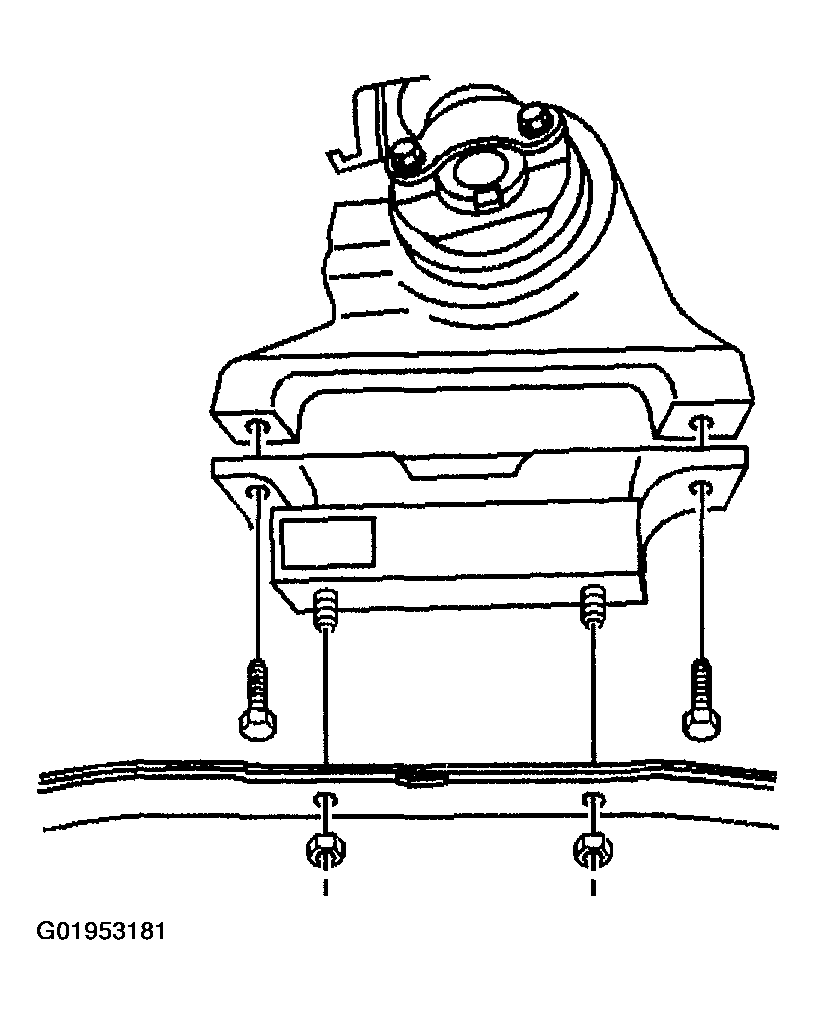

    Fig 1: Installing Transmission Mount Bolts
    G01953181Courtesy of GENERAL MOTORS CORP.
