Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the NEW seal in the front case with the part number facing out.
  2. Using J 44731  install the input shaft seal.

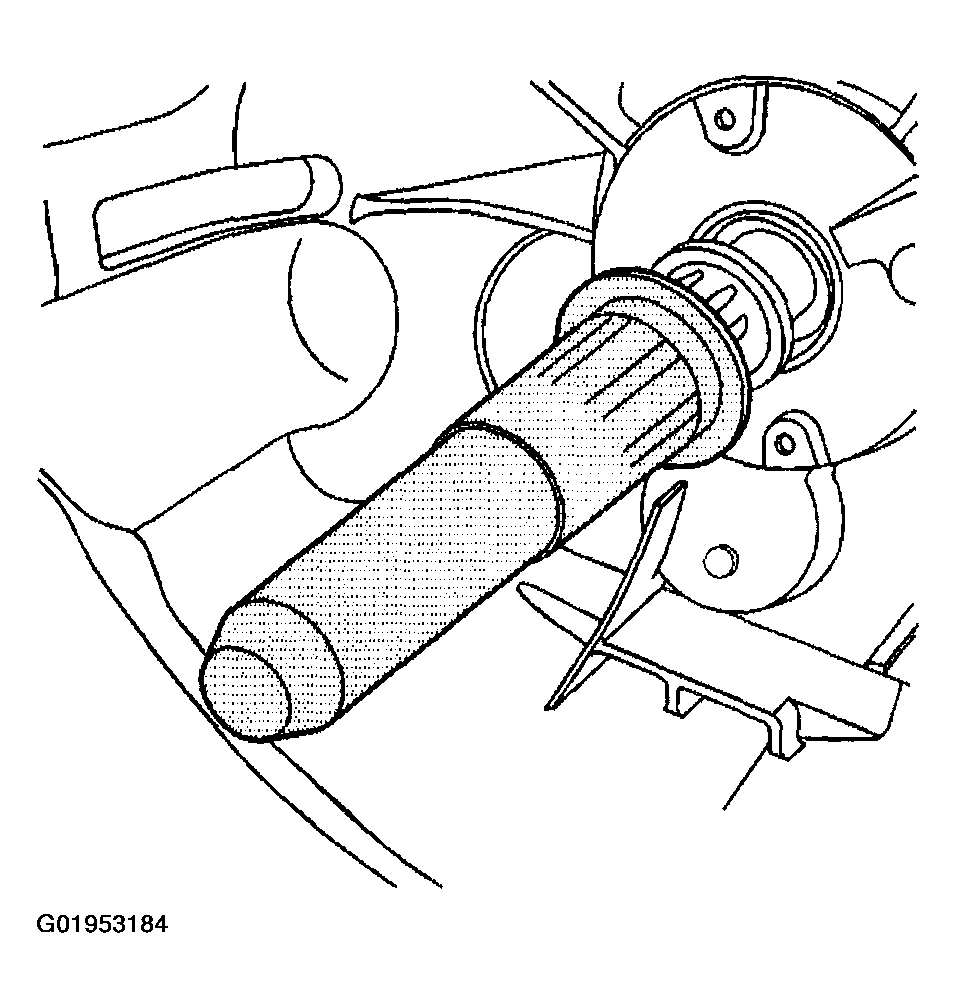

    Fig 1: Installing Input Shaft Seal
    G01953184Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Position the clutch actuator cylinder.
  4. Install the clutch actuator cylinder bolts.

    Tighten

    Tighten the bolts to 8 N.m (71 lb in).

  5. Install the transmission. Refer to Transmission Replacement   .
  6. Install the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE or PROPELLER SHAFT REPLACEMENT - TWO PIECE .
  7. Check the transmission fluid level. Add if necessary.
  8. Lower the vehicle.

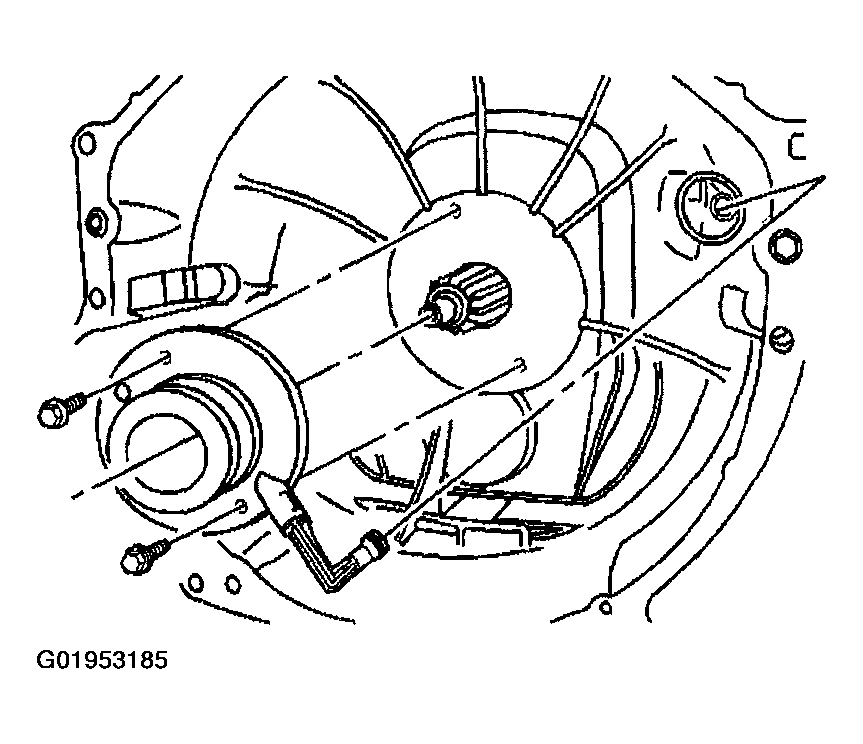

    Fig 2: Installing Clutch Actuator Cylinder & Bolts
    G01953185Courtesy of GENERAL MOTORS CORP.
