Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the oil fill plug.
  3. Place a suitable drain pan under the transmission in order to catch the drained transmission fluid.
  4. Remove the oil drain plug.
  5. Remove any old sealant from the transmission housing and plugs.

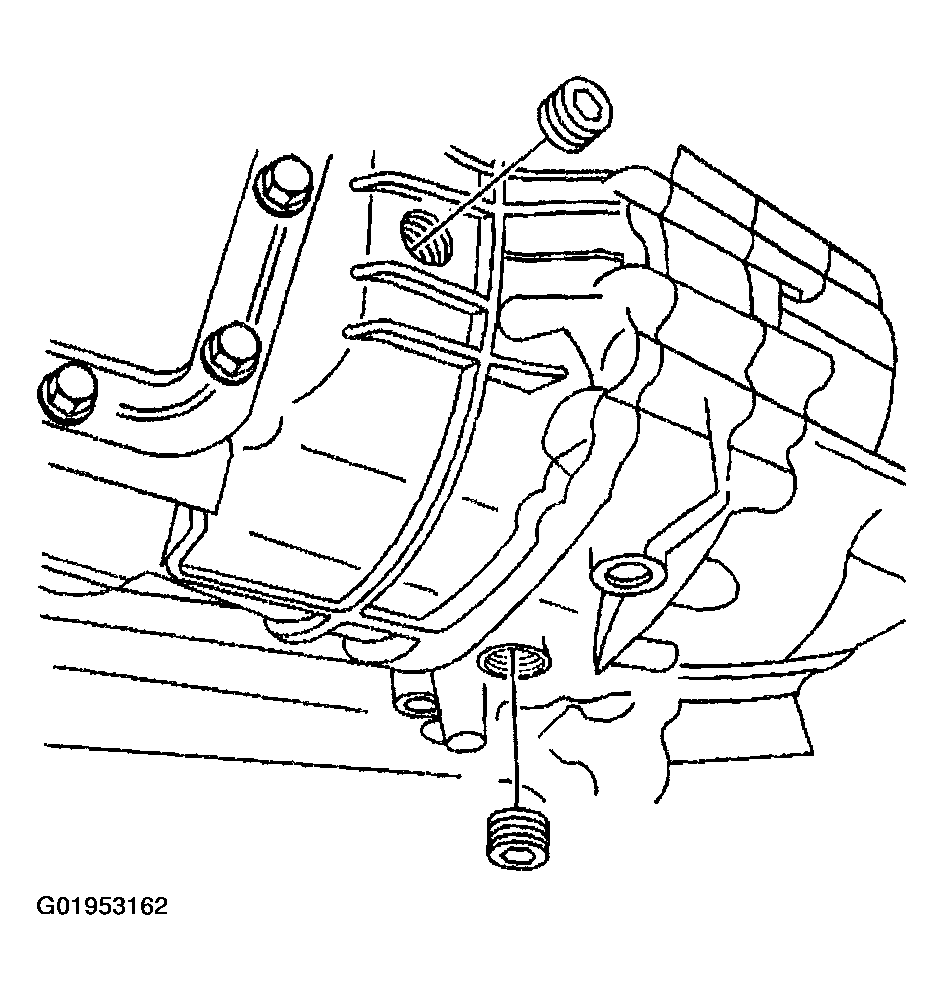

    Fig 1: Removing Oil Drain Plug
    G01953162Courtesy of GENERAL MOTORS CORP.
