Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the control lever.
    IMPORTANT: Loosen, DO NOT remove the shift lever assembly adjustment nut if replacing the control lever.
    Fig 1: Removing Control Lever
    G01953165Courtesy of GENERAL MOTORS CORP.
  2. Remove the control lever boot retainer plastic retainers, if necessary.
  3. Remove the control lever boot retainer, if necessary.

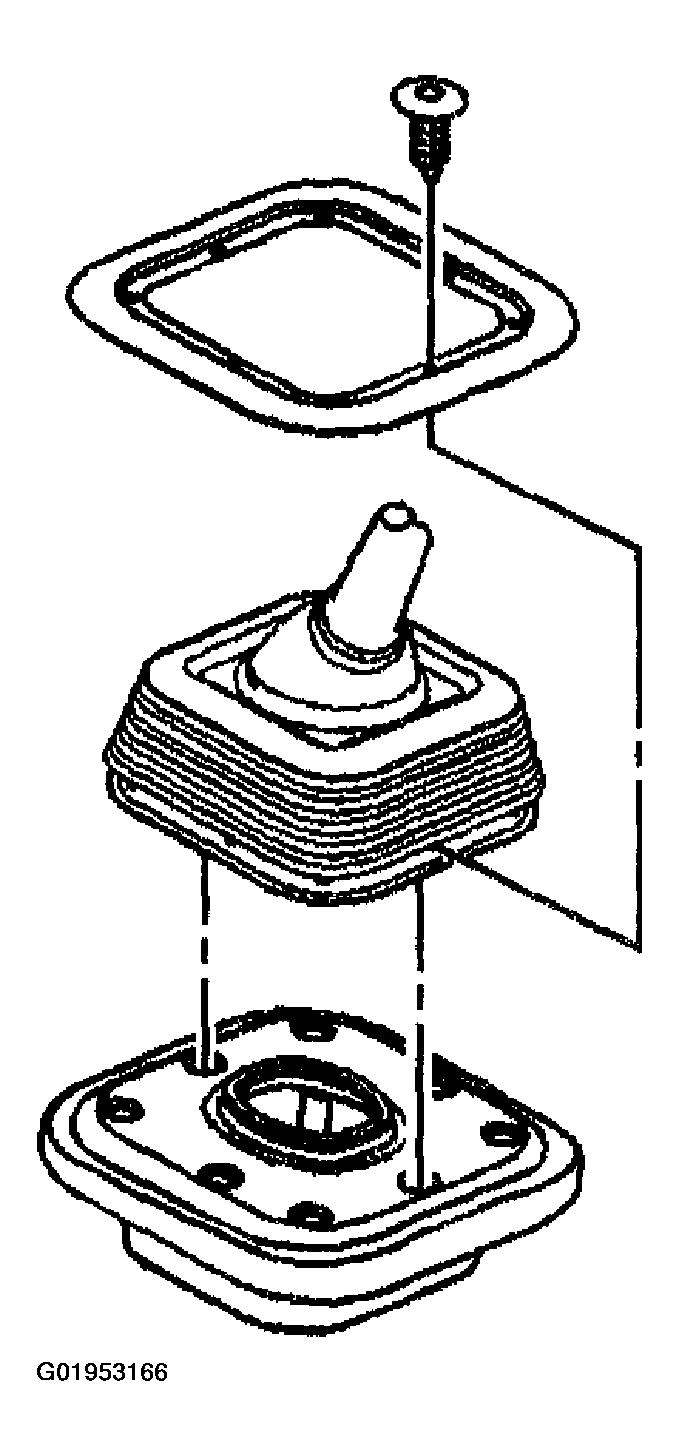

    Fig 2: Removing Control Lever Boot Retainer
    G01953166Courtesy of GENERAL MOTORS CORP.
  4. Remove the control lever boot screws, if necessary.
  5. Remove the control lever boot, if necessary.
  6. Remove the control lever insulator, if necessary.

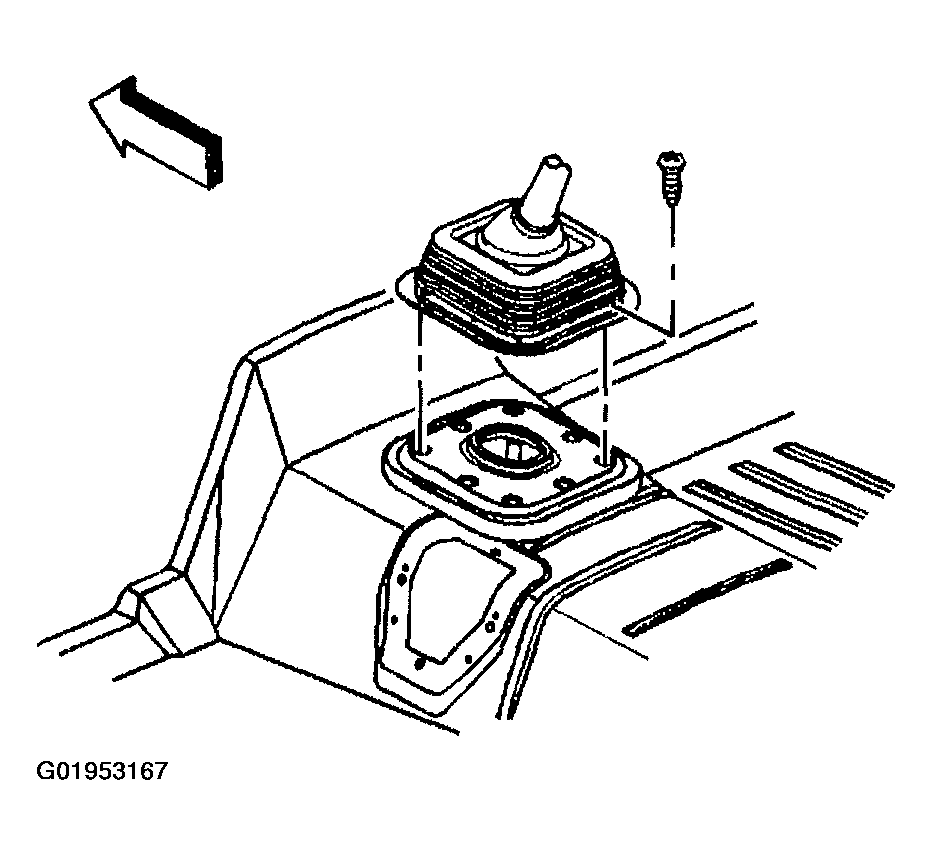

    Fig 3: Removing Control Lever Boot, Insulator & Screws
    G01953167Courtesy of GENERAL MOTORS CORP.
