Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

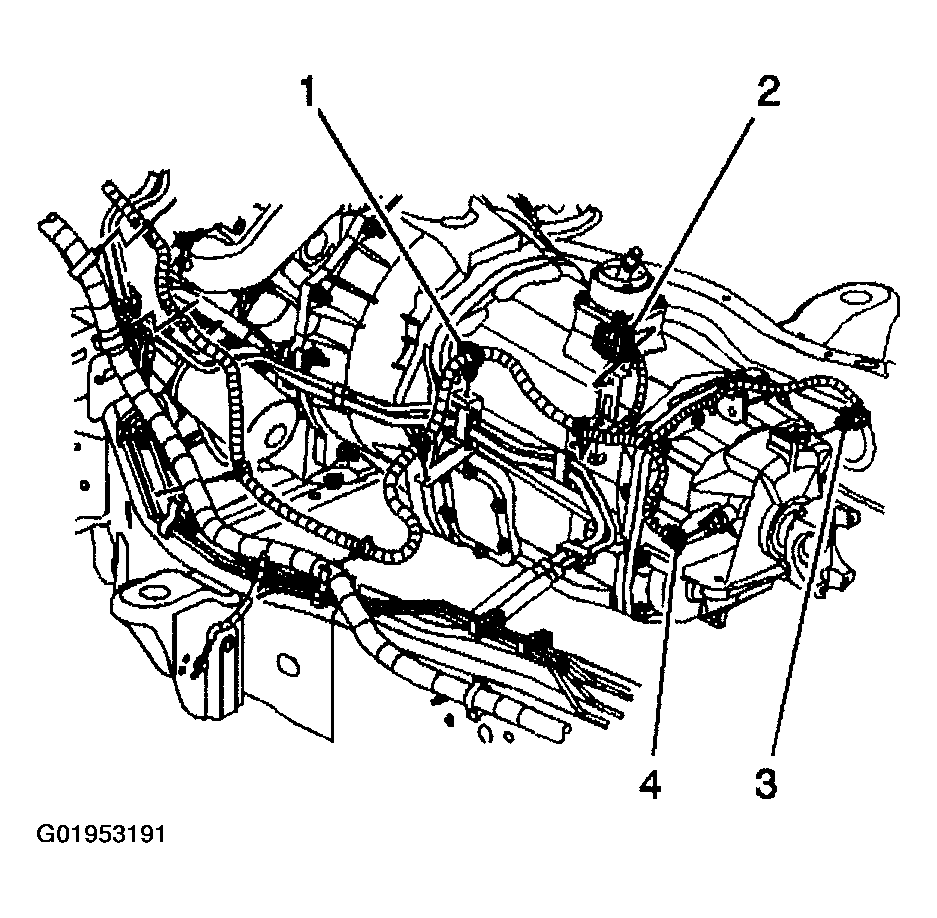

If equipped with a 6.6L engine, disconnect the backup lamp switch electrical connector (3).

Fig 1: Disconnecting Backup Lamp Switch Electrical Connector (6.6L)
Courtesy of GENERAL MOTORS CORP.

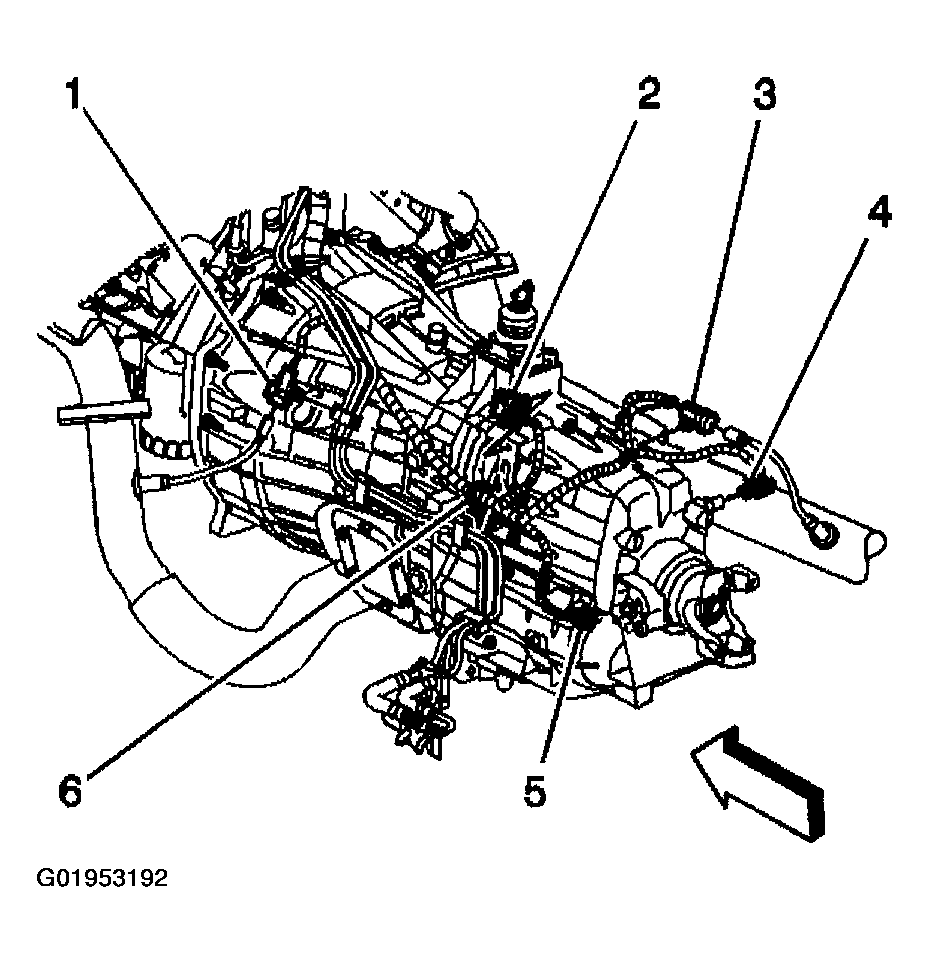

If equipped with a 8.1L engine, disconnect the backup lamp switch electrical connector (4).

Fig 2: Disconnecting Backup Lamp Switch Electrical Connector (8.1L)
Courtesy of GENERAL MOTORS CORP.

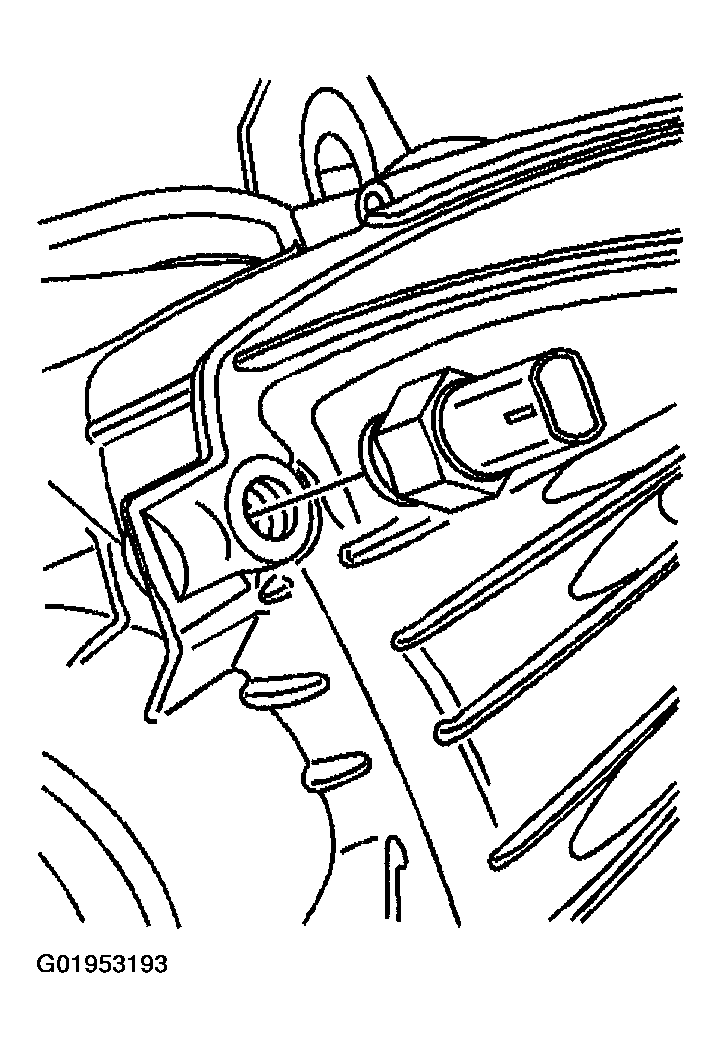

Remove the backup lamp switch.

Fig 3: Removing Backup Lamp Switch
Courtesy of GENERAL MOTORS CORP.
