Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

1. This step ensures that the scan tool is getting power.
2. This step ensures that the scan tool is communicating to the PCM or ECM.
3. This step ensures that the PCM or ECM has the latest calibrations.
6. This step checks to see if any related DTCs should be diagnosed first.
9. This step checks to see if the customer concern is with Inspection and Maintenance (I/M) testing.

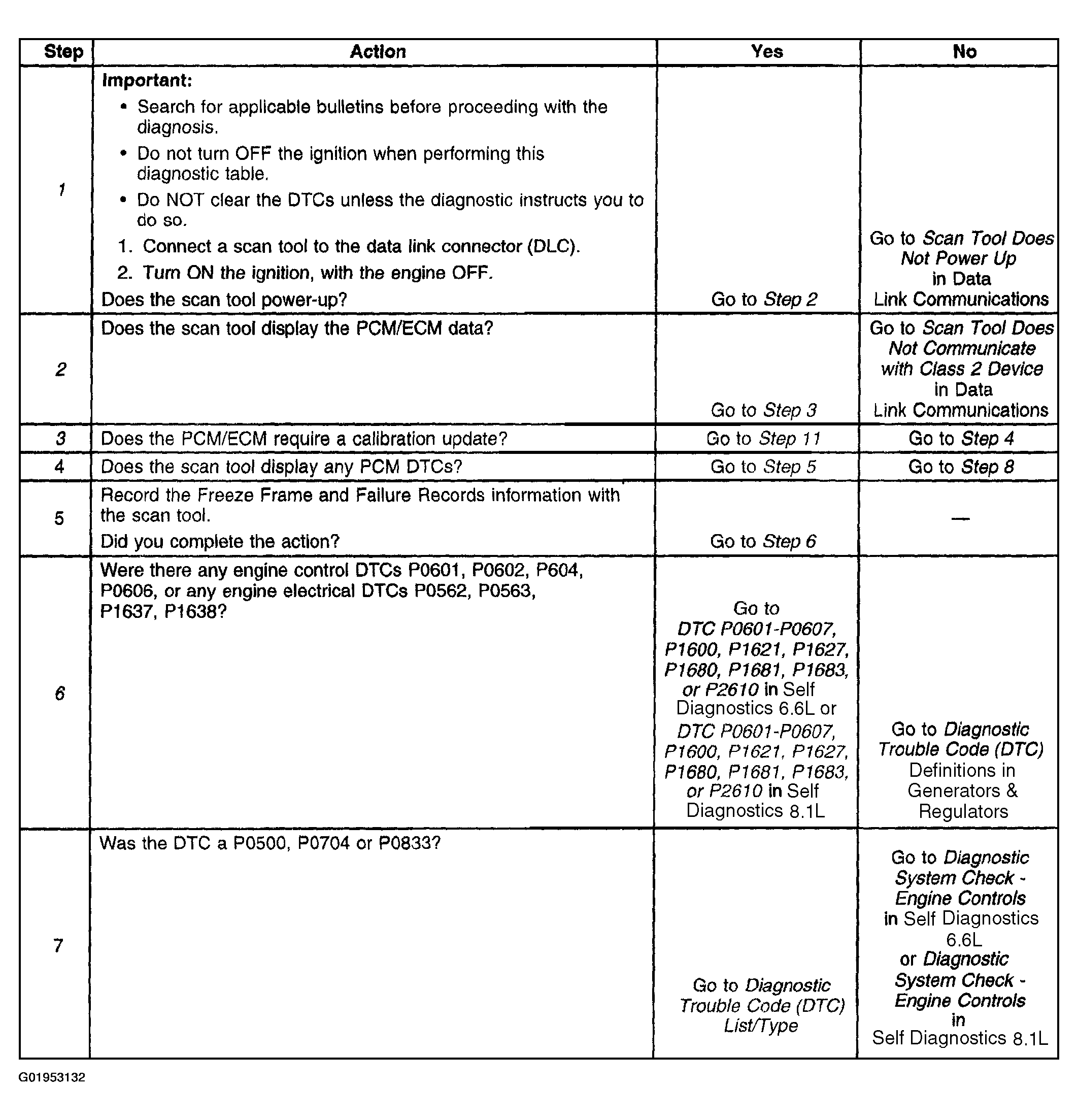

Fig 1: Diagnostic System Check Chart - Manual Transmission (Steps 1 - 7)
Courtesy of GENERAL MOTORS CORP.

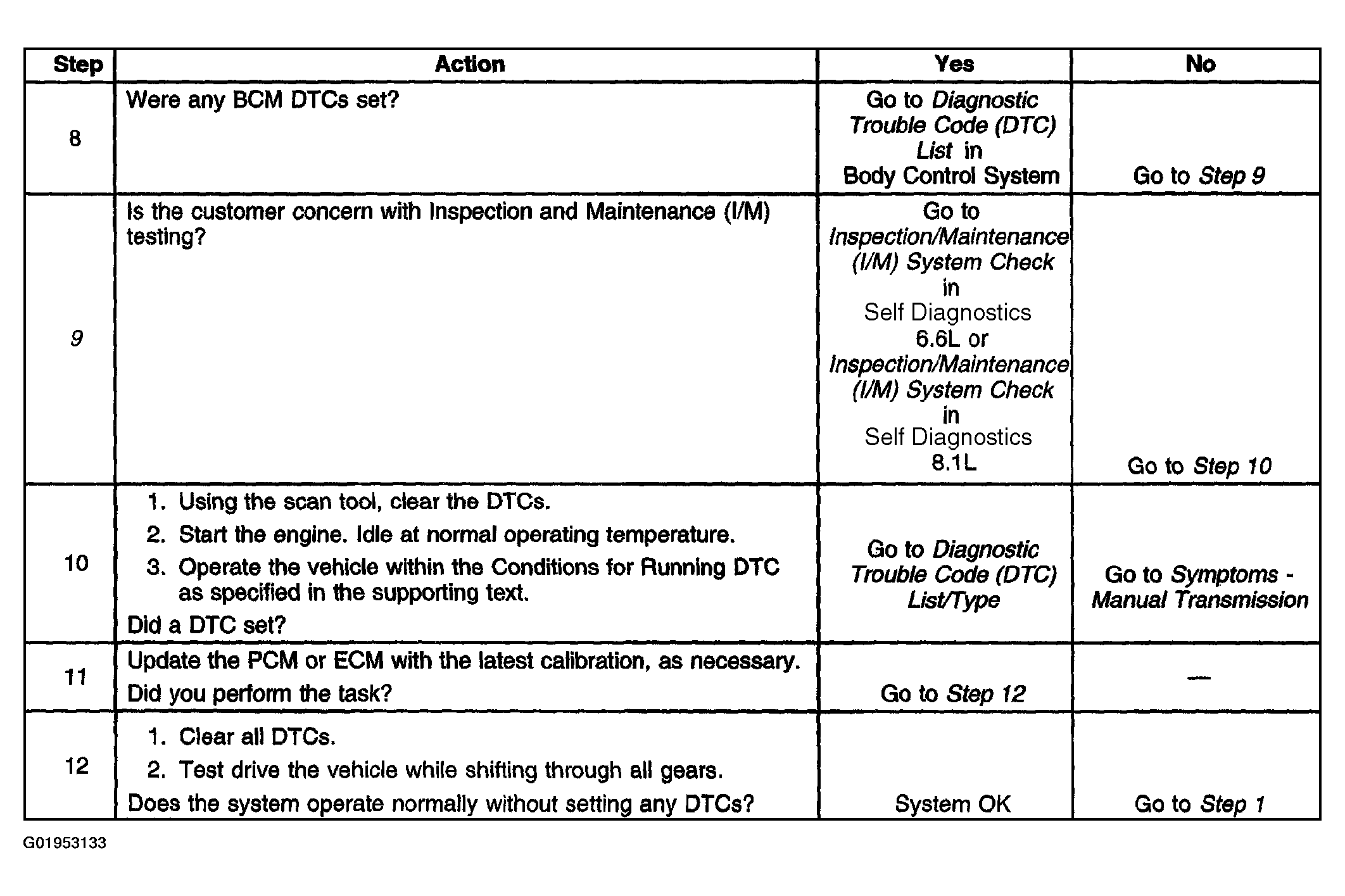

Fig 2: Diagnostic System Check Chart - Manual Transmission (Steps 8 - 12)

Courtesy of GENERAL MOTORS CORP.
