Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Coat the NEW O-ring seal with a thin film of transmission fluid, use GM P/N 12346190 (Canadian P/N 10953477), or equivalent.
NOTE: Refer to FASTENER NOTICE .
Install the VSS.
Tighten

Tighten the VSS to 16 N.m (12 lb ft).

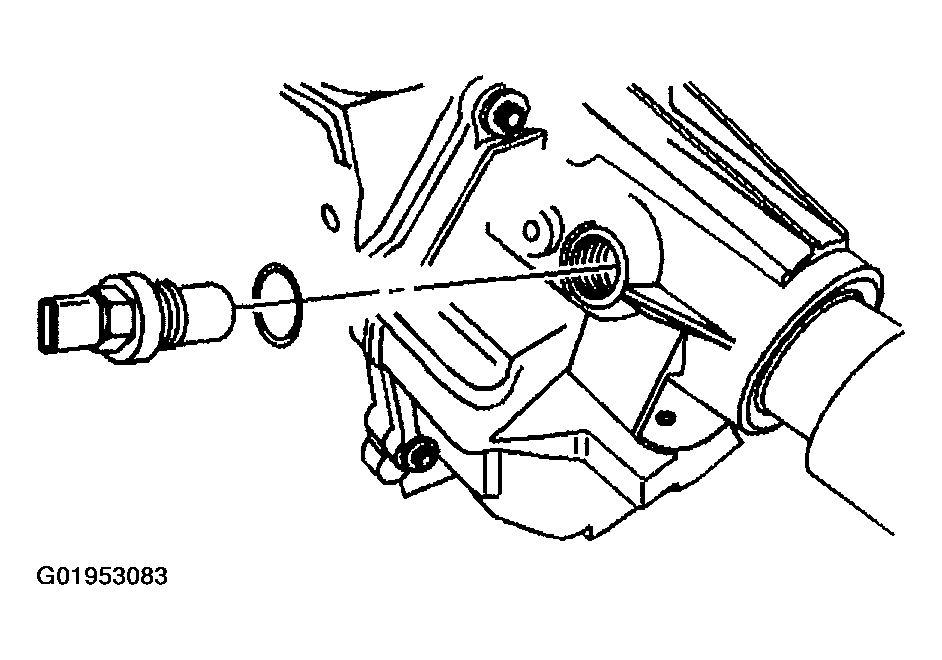

Fig 1: Installing Vehicle Speed Sensor & Seal

Courtesy of GENERAL MOTORS CORP.

Connect the VSS electrical connector (3). Lower the vehicle.

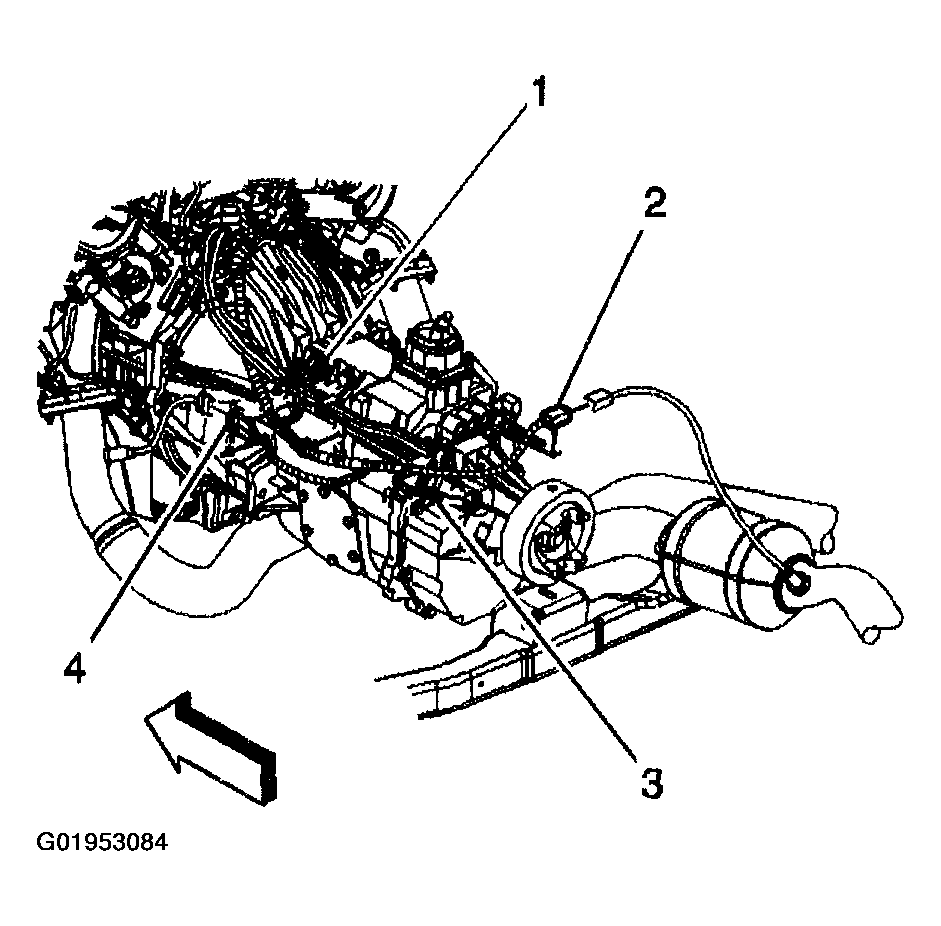

Fig 2: Connecting Vehicle Speed Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
