Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Inspect the input shaft bearing retainer for any nicks or cracks that may result in a leak. Replace as necessary.

Position a NEW oil seal in the input shaft bearing retainer.
Using J 38801, install the oil seal.

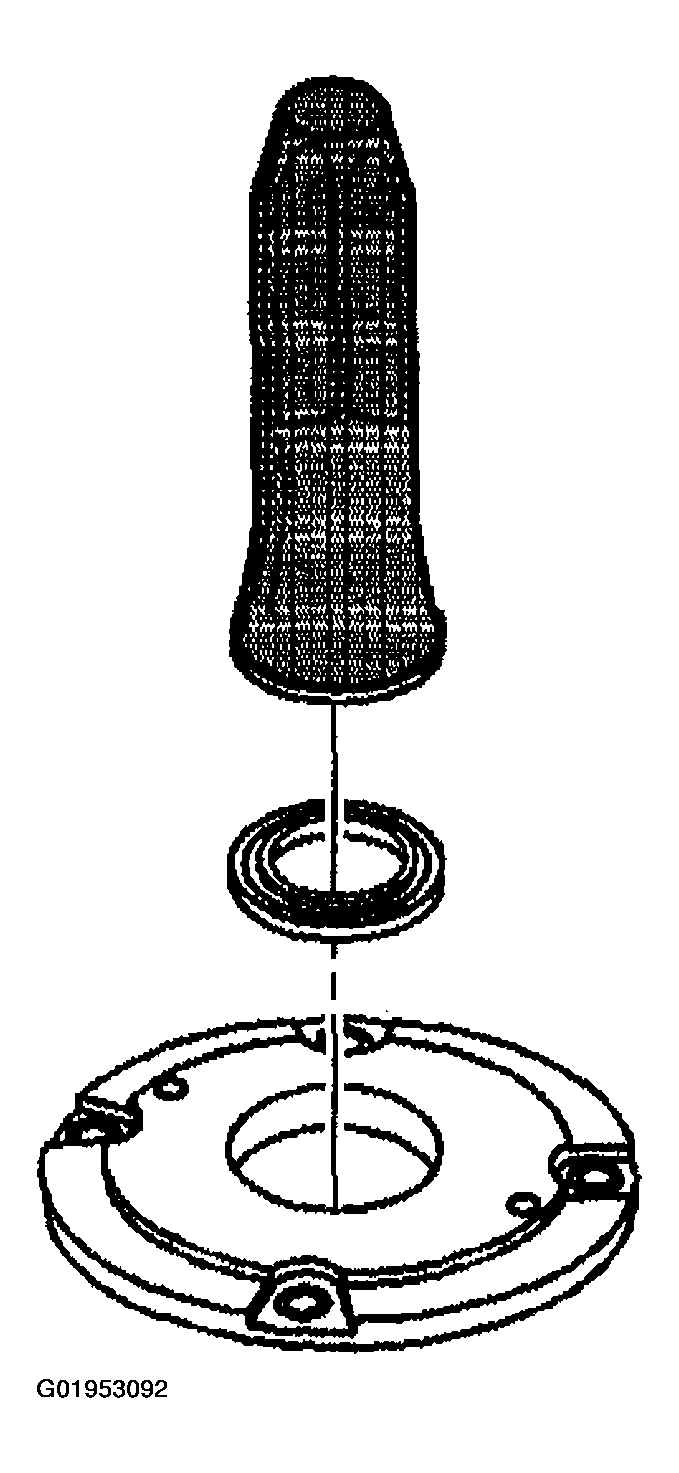

Fig 1: Installing Oil Seal

Courtesy of GENERAL MOTORS CORP.

Apply a thin bead of RTV sealer GM P/N 12345739 (Canadian P/N 10953472), or equivalent to the input shaft bearing retainer mating surface.

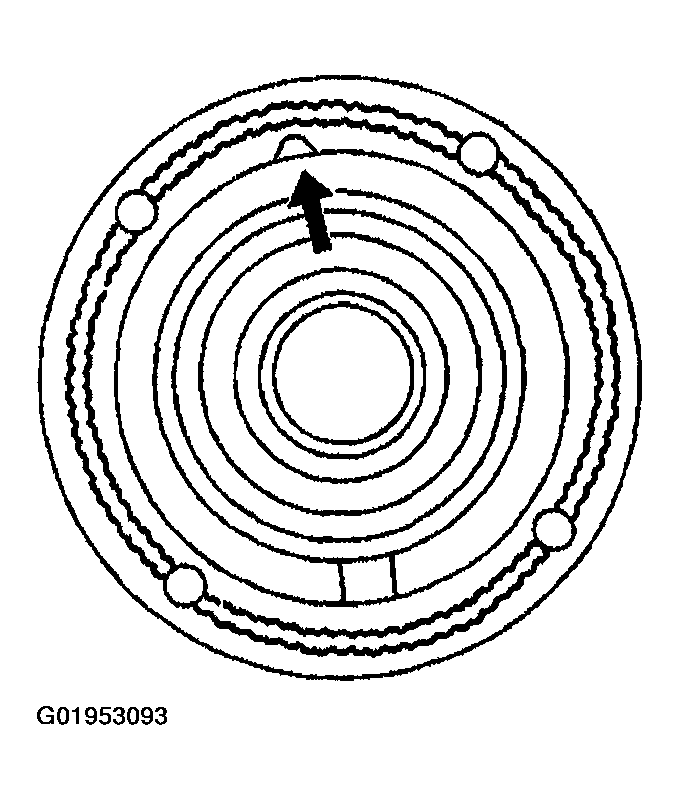

Fig 2: Identifying Sealant Application Point On Bearing Retainer Mating Surface
Courtesy of GENERAL MOTORS CORP.
Position the input shaft bearing retainer.
Align the bearing retainer oil drain hole at the top dead center position.
Apply threadlock GM P/N 12345493 (Canadian P/N 10953488), or equivalent to the input shaft bearing retainer bolts.
NOTE: Refer to FASTENER NOTICE .
Install the input shaft bearing retainer bolts.
Tighten

Tighten the bolts to 22 N.m (18 lb in).

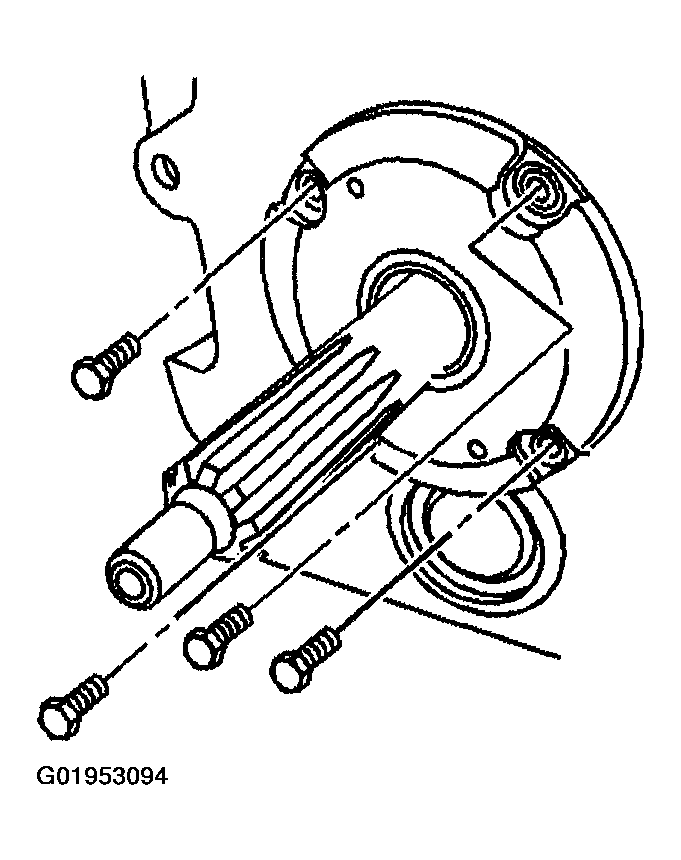

Fig 3: Installing Input Shaft Bearing Retainer Bolts

Courtesy of GENERAL MOTORS CORP.

Install the clutch actuator cylinder and bolts.
Tighten

Tighten the bolts to 8 N.m (71 lb in)
Install the transmission. Refer to Transmission Replacement .
Lower the vehicle.

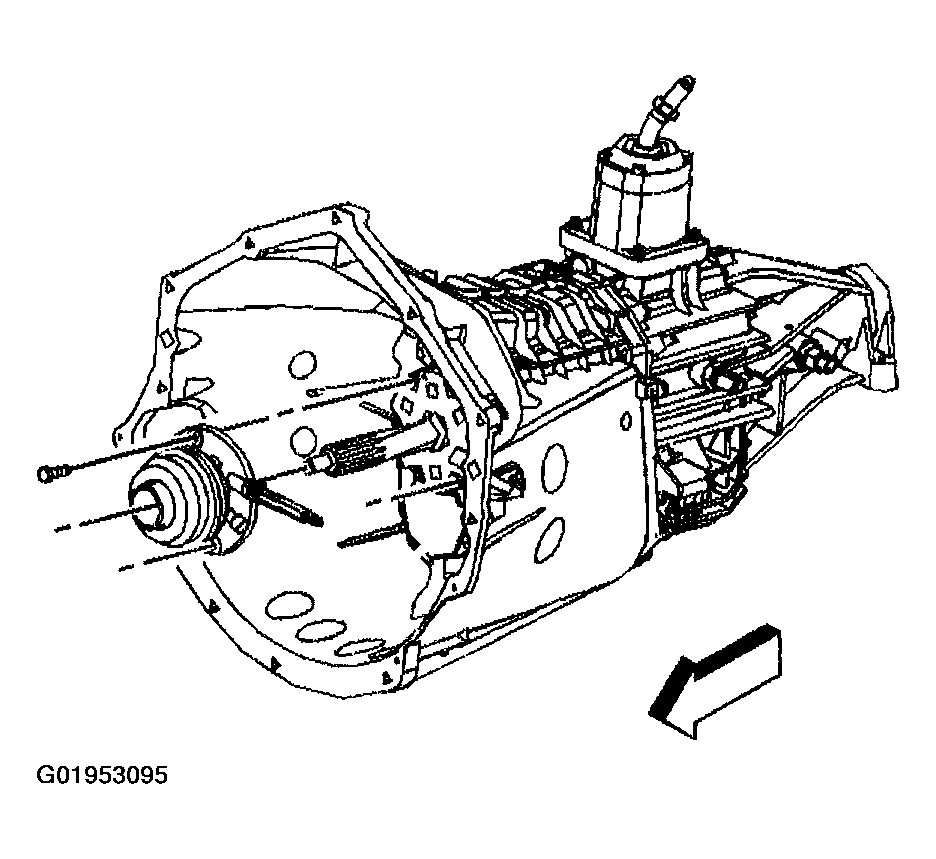

Fig 4: Installing Clutch Actuator Cylinder & Bolts

Courtesy of GENERAL MOTORS CORP.
