Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the insulator to the transmission case.
  2. Install a NEW shift lever insulator.
  3. Install the shift lever seal and lever.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the shift lever bolts.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  5. Install the boots.
  6. Install the control lever and boot. Refer to Control Lever And/Or Boot Replacement   .

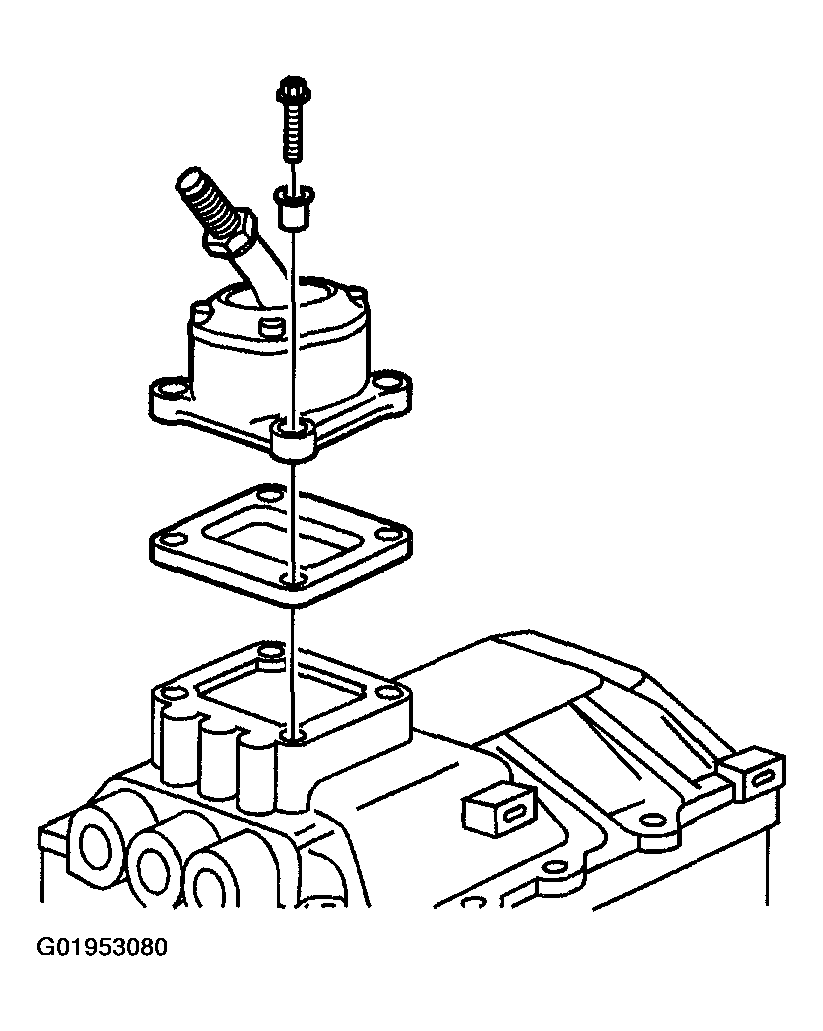

    7. Fig 1: Installing Shift Lever, Seal, Insulator & Bolts
    G01953080Courtesy of GENERAL MOTORS CORP.
