Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Disconnect the backup lamp switch electrical connector (1).

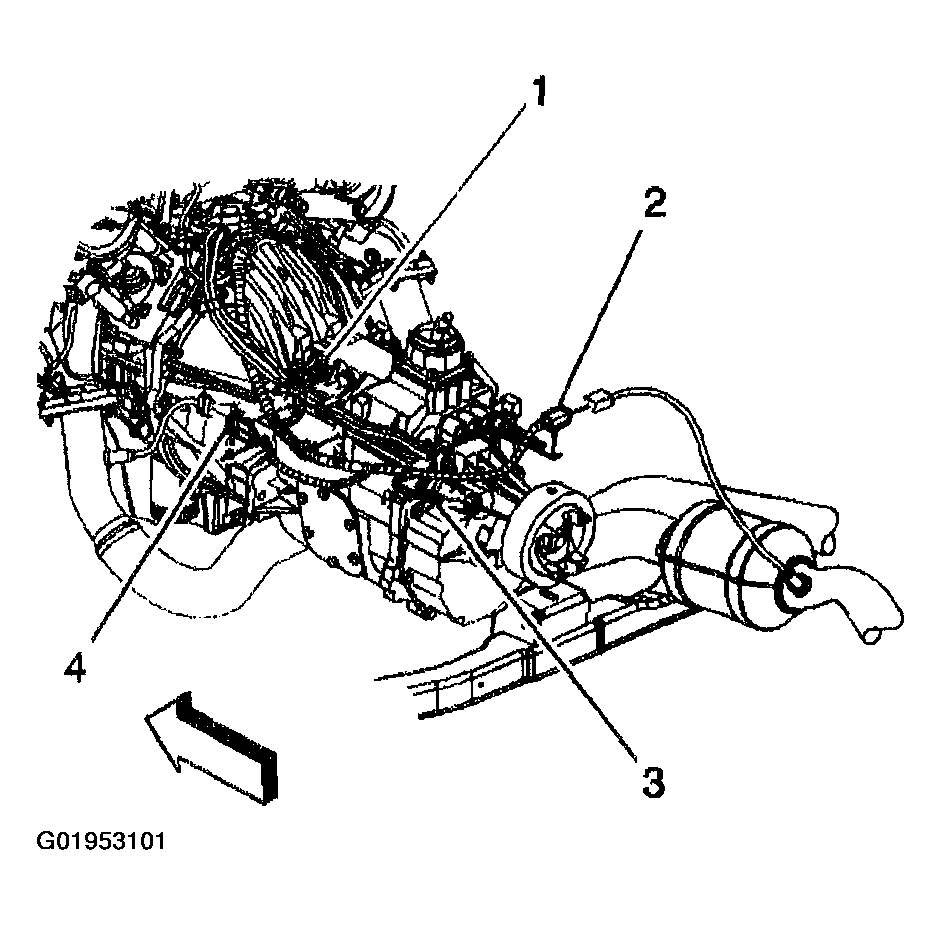

Fig 1: Disconnecting Backup Lamp Switch Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Remove the backup lamp switch and seal.

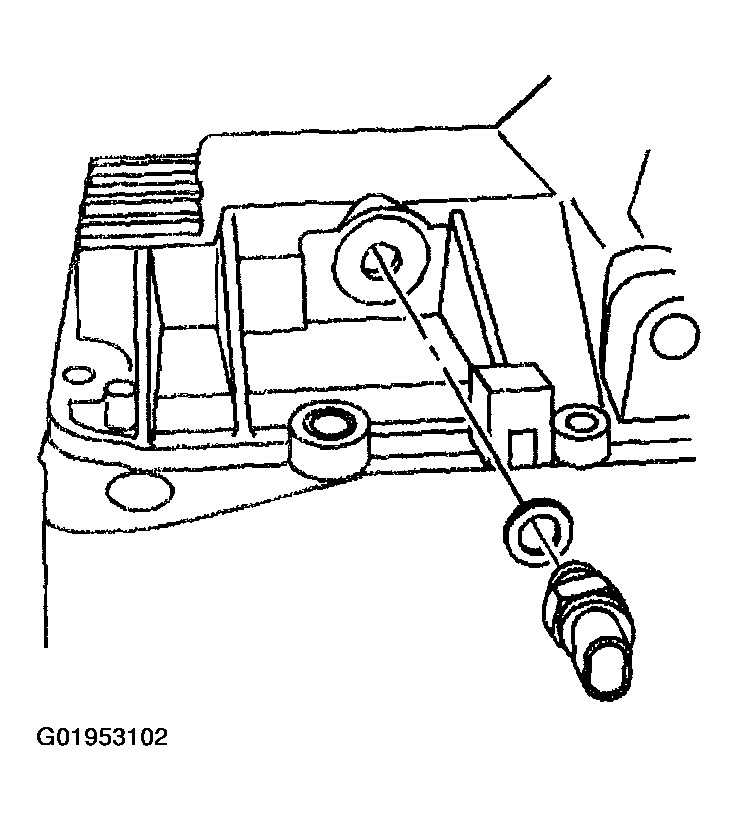

Fig 2: Removing Backup Lamp Switch & Seal
Courtesy of GENERAL MOTORS CORP.
