Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure the seal is installed on the switch.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the backup lamp switch.

    Tighten

    Tighten the switch to 28 N.m (21 lb ft).

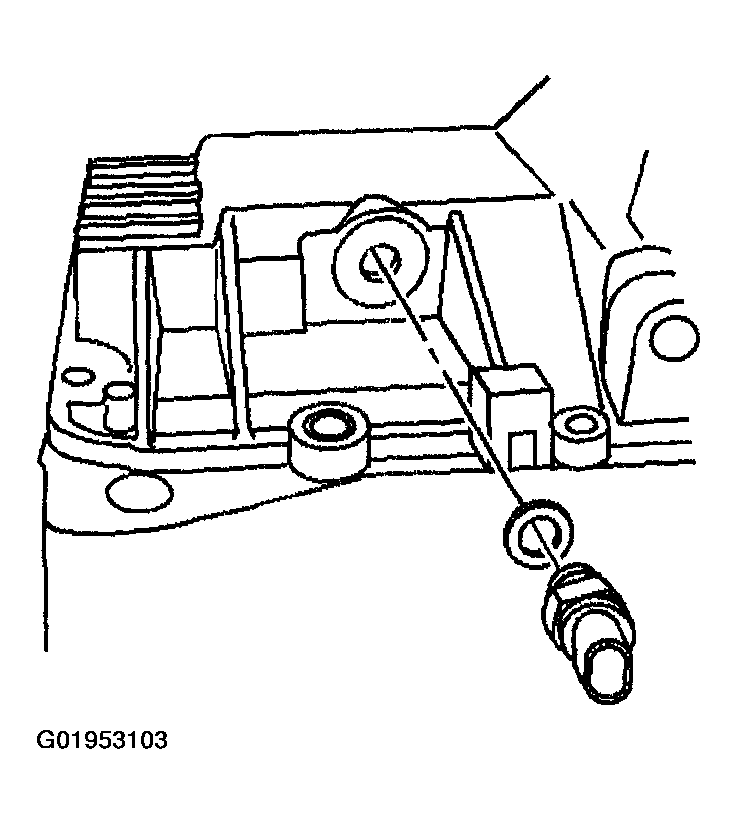

    3. Fig 1: Installing Backup Lamp Switch
    G01953103Courtesy of GENERAL MOTORS CORP.
  3. Connect the backup lamp switch electrical connector (1).
  4. Lower the vehicle.

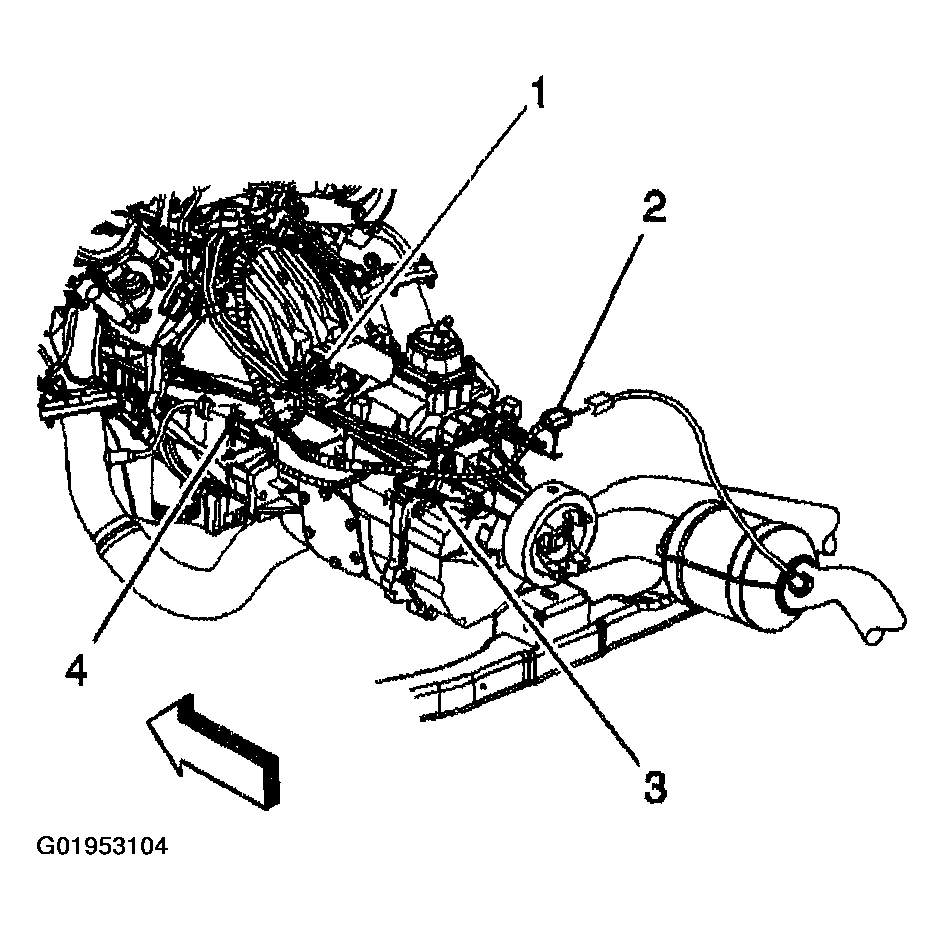

    5. Fig 2: Connecting Backup Lamp Switch Electrical Connector
    G01953104Courtesy of GENERAL MOTORS CORP.
