Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Coat a NEW O-ring seal with a thin film of Synchro-mesh transmission fluid GM P/N 12345349 (Canadian P/N 10953465), or equivalent.
NOTE: Refer to FASTENER NOTICE .
Install the VSS and O-ring seal.
Tighten

Tighten the VSS to 16 N.m (12 lb ft).

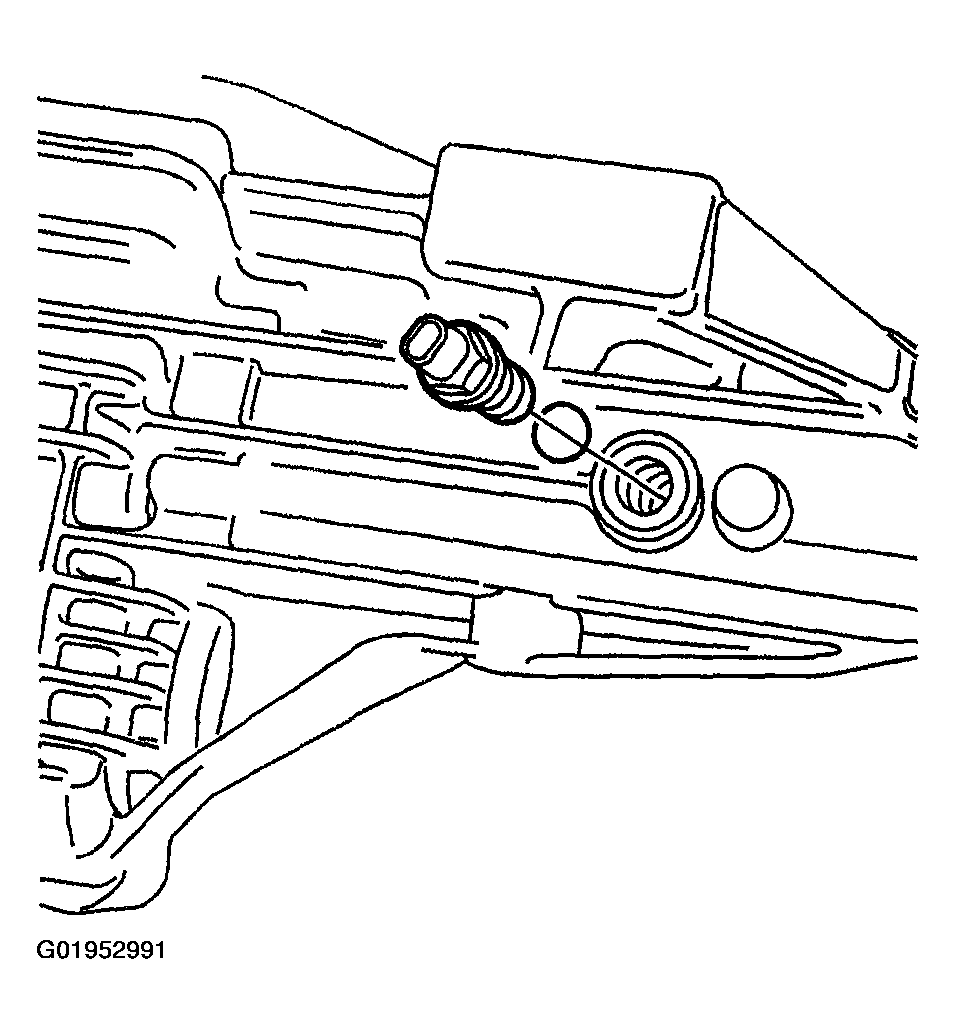

Fig 1: Installing Vehicle Speed Sensor & O-Ring Seal
Courtesy of GENERAL MOTORS CORP.
Connect the VSS electrical connector (1).
Lower the vehicle.

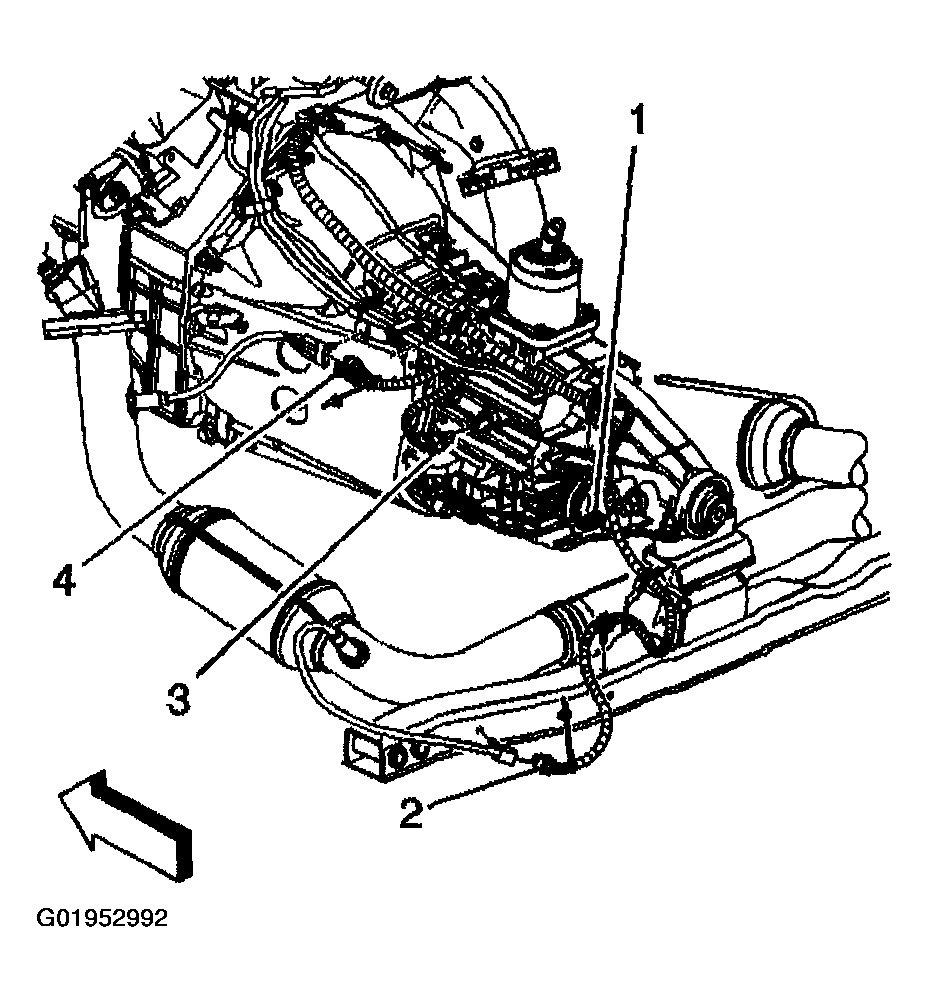

Fig 2: Connecting Vehicle Speed Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
