Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Broken or deteriorated mounts can cause misalignment and destruction of certain drive train components. When a single mount breaks, the remaining mounts are subjected to abnormally high stresses.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the transmission mount to crossmember nut.
    Fig 1: Removing Transmission Mount To Crossmember Nut
    G01952993Courtesy of GENERAL MOTORS CORP.
  3. Remove the transmission mount to transmission bolts.
  4. Raise the transmission just enough in order to permit removal of the mount using a suitable transmission jack.
  5. Remove the transmission mount.

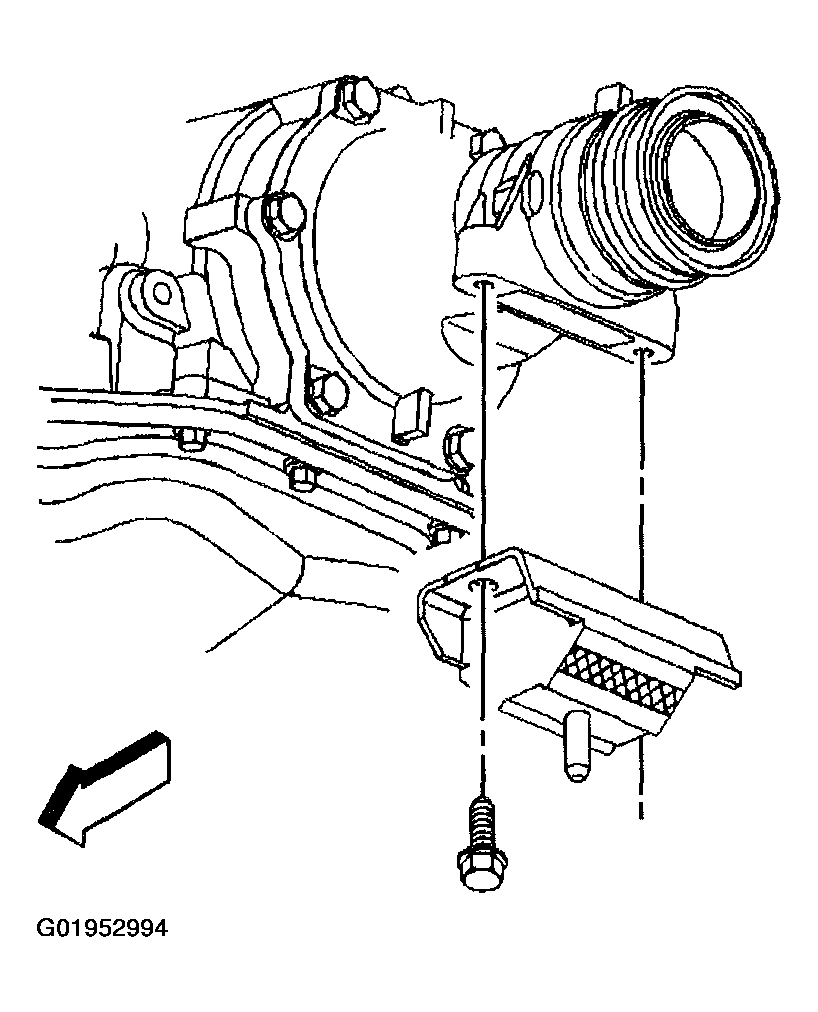

    Fig 2: Removing Transmission Mount To Crossmember Bolts
    G01952994Courtesy of GENERAL MOTORS CORP.
