Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the transmission mount.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the transmission mount to transmission bolts.

    Tighten

    Tighten the transmission mount bolts to 50 N.m (37 lb ft).

  3. Lower the transmission and remove the transmission jack.

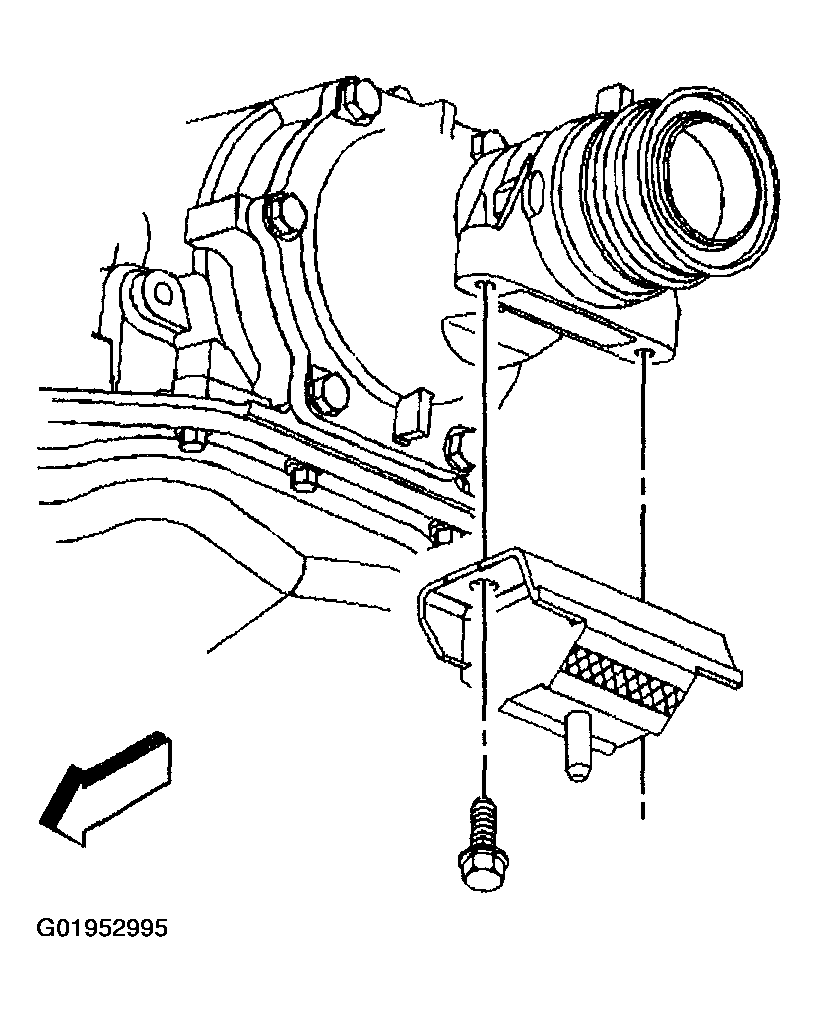

    Fig 1: Installing Transmission Mount To Transmission Bolts
    G01952995Courtesy of GENERAL MOTORS CORP.
  4. Install the transmission mount to crossmember nut.

    Tighten

    Tighten the transmission mount to crossmember nut to 40 N.m (30 lb ft).

  5. Lower the vehicle.
    Fig 2: Installing Transmission Mount To Crossmember Nut
    G01952996Courtesy of GENERAL MOTORS CORP.
