Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transfer case. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT for Transfer Case-NVG 236/246-NP8 (Two Speed Automatic) or TRANSFER CASE ASSEMBLY REPLACEMENT for Transfer Case-NVG 261-NP2 (Two Speed Manual).
  2. Using J 36825  and J 23907  remove the output shaft seal.

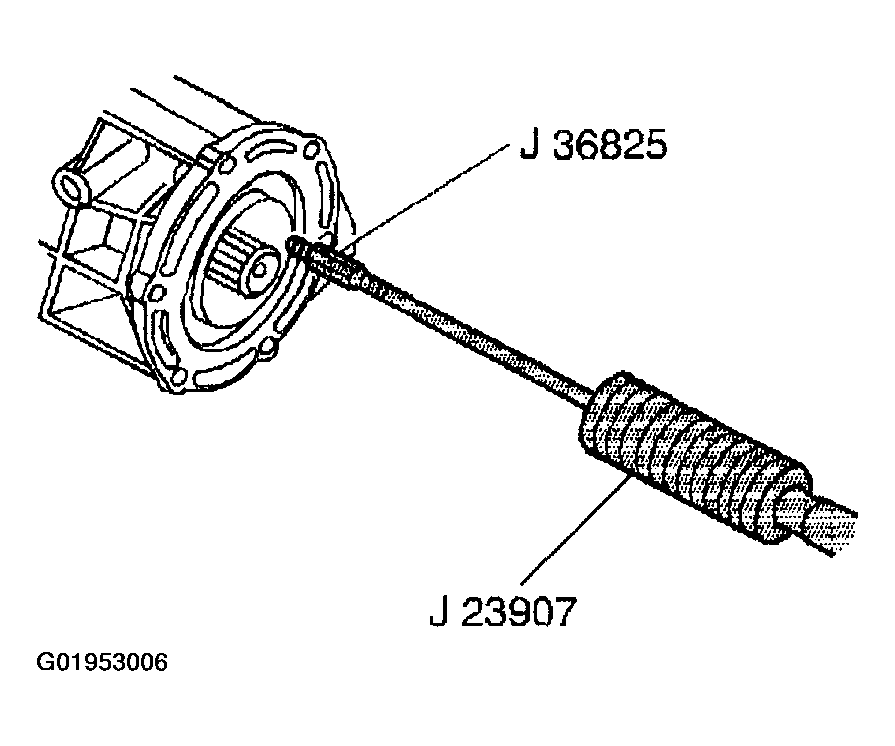

    Fig 1: Removing Output Shaft Seal (Rear - 4WD)
    G01953006Courtesy of GENERAL MOTORS CORP.
