Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Using J 36511 remove the oil fill plug.

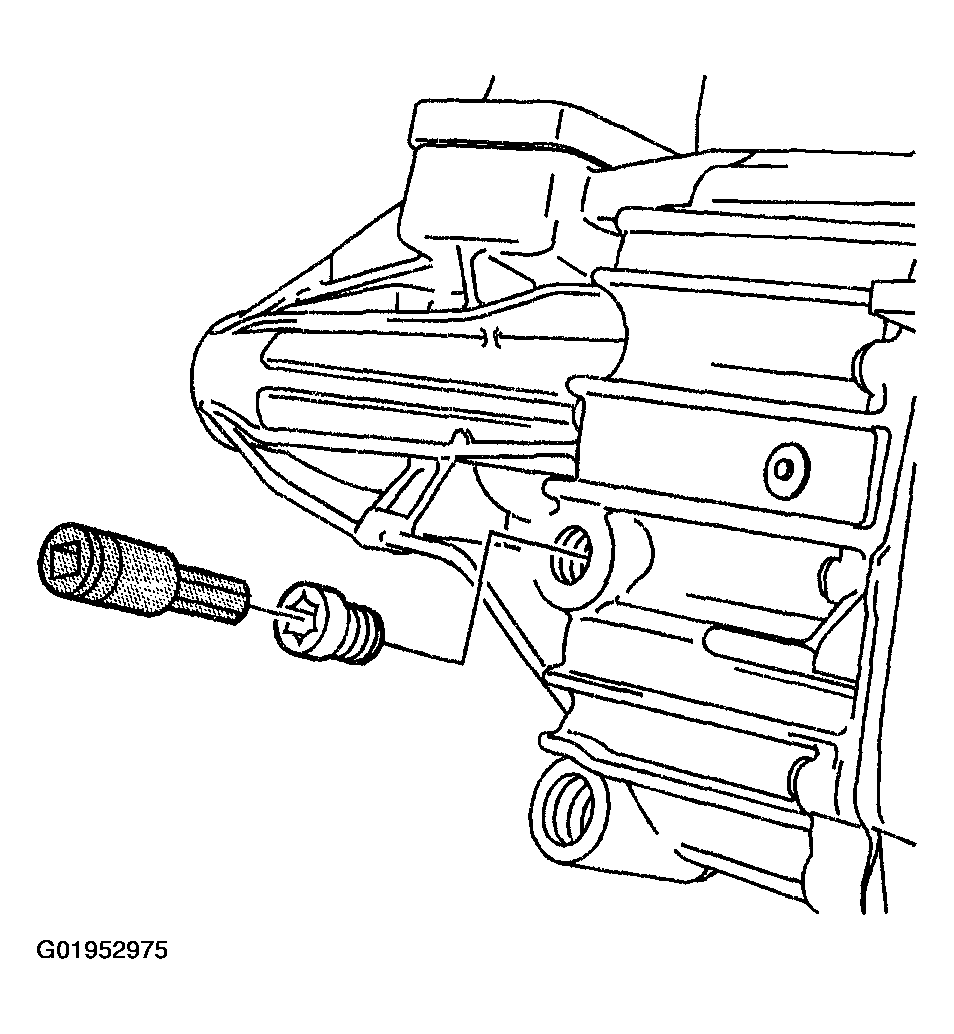

Fig 1: Removing Oil Fill Plug
Courtesy of GENERAL MOTORS CORP.
Place a suitable drain pan under the transmission in order to catch the drained transmission fluid.
Using J 36511 remove the oil drain plug.
Remove any old sealant from the transmission housing.

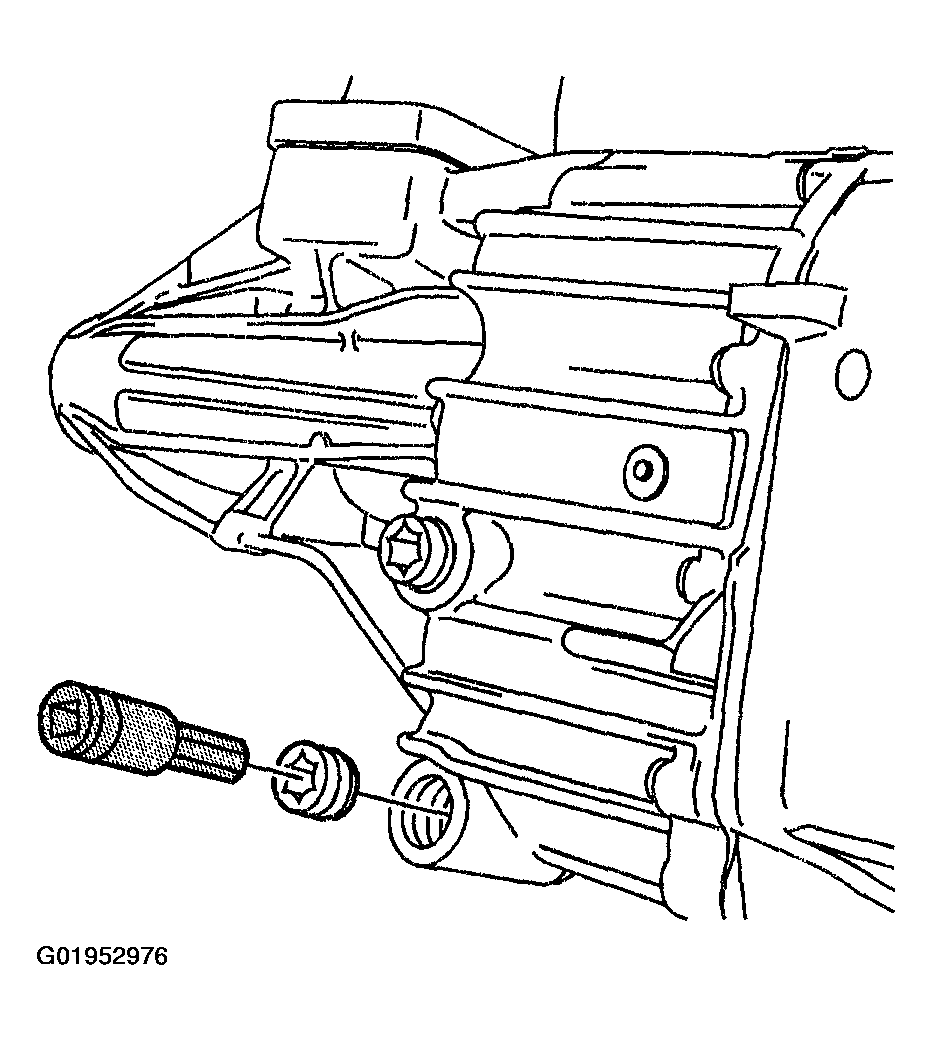

Fig 2: Removing Oil Drain Plug
Courtesy of GENERAL MOTORS CORP.
