Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Apply sealant GM P/N 12346004 (Canadian P/N 10953480), or equivalent to the oil drain and fill plug threads.

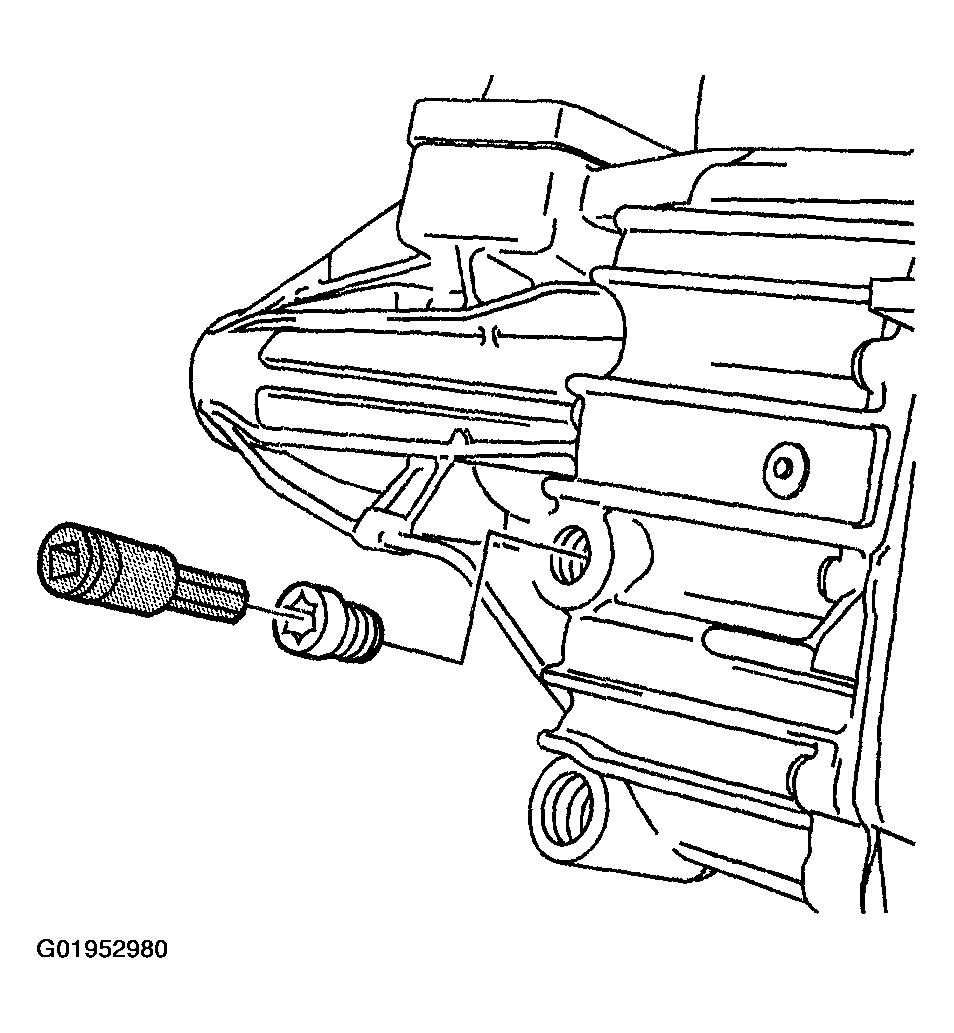

Fig 1: Locating Sealant Application Point
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Using J 36511 install the oil drain plug.
Tighten

Tighten the plug to 30 N.m (22 lb ft).
Remove the drain the drain pan used to catch the used transmission fluid.

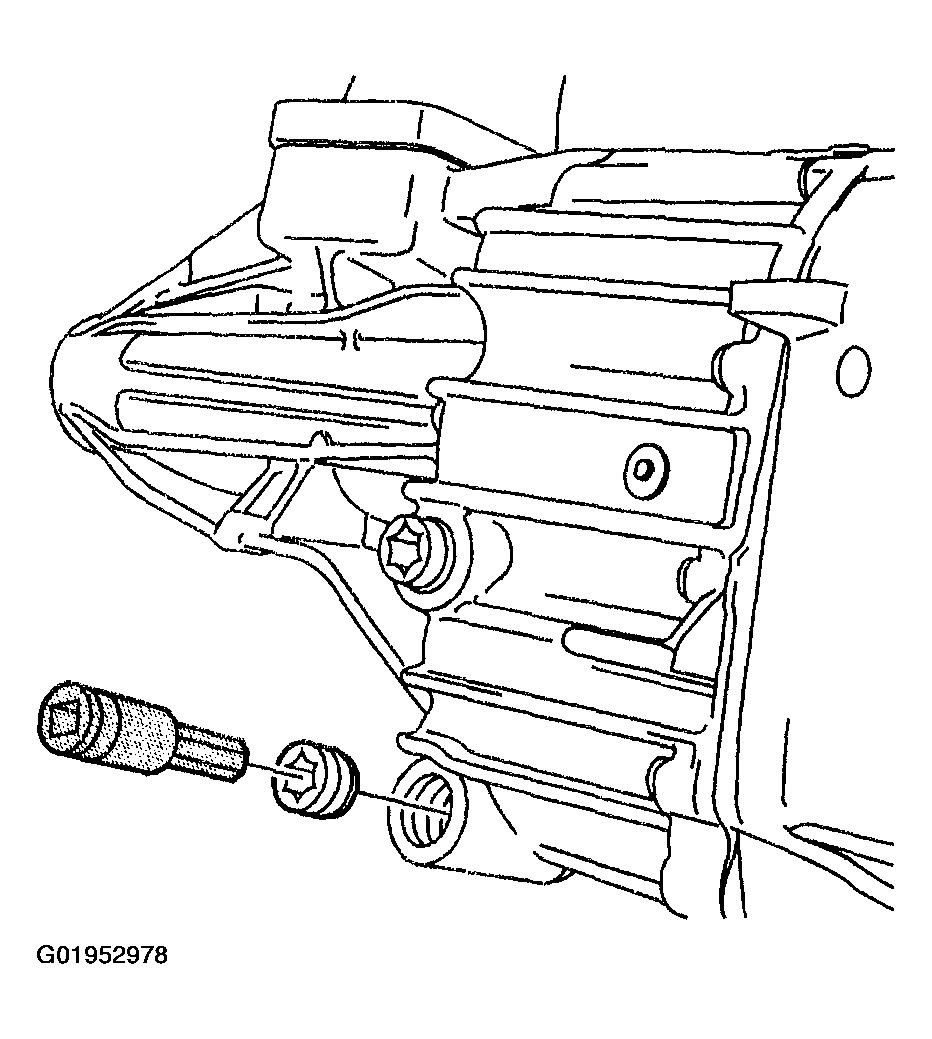

Fig 2: Installing Oil Drain Plug
Courtesy of GENERAL MOTORS CORP.
Fill the transmission to just below the bottom of the fill plug hole. Refer to Lubrication Specifications .

Fig 3: Identifying Transmission Fluid Filling Level
Courtesy of GENERAL MOTORS CORP.
Using J 36511 install the oil fill plug.
Tighten

Tighten the plug to 30 N.m (22 lb ft).
Lower the vehicle.

Fig 4: Installing Oil Fill Plug
Courtesy of GENERAL MOTORS CORP.
