Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: DO NOT move the shift lever assembly adjustment nut if replacing the control lever.
  1. Remove the control lever.
    Fig 1: Removing Control Lever
    G01952981Courtesy of GENERAL MOTORS CORP.
  2. Remove the control lever boot retainer plastic retainers, if necessary.
  3. Remove the control lever boot retainer, if necessary.

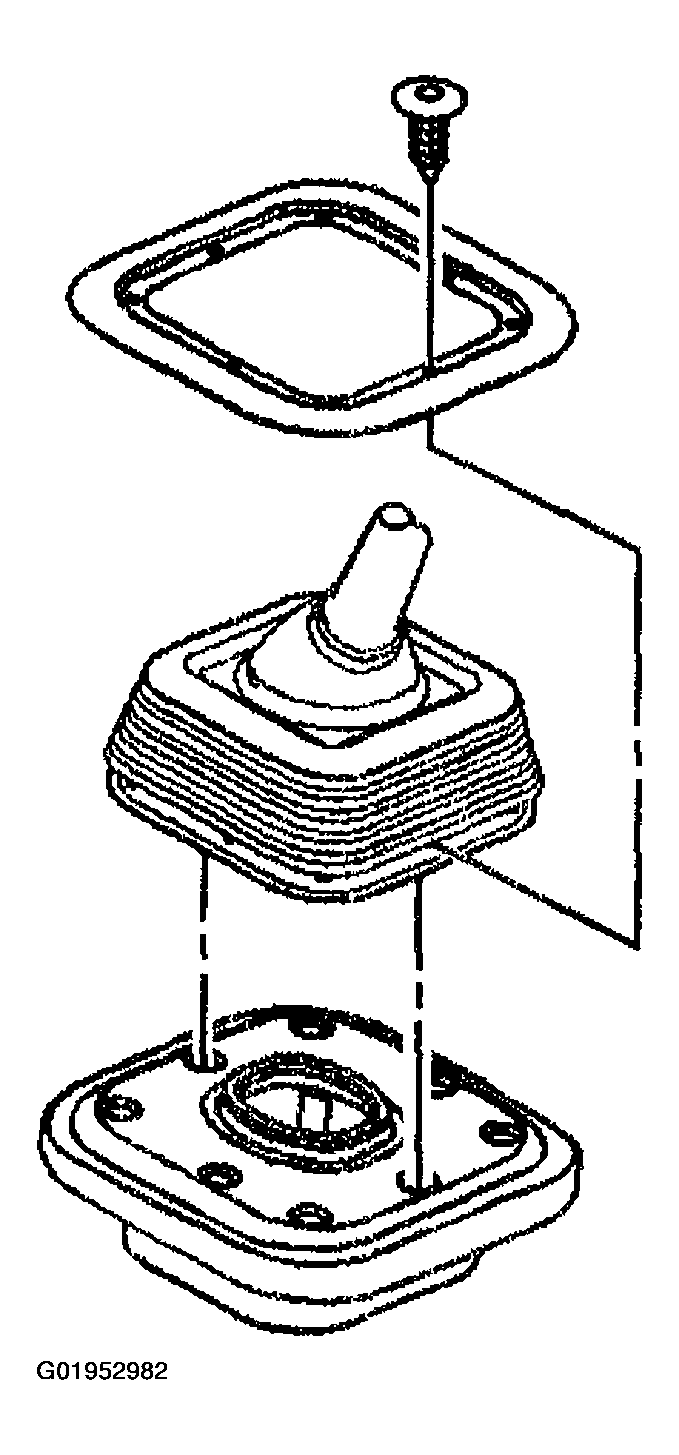

    Fig 2: Removing Control Lever Boot Retainer
    G01952982Courtesy of GENERAL MOTORS CORP.
  4. Remove the control lever boot screws, if necessary.
  5. Remove the control lever boot, if necessary.
  6. Remove the control lever insulator, if necessary.

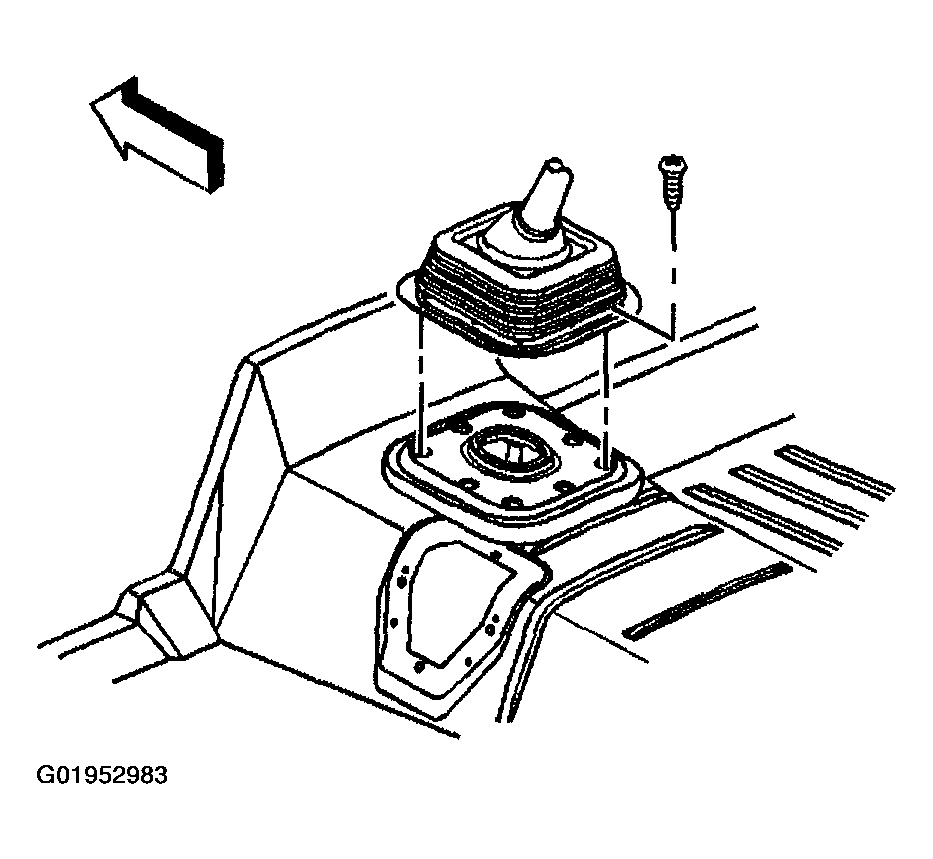

    Fig 3: Removing Control Lever Boot, Insulator & Screws
    G01952983Courtesy of GENERAL MOTORS CORP.
