Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

IMPORTANT: The backup lamp switch has pre-applied thread sealant on the threads.

Install the backup lamp switch.
Tighten

Tighten the switch to 37 N.m (27 lb ft).

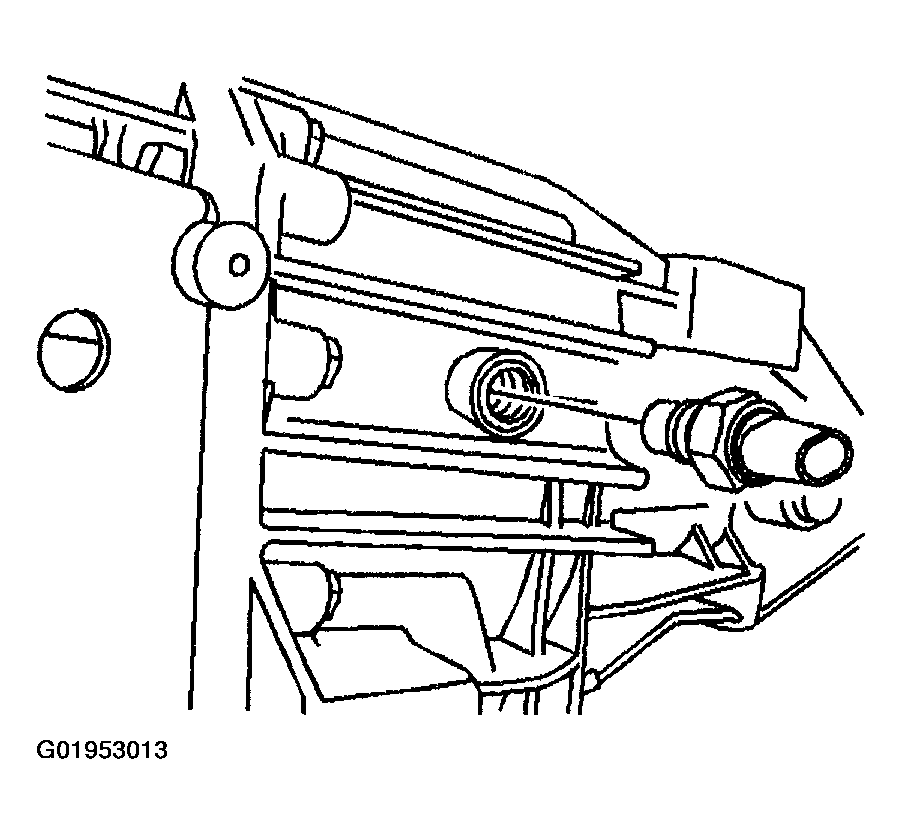

Fig 1: Installing Backup Lamp Switch
Courtesy of GENERAL MOTORS CORP.
Connect the backup lamp switch electrical connector (3).
Lower the vehicle.

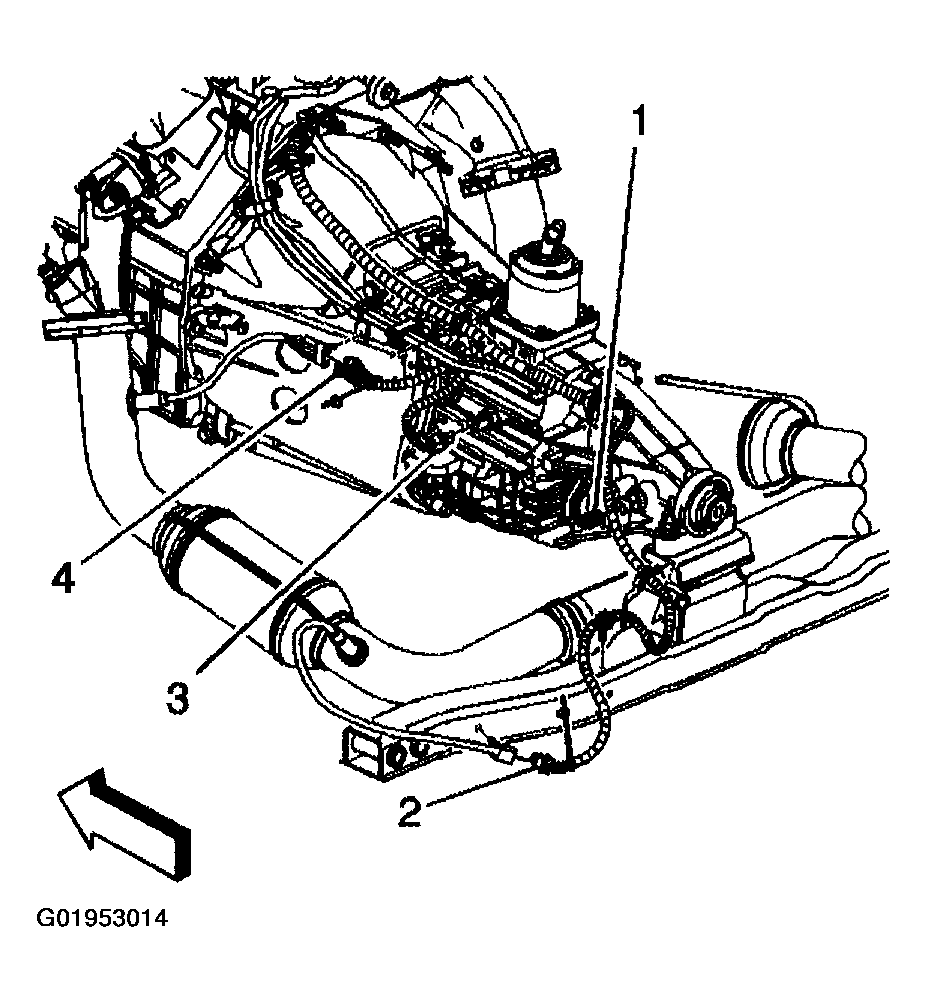

Fig 2: Connecting Backup Lamp Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
