Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 7. This step inspects for the transfer case causing the clunk. Shift the transfer case into another mode. If the transmission is causing the clunk, there will not be a change.

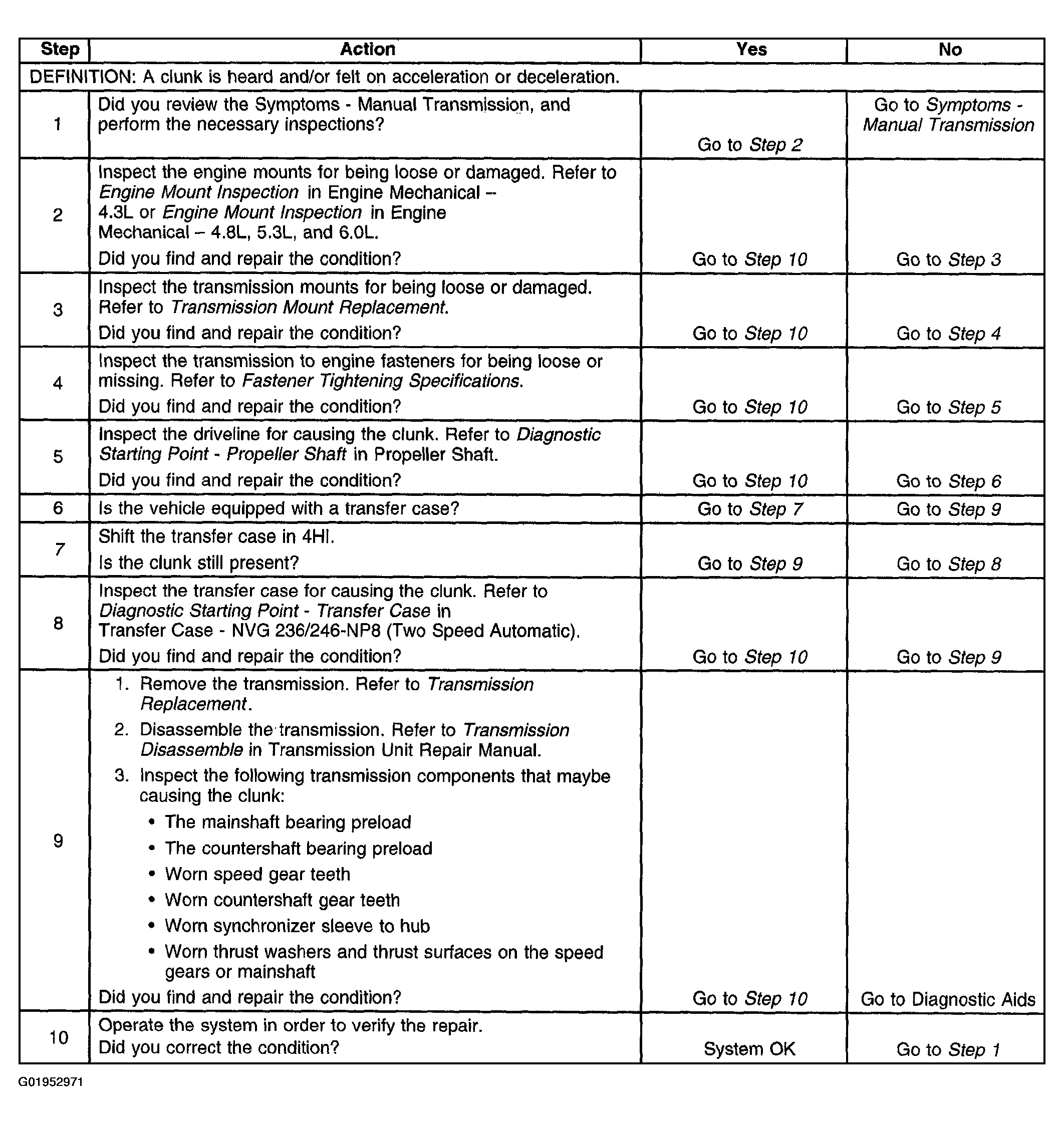

Fig 1: Clunk On Acceleration Or Deceleration
G01952971Courtesy of GENERAL MOTORS CORP.
