Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the auxiliary battery. Refer to Battery Replacement - Auxiliary .
  2. Remove the surge tank nut and bolt.
  3. Lift and reposition the surge tank to the side.
  4. Remove the battery tray bolt and nuts.
  5. Remove the auxiliary battery tray.

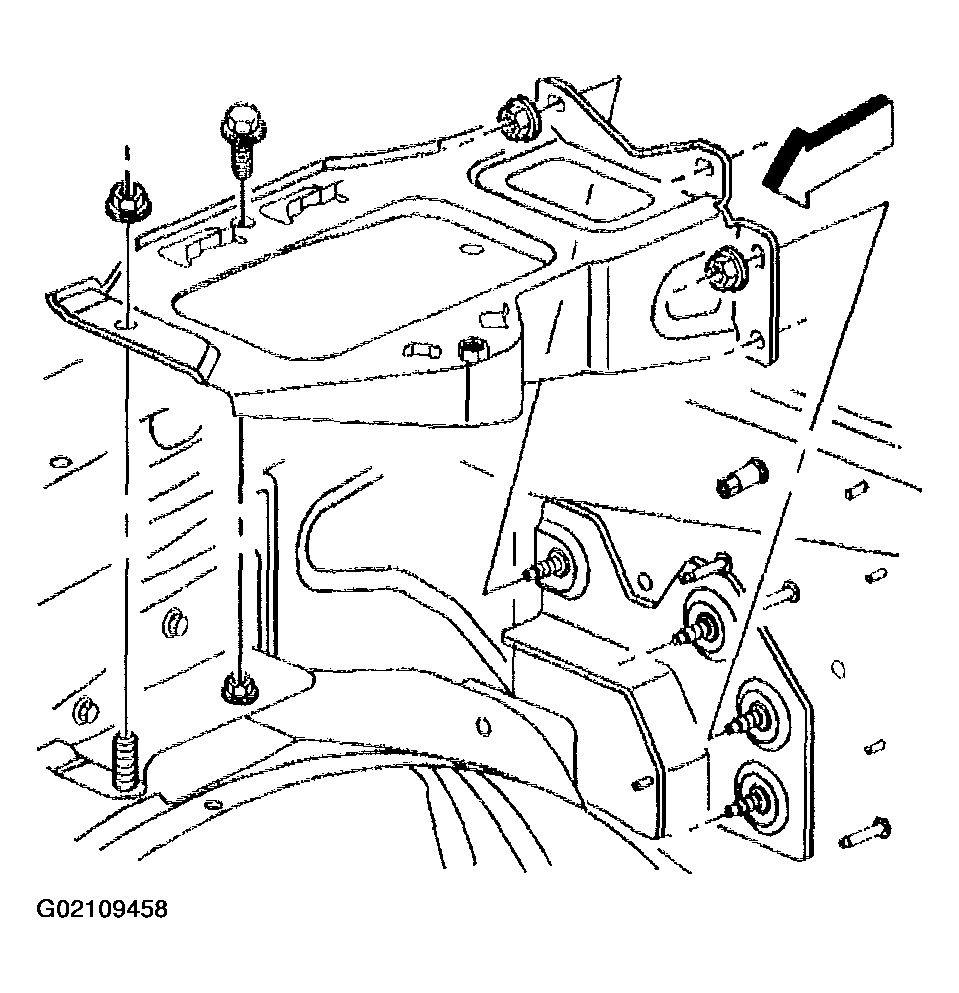

    Fig 1: Remove Battery Tray, Bolt & Nuts
    G02109458Courtesy of GENERAL MOTORS CORP.
