Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary battery tray.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the battery tray bolt and nuts.

    Tighten

    • Tighten the bolt to 9 N.m (80 lb in).
    • Tighten the nuts to 25 N.m (18 lb ft).
  3. Set the surge tank into position.
  4. Install the surge tank nut and bolt.

    Tighten

    Tighten the bolt and nut to 9 N.m (80 lb in).

  5. Install the auxiliary battery. Refer to Battery Replacement - Auxiliary .

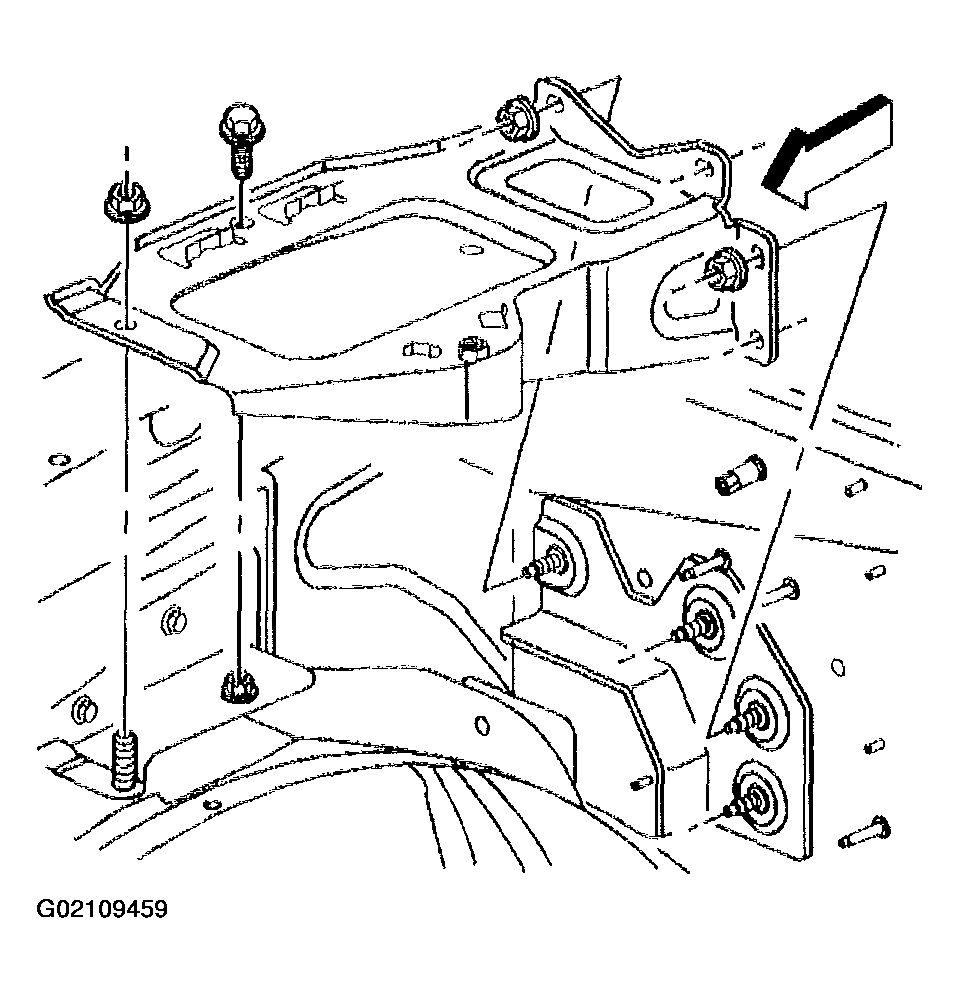

    Fig 1: Install Battery Tray, Bolt & Nuts
    G02109459Courtesy of GENERAL MOTORS CORP.
