Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the auxiliary battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery)  or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) .
  2. Unsnap the auxiliary battery positive cable cap.
  3. Disconnect the auxiliary positive battery cable (1).

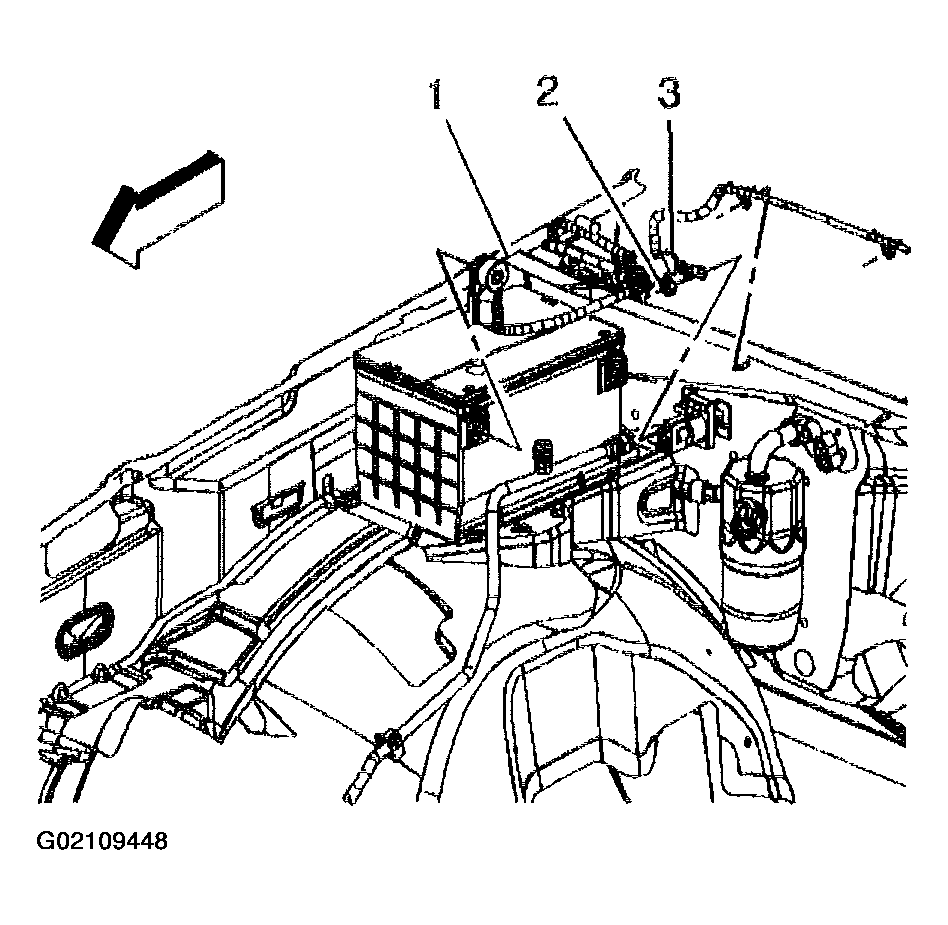

    Fig 1: Disconnect Auxiliary Positive Battery Cable
    G02109448Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery hold down retainer bolt and retainer.
  5. Remove the auxiliary battery.
  6. Remove the battery insulator, if necessary.

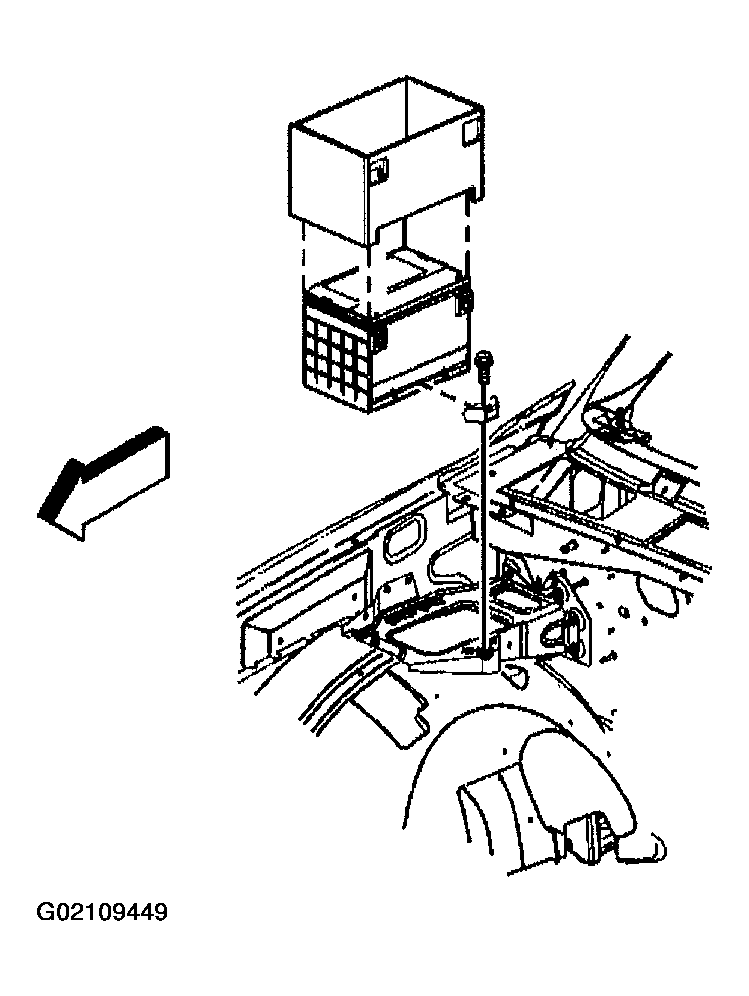

    Fig 2: Remove Battery, Insulator, Retainer & Bolt
    G02109449Courtesy of GENERAL MOTORS CORP.
