Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery insulator, if necessary.
  2. Install the auxiliary battery.
    NOTE: Refer to FASTENER NOTICE .
  3. Install battery hold down retainer and bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

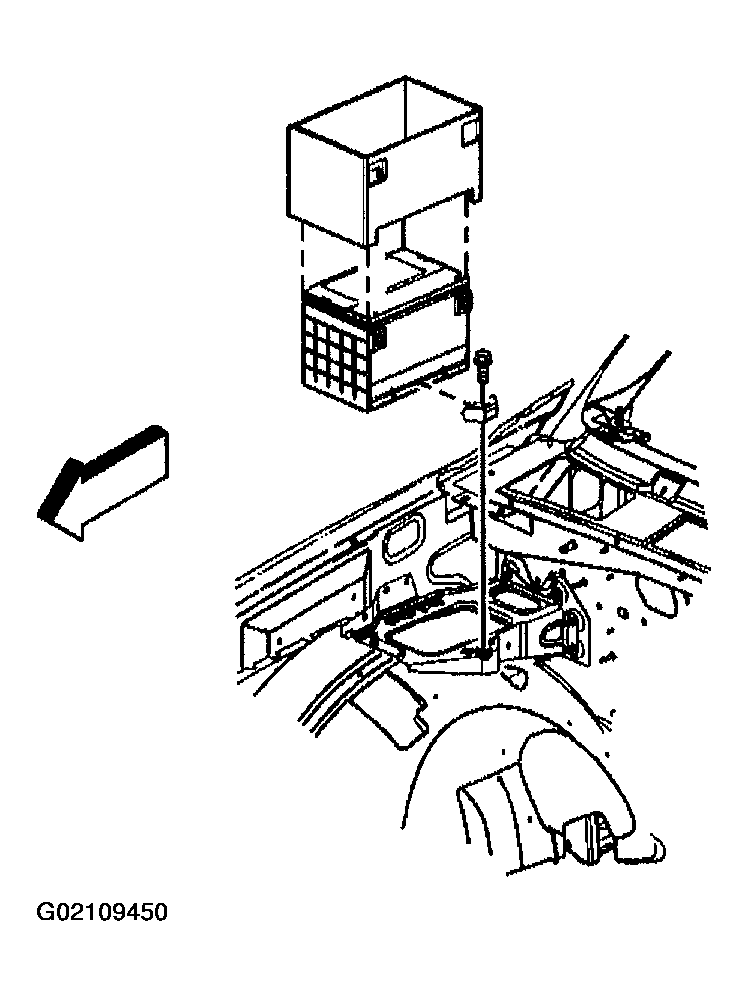

    Fig 1: Install Battery, Insulator, Retainer & Bolt
    G02109450Courtesy of GENERAL MOTORS CORP.
  4. Connect the auxiliary positive battery cable (1).

    Tighten

    Tighten the bolt to 17 N.m (13 lb ft).

  5. Snap the auxiliary positive battery cable cap closed.
  6. Connect the auxiliary battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery)  or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) .

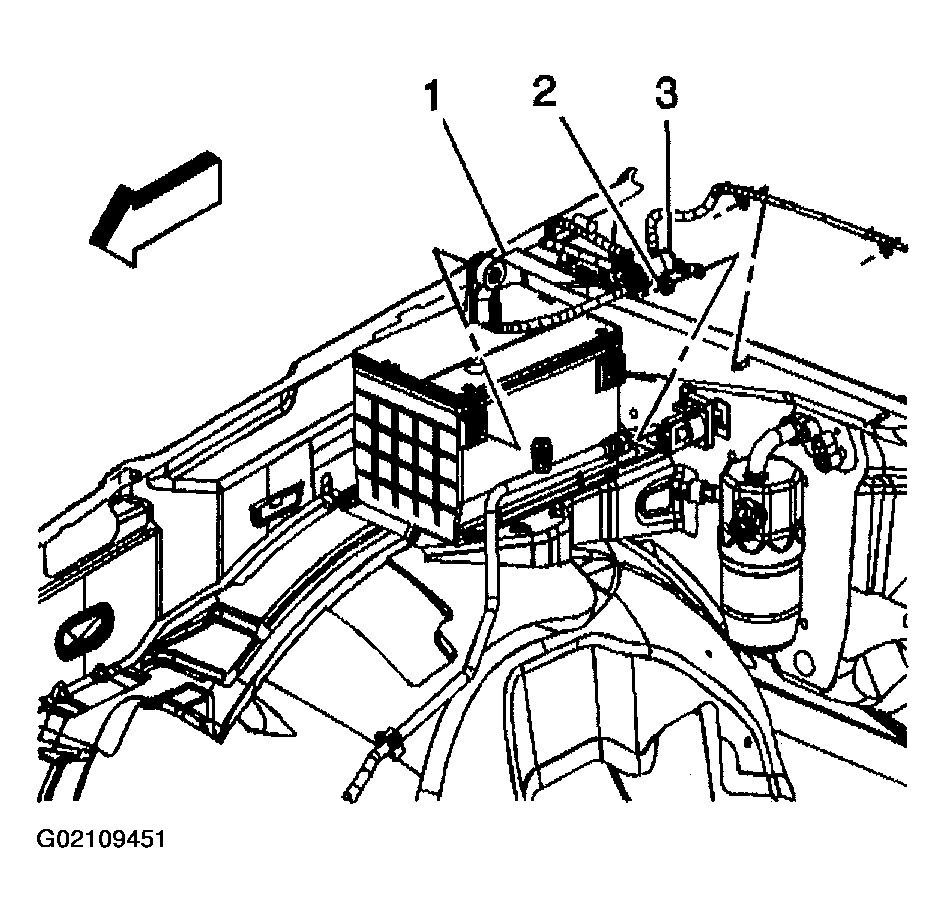

    Fig 2: Connect Auxiliary Positive Battery Cable
    G02109451Courtesy of GENERAL MOTORS CORP.
