Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the auxiliary battery. Refer to Battery Replacement - Auxiliary .
  2. Unclip the mega fuse from the auxiliary battery tray.
  3. Remove the auxiliary positive cable to relay nut (2).
  4. Remove the auxiliary battery positive cable.

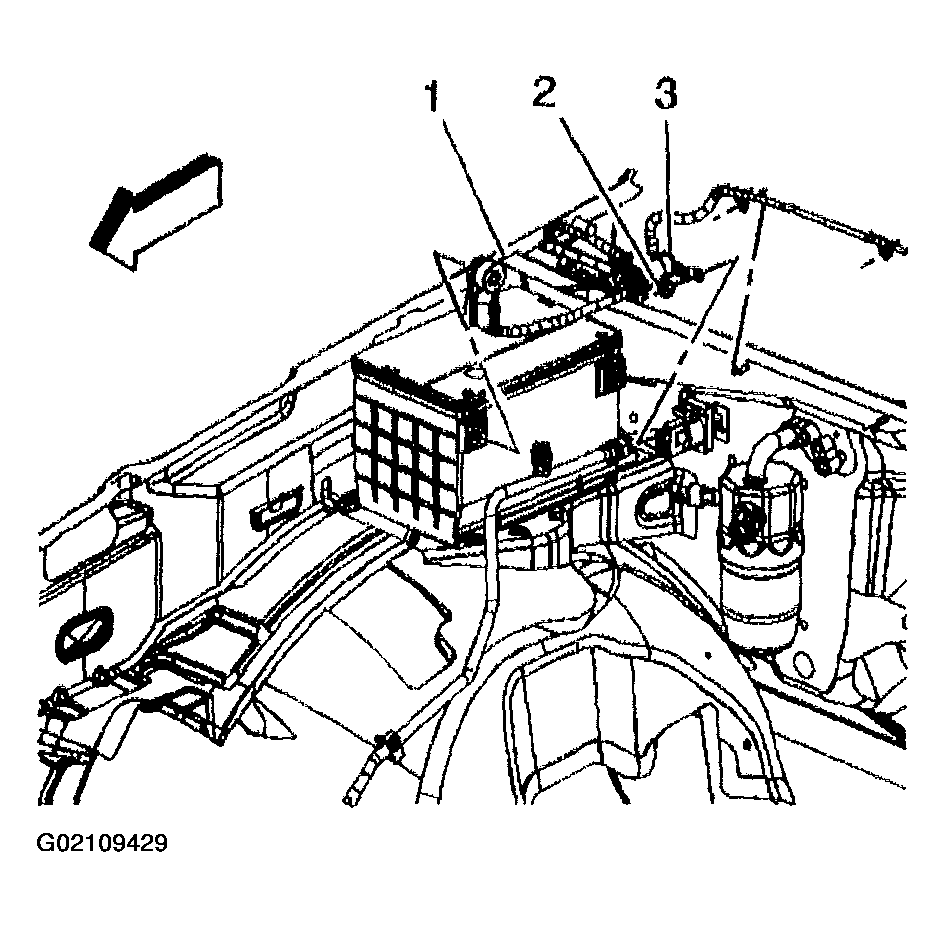

    Fig 1: Remove Auxiliary Positive Cable To Relay Nut
    G02109429Courtesy of GENERAL MOTORS CORP.
