Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary battery positive cable.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the auxiliary positive cable to relay nut (2).

    Tighten

    Tighten the nut to 9 N.m (80 lb in).

  3. Clip the mega fuse to the auxiliary battery tray.
  4. Install the auxiliary battery. Refer to Battery Replacement - Auxiliary .

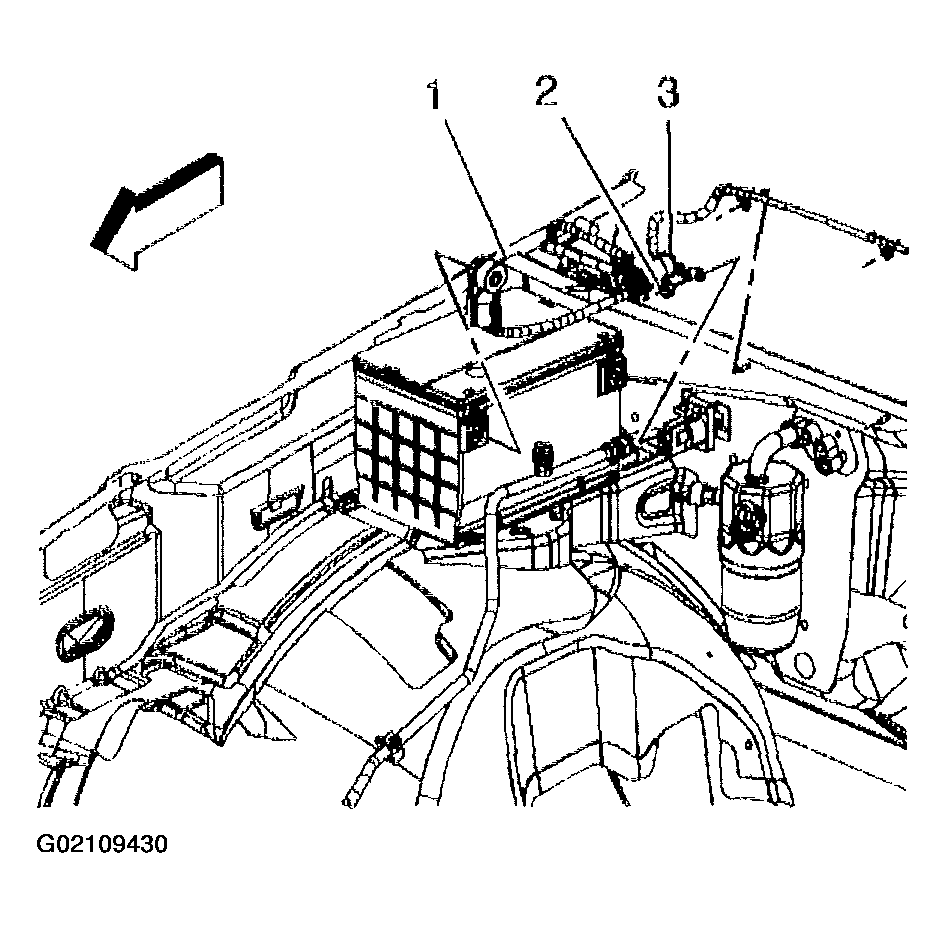

    Fig 1: Install Auxiliary Positive Cable To Relay Nut
    G02109430Courtesy of GENERAL MOTORS CORP.
