Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the auxiliary battery cable to the starter.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the starter lead nut.

    Tighten

    Tighten the nut to 9 N.m (80 lb in).

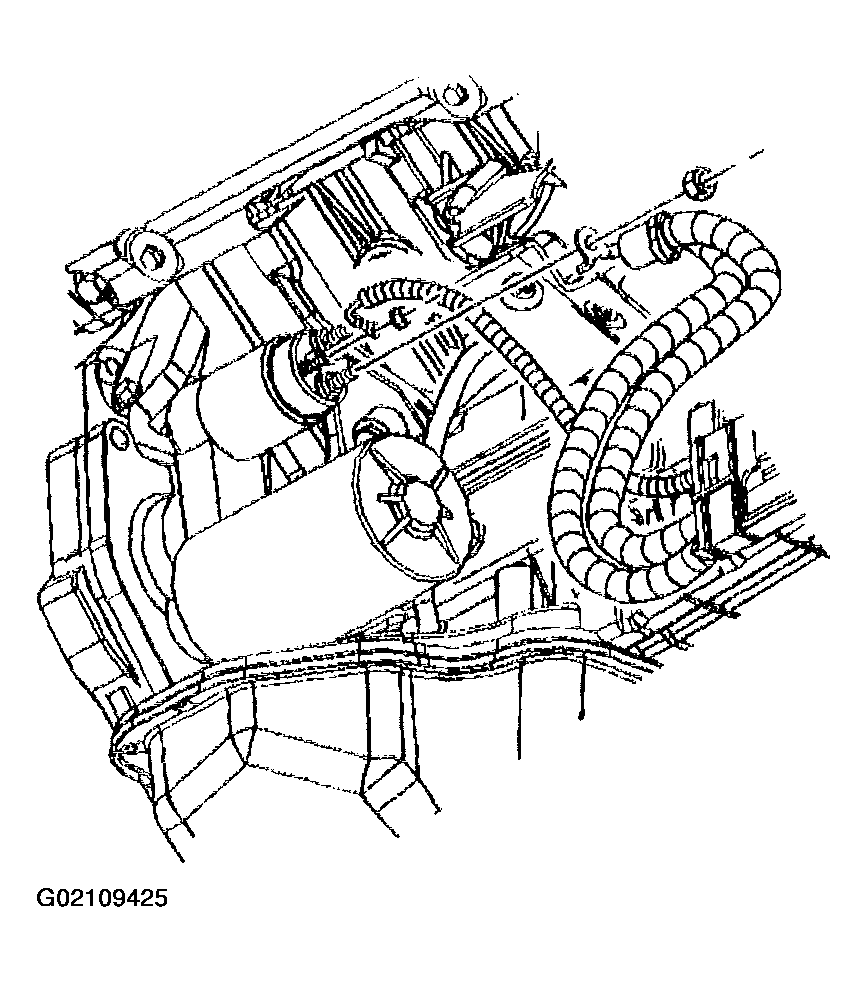

    Fig 1: Install Starter Lead Nut
    G02109425Courtesy of GENERAL MOTORS CORP.
  3. Install the auxiliary battery cable to the retainer.
  4. Install the retainer and nut.

    Tighten

    Tighten the nut to 12 N.m (106 lb in).

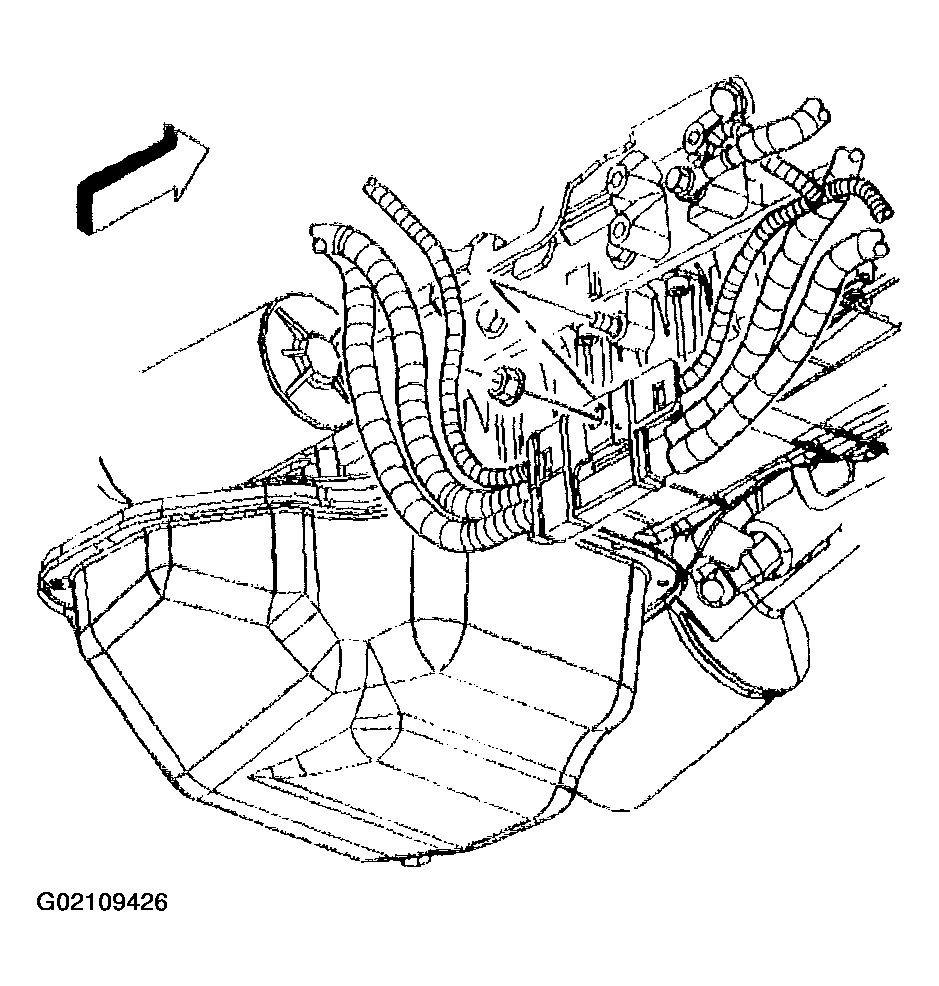

    Fig 2: Install Battery Cable, Retainer & Nut
    G02109426Courtesy of GENERAL MOTORS CORP.
  5. Install the auxiliary battery negative cable bolt.

    Tighten

    Tighten the bolt to 34 N.m (25 lb ft).

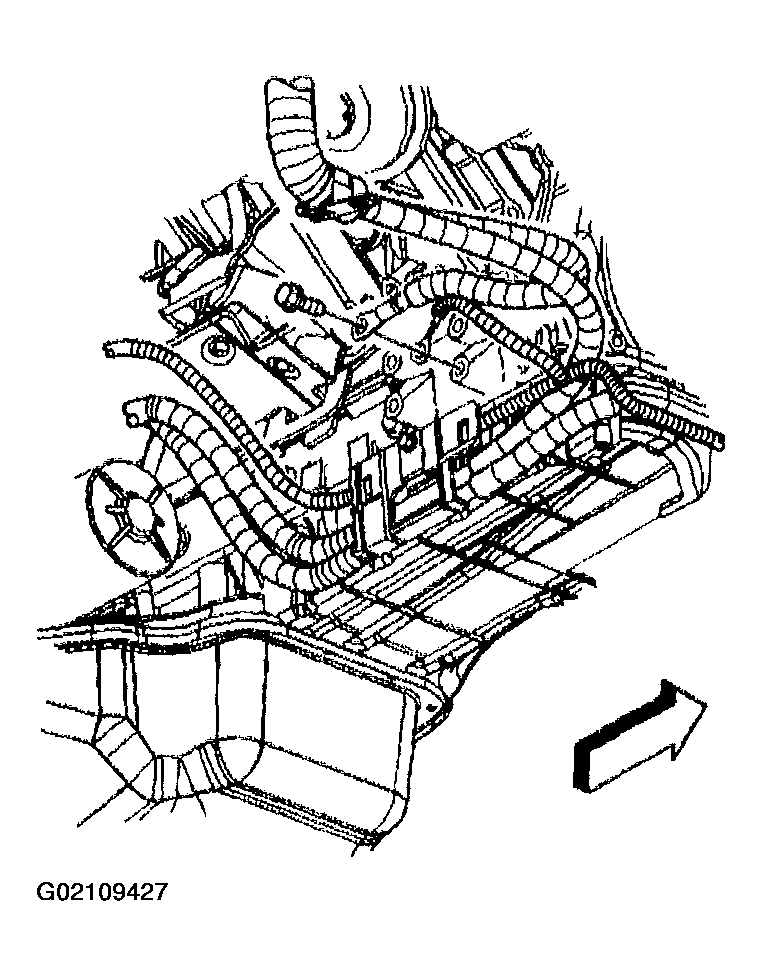

    Fig 3: Install Auxiliary Battery Negative Cable Bolt
    G02109427Courtesy of GENERAL MOTORS CORP.
  6. Install the auxiliary battery positive cable.
  7. Tighten the auxiliary battery positive cable.

    Tighten

    Tighten the bolt to 17 N.m (13 lb ft).

  8. Connect the auxiliary battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery)  or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) .

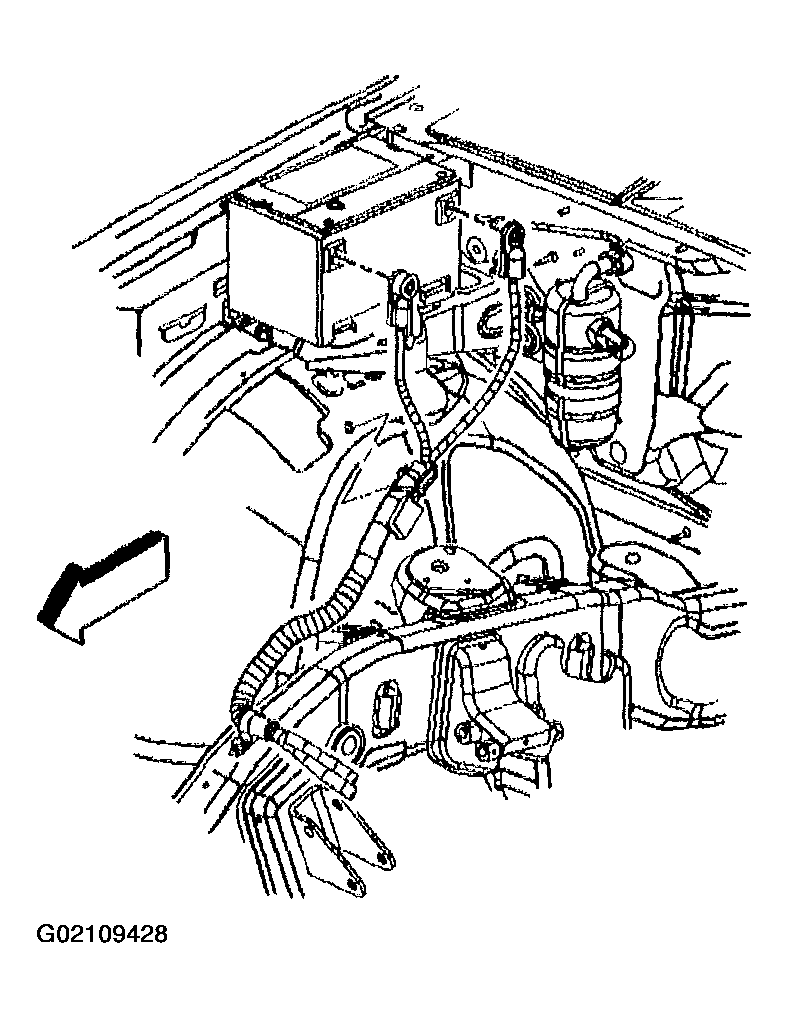

    Fig 4: Install Auxiliary Battery Positive Cable
    G02109428Courtesy of GENERAL MOTORS CORP.
