Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the auxiliary battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery)  or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) .
  2. Remove the auxiliary battery cable clips from the fender wheelhouse inner panel.
  3. Remove the clip for the auxiliary battery cables on the frame.
  4. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING .

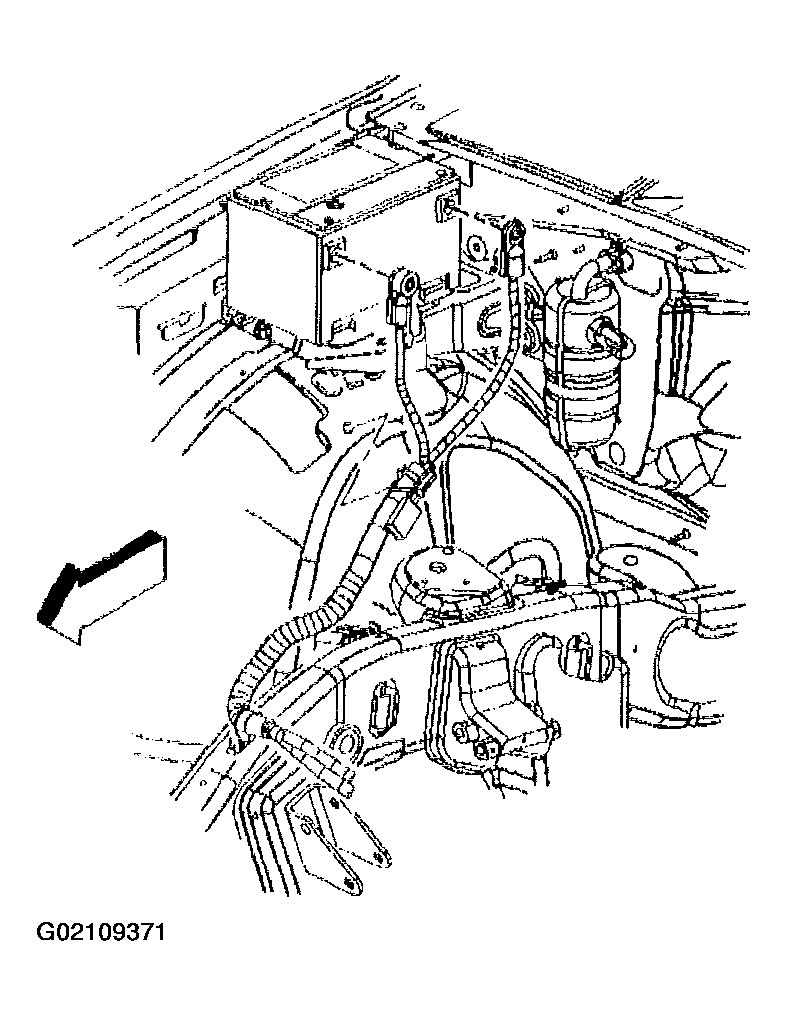

    Fig 1: Remove Auxiliary Cable Clips From Fender Wheelhouse
    G02109371Courtesy of GENERAL MOTORS CORP.
  5. Remove the auxiliary battery negative cable bolt.

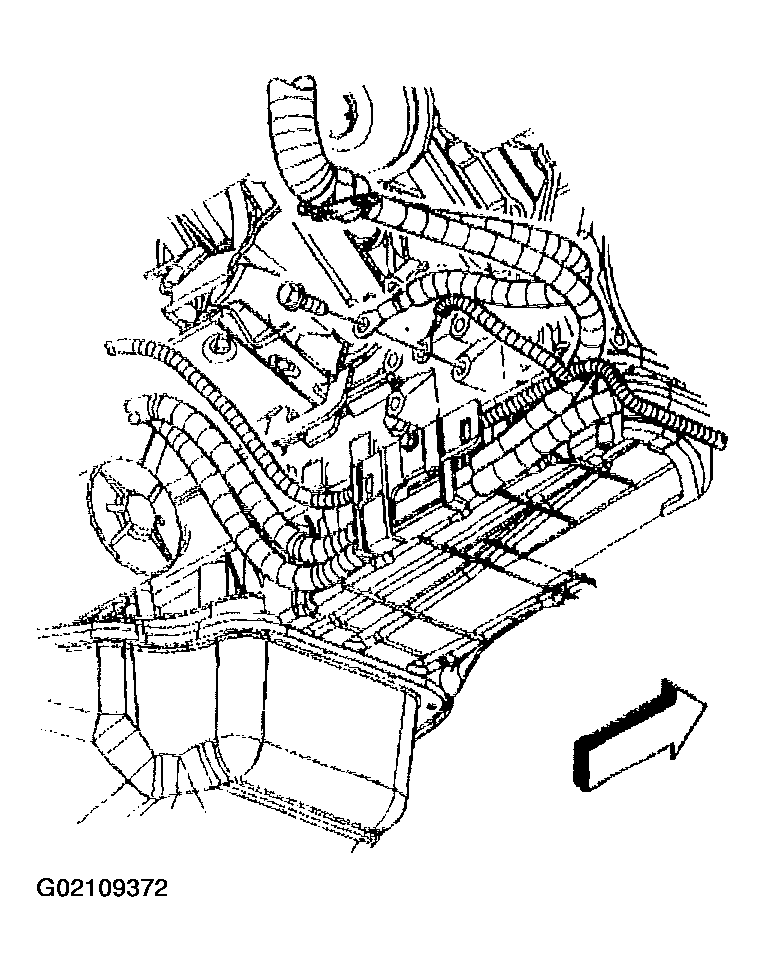

    Fig 2: Remove Auxiliary Battery Negative Cable Bolt
    G02109372Courtesy of GENERAL MOTORS CORP.
  6. Remove the battery cable retainer nut.
  7. Remove the auxiliary battery cable from the retainer.

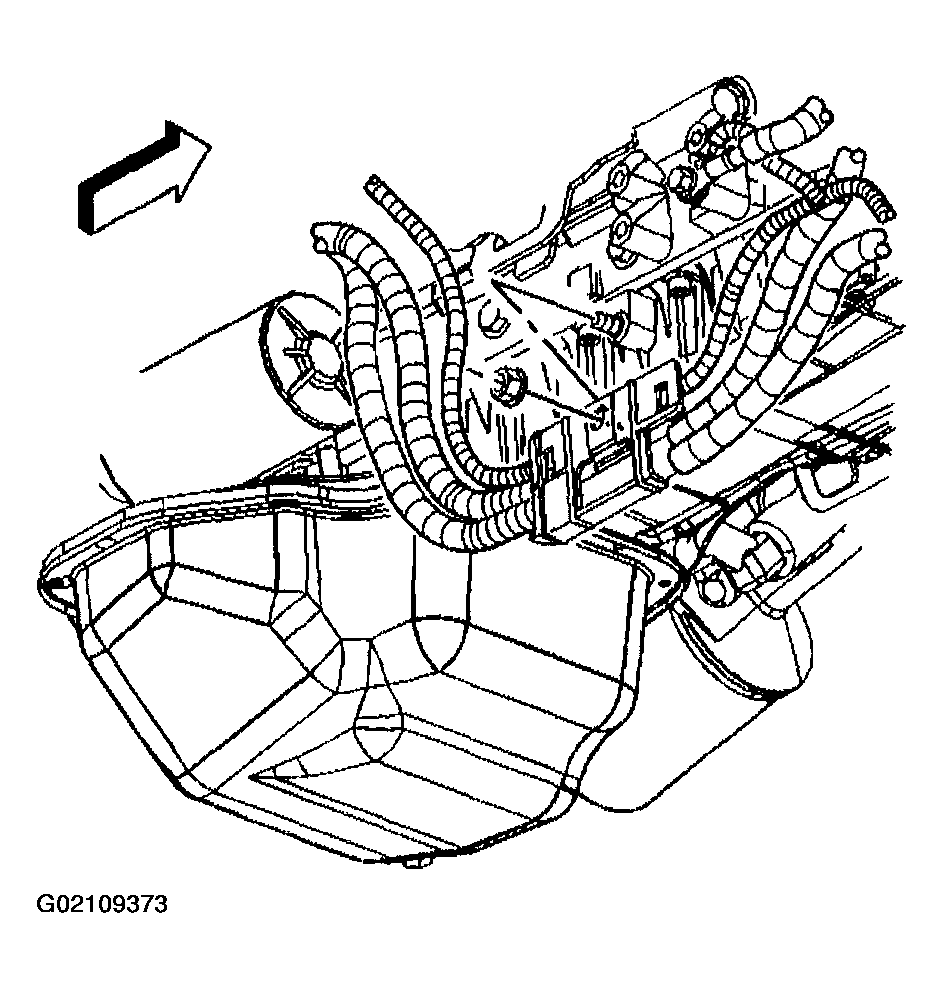

    Fig 3: Remove Battery Cable Retainer Nut
    G02109373Courtesy of GENERAL MOTORS CORP.
  8. Remove the starter lead nut.
  9. Remove the auxiliary battery cable from the vehicle.

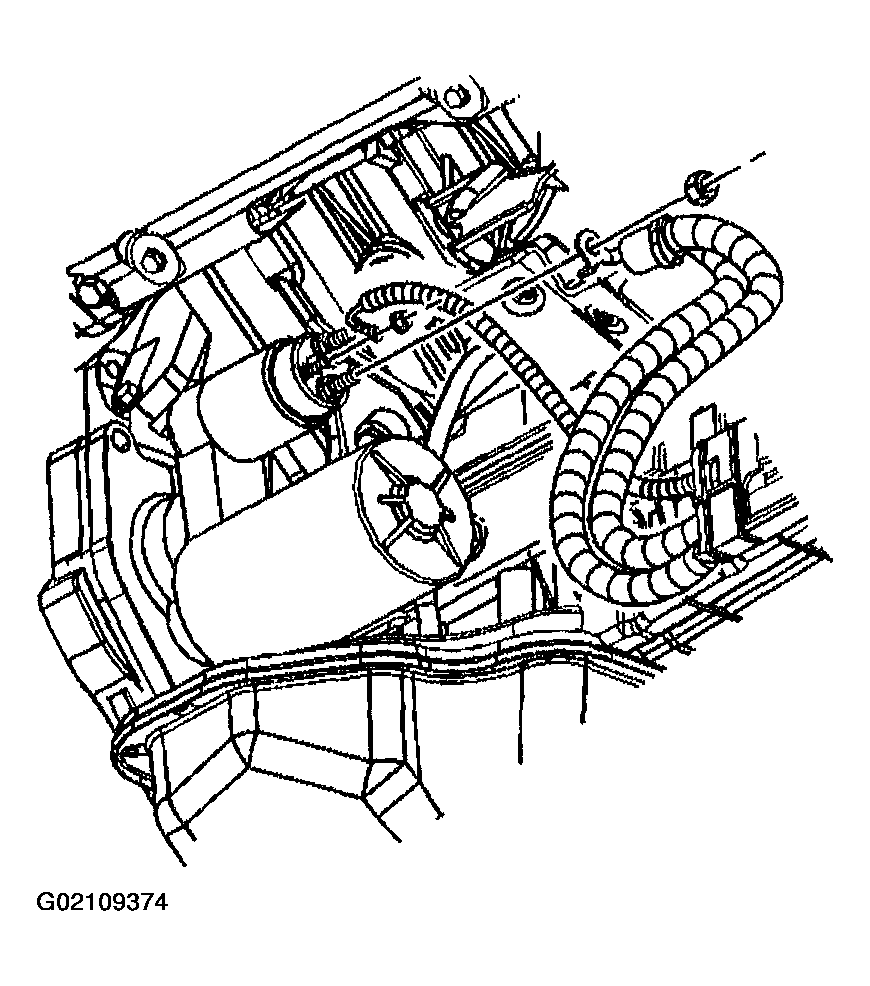

    Fig 4: Remove Starter Lead Nut
    G02109374Courtesy of GENERAL MOTORS CORP.
