Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery)  or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) .
  2. Remove the battery cable bracket bolt and bracket from the power steering pump.

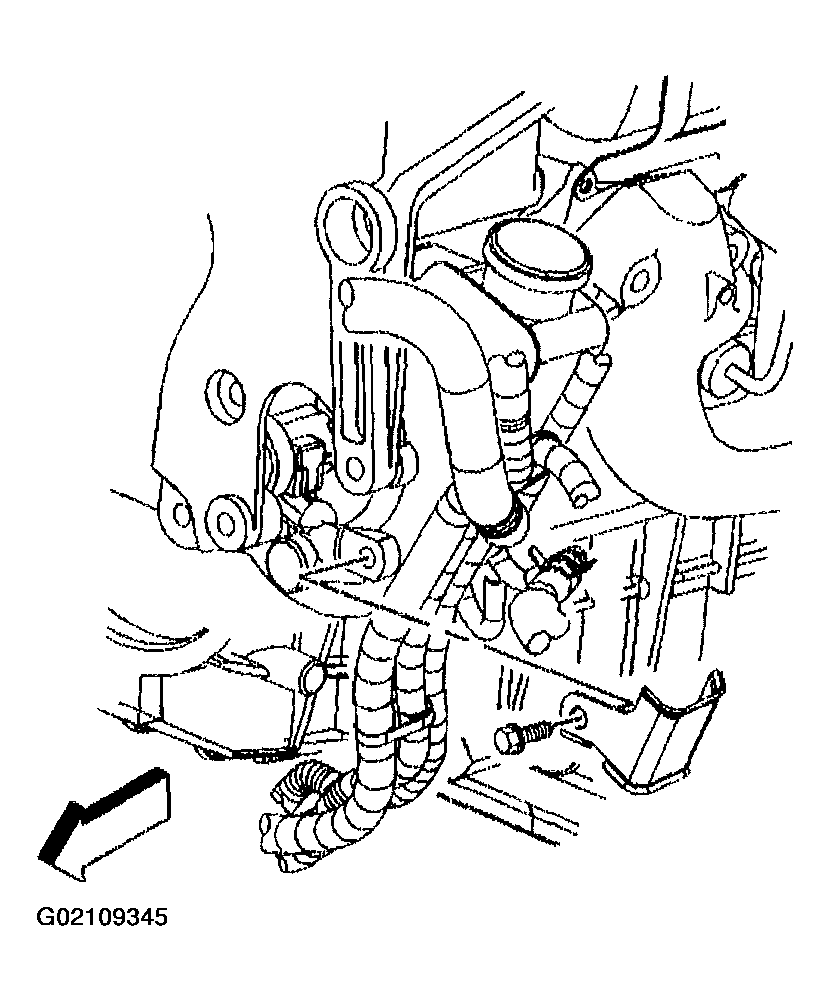

    Fig 1: Remove Battery Cable Bracket & Bolt
    G02109345Courtesy of GENERAL MOTORS CORP.
  3. If equipped, disconnect the accessory power fuse block front wiring harness electrical connector from the negative cable connector.
  4. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING .

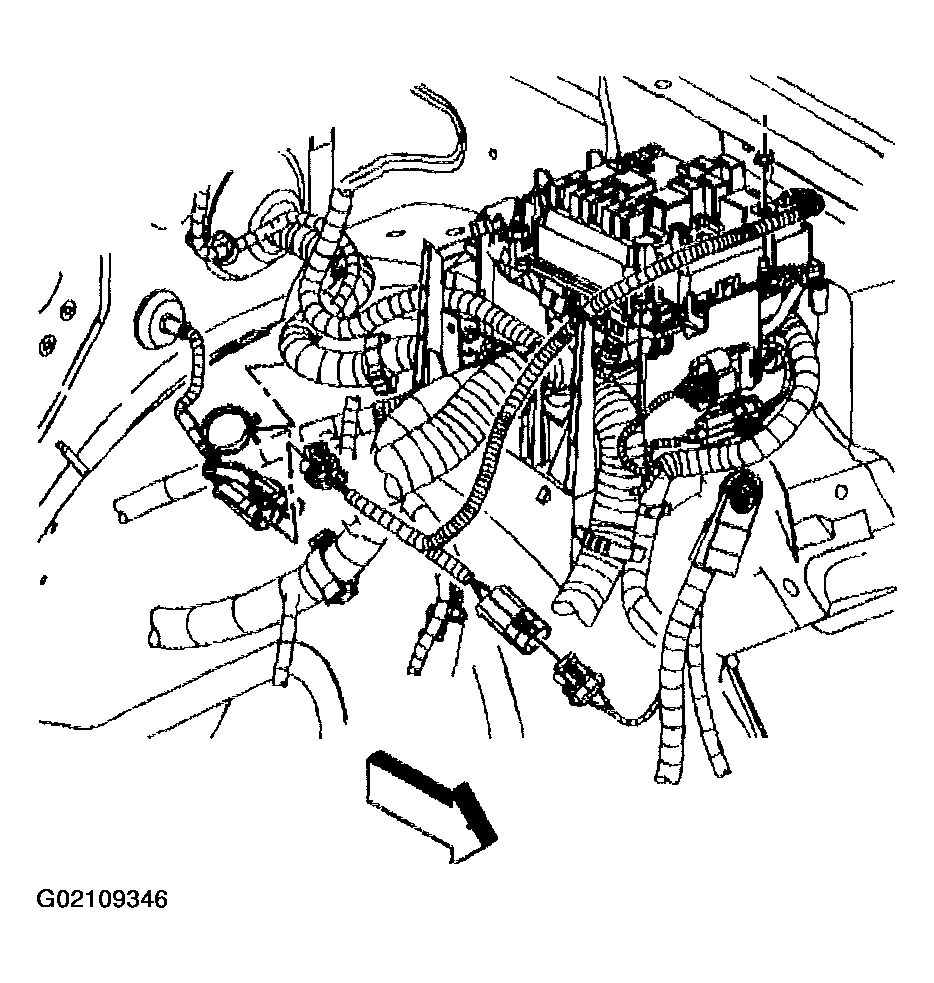

    Fig 2: Disconnect Accessory Power Fuse Block Front Wiring Harness Electrical Connector
    G02109346Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine wiring harness ground/negative battery cable bolt (1).
  6. Remove the negative battery cable from the battery cable clip.

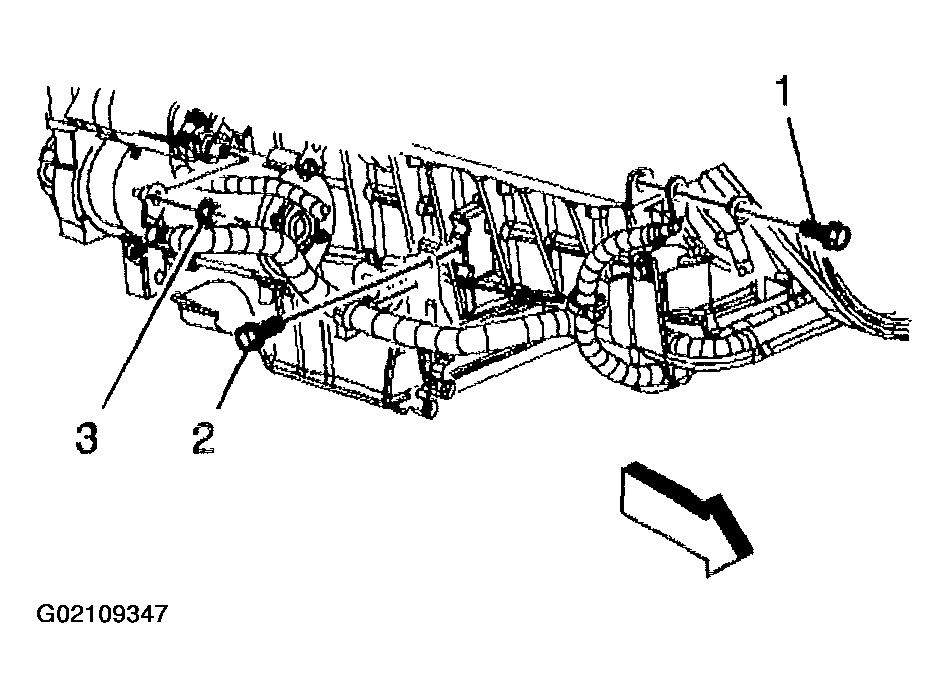

    Fig 3: Remove Engine Wiring Harness Ground/Negative Battery Cable Bolt
    G02109347Courtesy of GENERAL MOTORS CORP.
  7. Remove the forward lamp wiring harness ground/negative cable bolt (3).
  8. Remove the forward lamp wiring harness from the frame.
  9. Remove the negative battery cable from the cable channel.
  10. Lower the vehicle.
  11. Remove the negative battery cable.

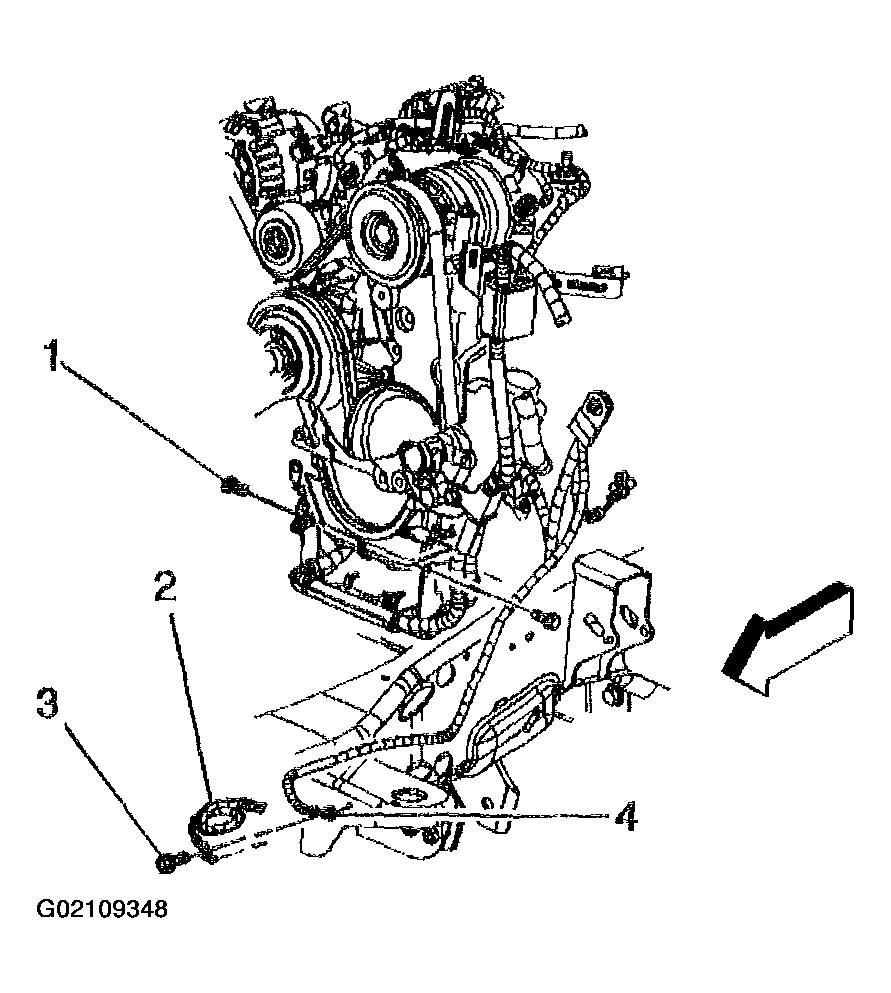

    Fig 4: Remove Forward Lamp Wiring Harness Ground/Negative Cable Bolt
    G02109348Courtesy of GENERAL MOTORS CORP.
