Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Record the customer's pre-set radio stations.
  2. Turn off all the lamps and accessories.
  3. Turn the ignition OFF.
  4. Loosen the negative battery cable bolt.
  5. Remove the negative battery cable.

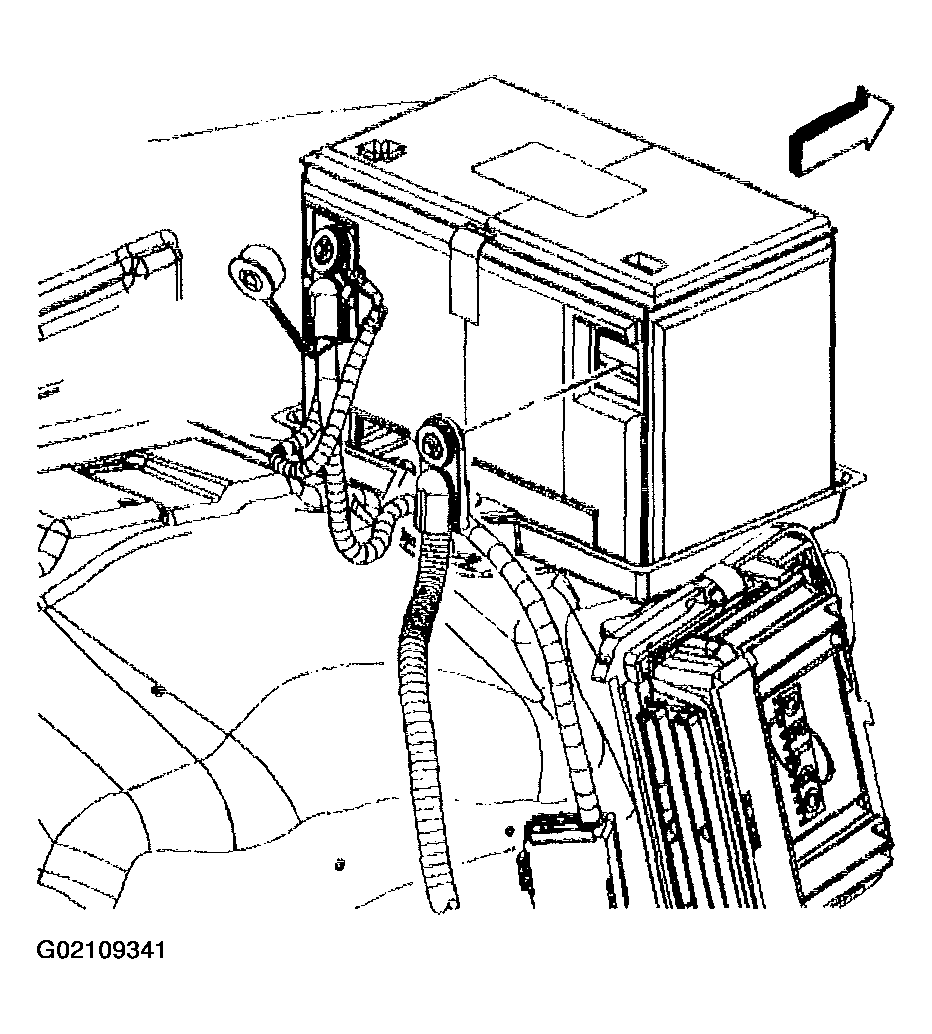

    Fig 1: Remove Negative Battery Cable
    G02109341Courtesy of GENERAL MOTORS CORP.
